10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment

Minimum Order Quantity : 1 Price : negotiable
Packaging Details : standard wooden case Delivery Time : 50 days after the payament
Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A Supply Ability : 10 set per month
Place of Origin: Henan Brand Name: Lewin
Certification: ISO CE Model Number: LHO-50-10

Detail Information

Neme Of Product: Supercritical Extraction Machine Essential Oil Extraction Equipment Capacity Of Essential Oil Extraction Equipment: 5L+5L
Voltage Of Essential Oil Extraction Equipment: 220V/380V/customized Power Of Essential Oil Extraction Equipment: 18KW
Application Of Essential Oil Extraction Equipment: Rose Essential Oil Extract Working Pressure Of Essential Oil Extraction Equipment: 50mpa
Dimesion Of Essential Oil Extraction Equipment: 2800*2500*2000mm Usage Of Essential Oil Extraction Equipment: Extract Different Essential Oil
Key Word: Essential Oil Extraction Equipment Materila Of Essential Oil Extraction Equipment: 304 Stainless Steel
High Light:

10 Liter Supercritical Extraction Machine

,

Essential Oil Supercritical Extraction Machine

,

10 Liter Oil Extraction Equipment

Product Description

Supercritical Extraction Machine Essential Oil Extraction Equipment

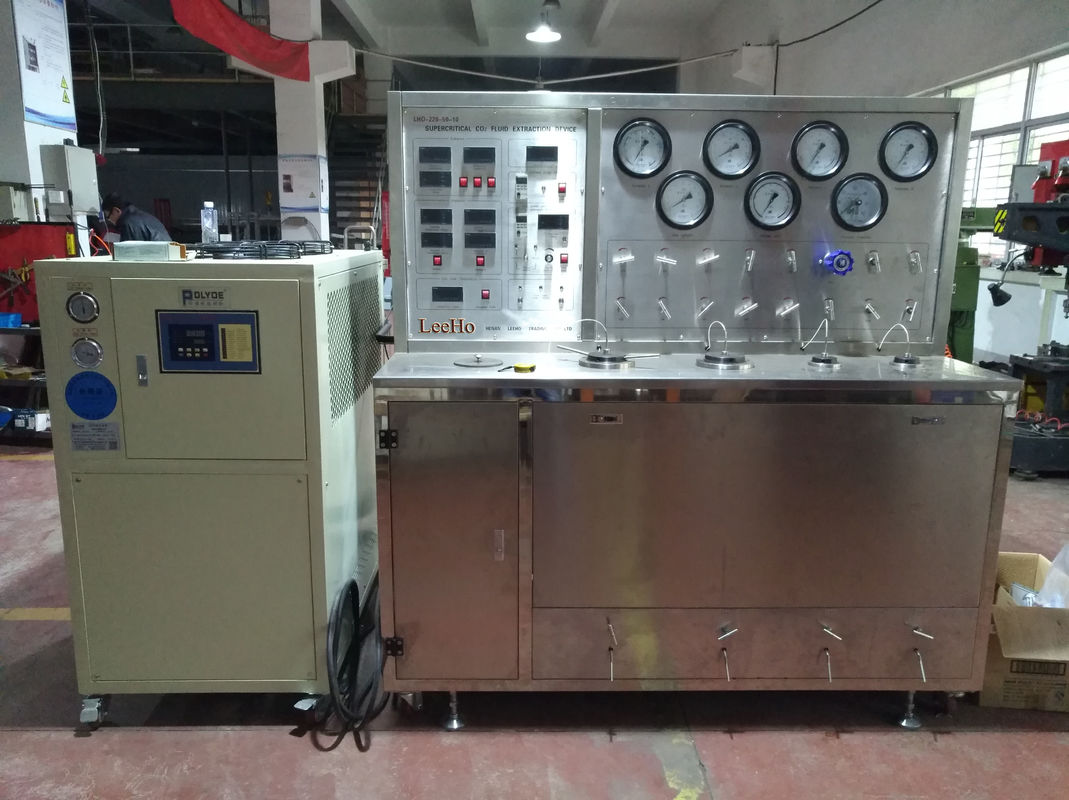

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 0

the above picture show you 5L+5L equipment

Detail instruction of Essential Oil Extraction Equipment

Supercritical extraction technology is a green separation technology emerging in the world. So supercritical fluid refers to a fluid whose thermodynamic state is above the critical point (Pc, Tc). The critical point is the point where the gas-liquid interface just disappears. Supercritical fluid has physical and chemical properties, and its density is close to that of liquid. It is close to gas, but has the characteristics of large diffusion coefficient, low viscosity and dielectric constant. It has better separation effect and is an excellent solvent.



Supercritical extraction refers to the contact between the solvent in the extraction tank and the extract at a suitable temperature under high pressure, and the solute diffuses into the solvent, and then the operating conditions are changed in the separator to separate the dissolved substances.



I. Detail instractuon of essential oil extraction machine main  parts:



1. This Co2 Extraction Machine mainly consists of separation kettle, fine distillation column, extraction kettle, CO2 high pressure pump, entrainer pump, refrigeration system, heat exchange system, purifying system, pressure stabilizing system of extraction kettle, CO2 tank, flow meter, temperature and pressure control( protection) system etc.



2. Exraction kettle: 0.5L, 1L, 2L, 5L/50Mpa, 10L, 24L/40Mpa, 50-200L/32Mpa. For both solid and liquid, circulating heating with water jacket, temperature controllable..



Separation kettle: 0.3-10L/30Mpa, 50-100L/16-22Mpa, Equipped with water jacket circulating heating and adjustable temperature.



3. Heat exchange and temperature control system: The digital display double-screen is used to control the remperature of water bath and to measure the temperature of CO2 fluid with the accuracy of temperature control at ±1℃. the heat exchange and temperature control system are equipped for extraction kettle, separation kettle and fine distillation column respectively to control the remperature of water circulation at -85 degree and the temperature of oil circulation at -150 degree.



4. Fine distillation column: According to technical requirements, 4 sections, 6 sections, and 8 sections can be provided for temperature control. Customers can choose corresponding fillings and loads according to technical requirements.



5: High pressure pump: 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulation. 400L/40Mpa.h three-plunger frequency-modulating, the pump head with cooling system.



6. Cooling system: equipped with semi-sealed or full-sealed compressor meet technological requirement.



7: Others: Voltage supply, three-phase four-wire 380V / 50HZ power supply and food grade ≥99.5% CO2 are provided by customer.



II. Main technical parameter of essential oil extraction machine



Type Power(KW) Design Pressure(Mpa) Temperature(°c) Floor Area(m²) Height(m)
0.5L 5 50 Home temperature ˜ 85°c 1.5 1.8
1L 8 2 1.8
5L 16 4 1.8
10L 25 8 2
20L 40 40 10 4
24L 40 10 4
24L*2 45 12 4
24L*4 60 15 4
Description

1. All the types have two separators;

2. All parts of device are manufactured with 304 stainless steel;

3. Quick-open structure of extractor: Extractor cover can be opened as soon as gas is given out, sealing material doesn’t swelling and can be used recyclable. Which saves time and enhances utilization ratio of device.

Type Design Pressure(Mpa) Design Temperature(°c) Design Flow(L/H) Floor Area(m²) Height(m)
50L*3 35-55 60-90 600 ≤80 ≤6
100L*3 1000 ≤130 ≤7
200L*3 1500 ≤200 ≤9
300L*3 2500 ≤250 ≤9
Description All the types are 3 extractions and 2 separate system, don’t contain countercurrent extraction and extraction tower, all purchased part are famous brands home and abroad, pressure vessels contacting with CO2 is packing up structure, the material of inner is 304 stainless steel, PLC auto and manual double control system, with tail-gas recover system and electro-heating system.
More than 400L*3 can be customized



Features of the oil extraction machine:

1. Supercritical extraction can be extracted at close to room temperature (35-40°C) and under the envelope of CO2 gas, which effectively prevents the oxidation and dissipation of heat-sensitive substances. Therefore, the effective components of the extract are kept in the extract, and the substances with high boiling point, low volatility, and easy pyrolysis can be extracted at a temperature far below its boiling point;



2. The use of supercritical extraction is a clean extraction method. Since the whole process does not use organic solvents, there are no residual solvents in the extract, thus preventing the existence of harmful substances to the human body and pollution to the environment during the extraction process, ensuring 100% % Pure naturalness;



3. Extraction and separation are combined into one. When the saturated dissolved CO2 fluid enters the separator, the CO2 and the extract quickly become two-phase (gas-liquid separation) due to pressure drop or temperature change, and they are separated immediately. Not only the extraction efficiency is high, but also the energy consumption is low, which improves the production efficiency and reduces the cost;



4. CO2 is an inactive gas, no chemical reaction occurs during the extraction process, and it is a non-flammable gas, odorless, odorless, non-toxic, and very safe;



5. CO2 gas is cheap, high in purity, easy to prepare, and can be reused in production, thereby effectively reducing costs;



6. Pressure and temperature can be used to adjust the parameters of the extraction process. By changing the temperature and pressure to achieve the purpose of extraction, the pressure can also be fixed by changing the temperature to separate the substances; on the contrary, the temperature is fixed, and the extract is reduced by reducing the pressure. Separation, so the process is simple and easy to master, and the extraction speed is fast.



III. Detail Pictures of essential oil extraction machine

The equipment is widely used in the fields of biology, pharmacy, food, health care products, flavors and fragrances, etc.

This equipment is used to extract various essential oils, rose essential oil, peony flower seed oil, ginger oil, grape seed oil, and more CBD oil, your oil yield can reach 99%, and it is pure oil:

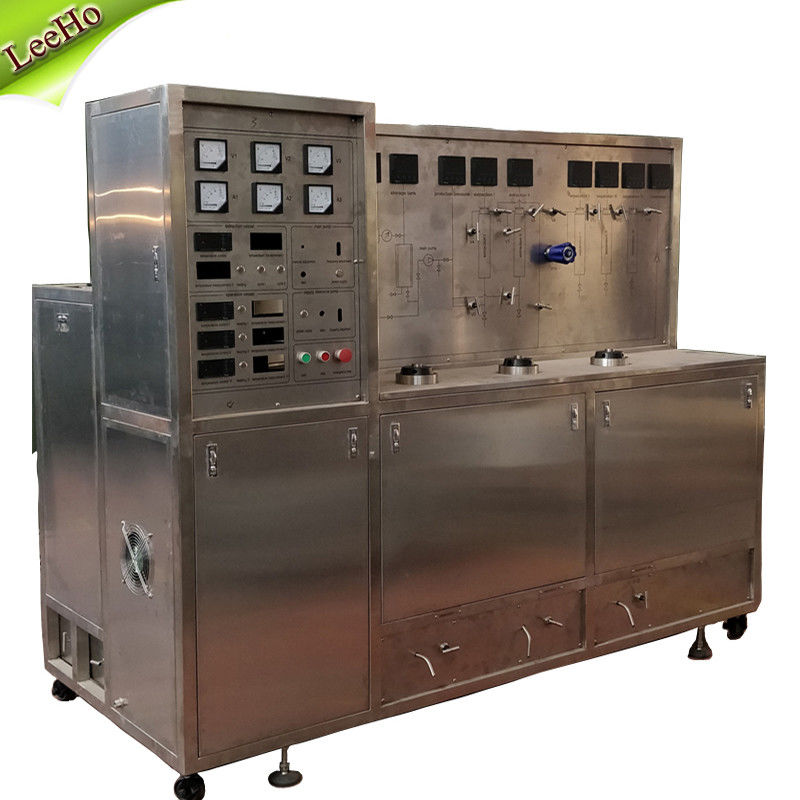

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 1



10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 2

This is high pressure pump of essential oil extraction machine

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 3

The above picture is show Kettles of the machine of essential oil extraction machine

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 4

The above picture is show Control system and the gages of essential oil extraction machine

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 5

The above picture is show Detail parts display of essential oil extraction machine



IV. Packing and shipping

1. Export standard wooden boxes are used to pack the machine to protect the machine during transportation.

2. High-quality shipping agency companies in major ports in China, can arrange to send the goods fast, safe with comptitive price

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 6



The above picture is show Loading to the container of essential oil extraction machine



V. Our service



10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 7

We accept customizable for different customer requires.

Our factory is responsible for failures caused by the machine itself and quality reasons. You are responsible for any other obstacles caused by operational errors, human problems, etc. Mchine guarantee is 12 month.



VI. About us



10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 8

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 9

10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment 10

We are a professional machinery supplier in China. We can offer you different solutions depending on your plan to help you make the right decision. Your ideas are our actions. Machine quality is our life, so we focus on every details of machine, so that can provide the best quality machine to every customer.
