Detail instruction of liquid Supercritical CO2 Extraction Device
This Co2 Extraction Machine mainly consists of separation kettle, fine distillation column, extraction kettle, CO2 high pressure pump, entrainer pump, refrigeration system, heat exchange system, purifying system, pressure stabilizing system of extraction kettle, CO2 tank, flow meter, temperature and pressure control( protection) system etc.
I. Detail instractuon of the main Co2 oil extraction machine parts:
1. Heat exchange and temperature control system: the heat exchange and temperature control system are equipped for extraction kettle, separation kettle and fine distillation column respectively to control the remperature of water circulation at -85 degree and the temperature of oil circulation at -150 degree. The digital display double-screen is used to control the remperature of water bath and to measure the temperature of CO2 fluid with the accuracy of temperature control at ±1℃.
2.. Exraction kettle: 0.5L, 1L, 2L, 5L/50Mpa, 10L, 24L/40Mpa, 50-200L/32Mpa, dual purpose for solid and liquid, quipped with the water jacket for circulated heating with adjustable temperature.
3. Separation kettle: 0.3-10L/30Mpa, 50-100L/16-22Mpa, equipped with the water jacket for circulated heating with adjustable temperature.
4. Fine distillation column: According to the technological requirement, 4-section, 6-section or 8-section temperature control are available and relative stuffing can be selected and loaded by customer to technological requirement.
5: High pressure pump: 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulation. 400L/40Mpa.h three-plunger frequency-modulating, the pump head with cooling system.
6. Cooling system: equipped with semi-sealed or full-sealed compressor meet technological requirement.
7: Others: Voltage supply, three phase four wire power with 380V/50HZ and CO2 with foodstuff grade≥99.5% are prepared by customer self.
II. Main technical parameter of Co2 oil extraction machine:
| Type | Power(KW) | Design Pressure(Mpa) | Temperature(°c) | Floor Area(m²) | Height(m) | |||
| 0.5L | 5 | 50 | Home temperature ˜ 85°c | 1.5 | 1.8 | |||
| 1L | 8 | 2 | 1.8 | |||||
| 5L | 16 | 4 | 1.8 | |||||
| 10L | 25 | 8 | 2 | |||||
| 20L | 40 | 40 | 10 | 4 | ||||
| 24L | 40 | 10 | 4 | |||||
| 24L*2 | 45 | 12 | 4 | |||||
| 24L*4 | 60 | 15 | 4 | |||||
| Description |
1. All the types have two separators; 2. All parts of device are manufactured with 304 stainless steel; 3. Quick-open structure of extractor: Extractor cover can be opened as soon as gas is given out, sealing material doesn’t swelling and can be used recyclable. Which saves time and enhances utilization ratio of device. |
|||||||
| Type | Design Pressure(Mpa) | Design Temperature(°c) | Design Flow(L/H) | Floor Area(m²) | Height(m) | |||
| 50L*3 | 35-55 | 60-90 | 600 | ≤80 | ≤6 | |||
| 100L*3 | 1000 | ≤130 | ≤7 | |||||
| 200L*3 | 1500 | ≤200 | ≤9 | |||||
| 300L*3 | 2500 | ≤250 | ≤9 | |||||
| Description | All the types are 3 extractions and 2 separate system, don’t contain countercurrent extraction and extraction tower, all purchased part are famous brands home and abroad, pressure vessels contacting with CO2 is packing up structure, the material of inner is 304 stainless steel, PLC auto and manual double control system, with tail-gas recover system and electro-heating system. | |||||||
| More than 400L*3 can be customized | ||||||||
III. Detail Pictures of Co2 oil extraction machine:
This equipment is used to extract various essential oils, rose essential oil, peony flower seed oil, ginger oil, grape seed oil, and more CBD oil, your oil yield can reach 99%, and it is pure oil:
The above picture is show the high pressure pump
The above picture is show Kettles of the machine

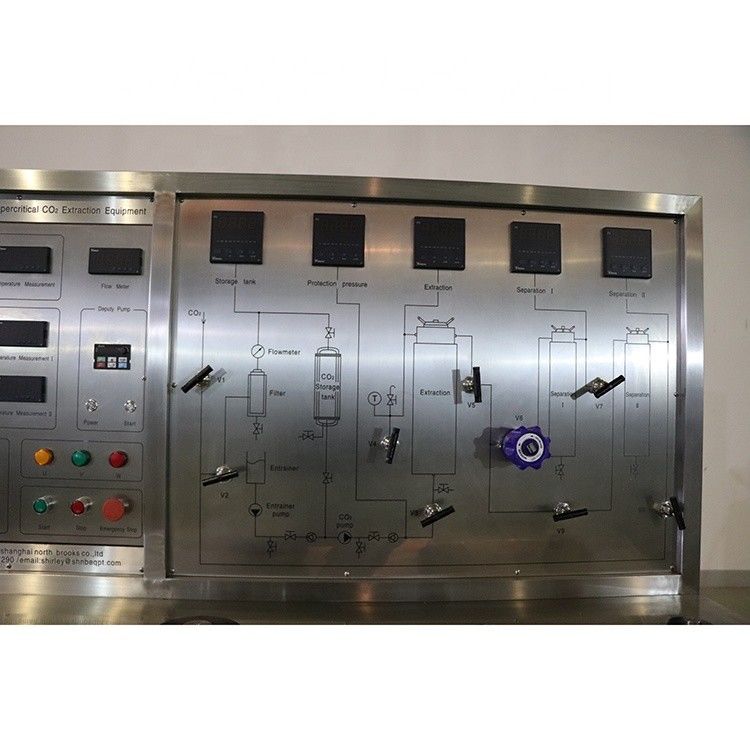

The above picture is show Control system and the gages
The above picture is show Detail parts display.
