10 Liter Supercritical Extraction Machine Essential Oil Extraction Equipment
Contact Person : Waley Pan
Phone Number : 15617821227
WhatsApp : +8613526696760
|Minimum Order Quantity :||1||Price :||negotiable|
|Packaging Details :||standard wooden case||Delivery Time :||50 days after the payament|
|Payment Terms :||T/T, L/C, Western Union, MoneyGram, D/P, D/A||Supply Ability :||10 set per month|
|Place of Origin:||Henan||Brand Name:||Lewin|
|Certification:||ISO CE||Model Number:||LHO-50-10|
|Material:||304 Stainless Steel||Capacity:||5L+5L|
|Working Pressure:||50Mpa||Application:||Essential Oil Extraction|
|Dimesion:||2800x2500x2000mm||Key Word:||Supercritical Co2 Extraction Machine|
co2 extraction machine,
vegetable oil extraction machine
Detail instruction of liquid Supercritical CO2 Extraction Device
This device mainly consists of extraction kettle, separation kettle, fine distillation column, CO2 high pressure pump, entrainer pump, refrigeration system, heat exchange system, purifying system, pressure stabilizing system of extraction kettle, CO2 tank, flow meter, temperature and pressure control( protection) system etc.
I. Detail instractuon of the main parts:
1. Exraction kettle: 0.5L, 1L, 2L, 5L/50Mpa, 10L, 24L/40Mpa, 50-200L/32Mpa, dual purpose for solid and liquid, quipped with the water jacket for circulated heating with adjustable temperature.
2. Separation kettle: 0.3-10L/30Mpa, 50-100L/16-22Mpa, equipped with the water jacket for circulated heating with adjustable temperature.
3. Fine distillation column: According to the technological requirement, 4-section, 6-section or 8-section temperature control are available and relative stuffing can be selected and loaded by customer to technological requirement.
4: High pressure pump: 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulation. 400L/40Mpa.h three-plunger frequency-modulating, the pump head with cooling system.
5. Cooling system: equipped with semi-sealed or full-sealed compressor meet technological requirement.
6. Heat exchange and temperature control system: the heat exchange and temperature control system are equipped for extraction kettle, separation kettle and fine distillation column respectively to control the remperature of water circulation at -85 degree and the temperature of oil circulation at -150 degree. The digital display double-screen is used to control the remperature of water bath and to measure the temperature of CO2 fluid with the accuracy of temperature control at ±1℃.
7: Others: Voltage supply, three phase four wire power with 380V/50HZ and CO2 with foodstuff grade≥99.5% are prepared by customer self.
II. Main technical parameter:
|Type||Power(KW)||Design Pressure(Mpa)||Temperature(°c)||Floor Area(m²)||Height(m)|
|0.5L||5||50||Home temperature ˜ 85°c||1.5||1.8|
1. All the types have two separators;
2. All parts of device are manufactured with 304 stainless steel;
3. Quick-open structure of extractor: Extractor cover can be opened as soon as gas is given out, sealing material doesn’t swelling and can be used recyclable. Which saves time and enhances utilization ratio of device.
|Type||Design Pressure(Mpa)||Design Temperature(°c)||Design Flow(L/H)||Floor Area(m²)||Height(m)|
|Description||All the types are 3 extractions and 2 separate system, don’t contain countercurrent extraction and extraction tower, all purchased part are famous brands home and abroad, pressure vessels contacting with CO2 is packing up structure, the material of inner is 304 stainless steel, PLC auto and manual double control system, with tail-gas recover system and electro-heating system.|
|More than 400L*3 can be customized|

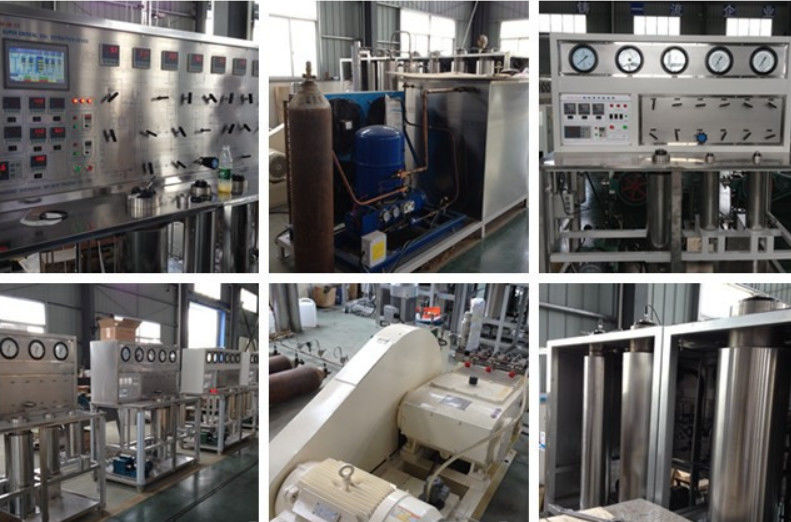

III. Detail Pictures:
Full set 10L Equipment
High pressure pump
Kettles of the machine
Control system and the gages
Detail parts display.
IV. Packing and shipping
We offer the export standard wooden case package for all the device to protect the machine on the shipping way.
We have the good quality shipping agent company at the main port in China, can arrange to send the goods fast, safe with comptitive price
Loading to the container
V. Our service
1. Befor-sale services: we guide clients to choose the best and suitable mchine, provide the advance, energy-saving and practical technological process. At the same time, we are responsible for the planing and design the machine
2. Sale service: Products must be inspected strictly before being sold,clients are invited to simulate and test machine on the spot; in accordance with the agreements stipulated in the contract, and then we are arrange delivery the machine
3. After-sale service: Our company will offer the professional engineer to guide installation,training how to operation the machine. We are confrim that our clients can use the machine well and bring more and more befit to them.
4. We are design and product machines according to the speciall requirement by clients.
5. Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
