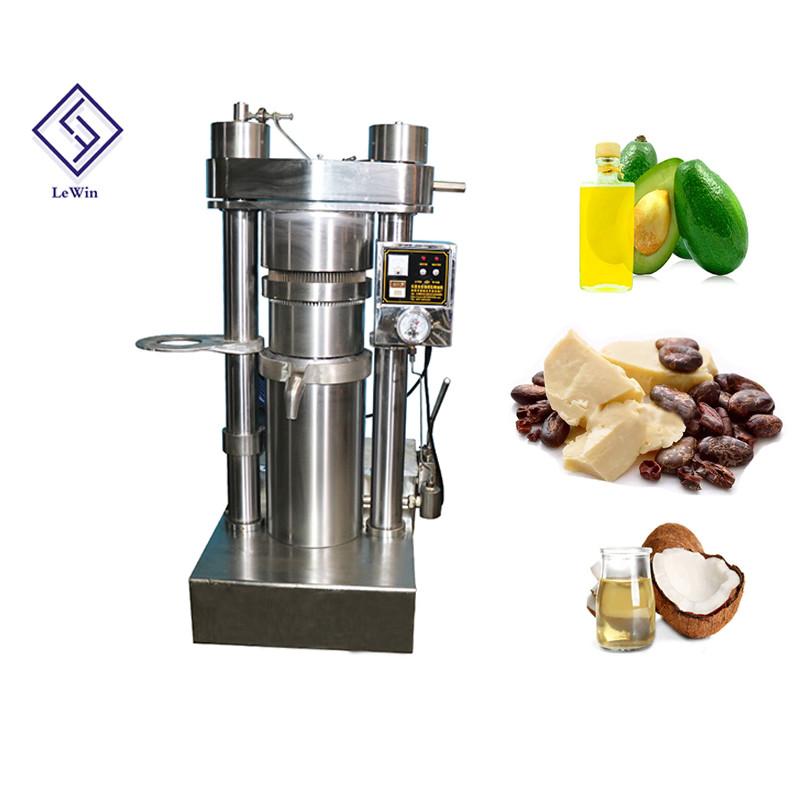

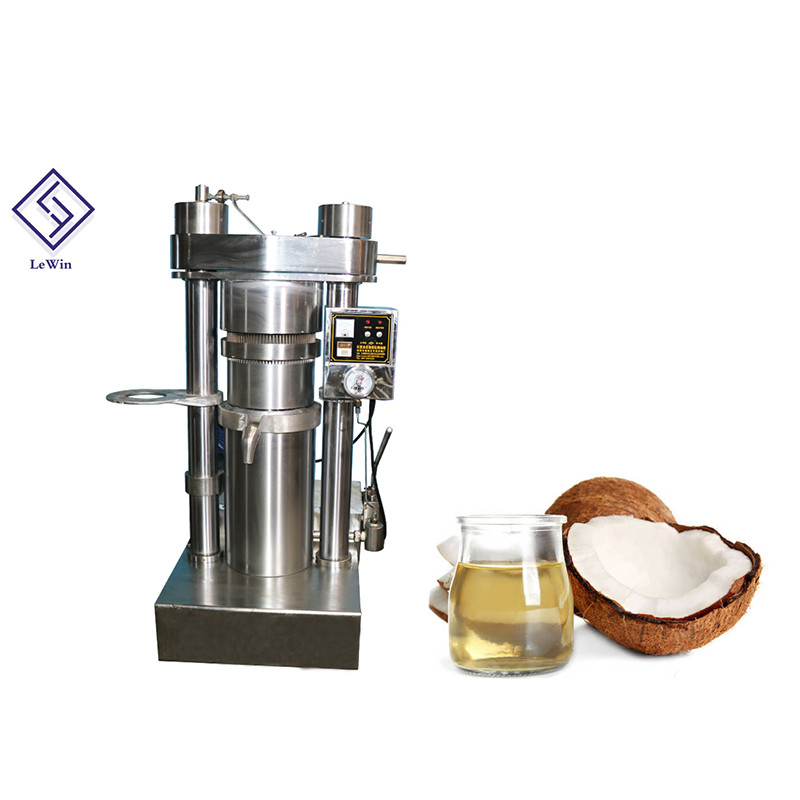

Sesame hydraulic oil extraction machine coconut walnut oil pressing machine

Sesame hydraulic oil extraction machine coconut walnut oil pressing machine

Place of Origin:

Henan Province, Henan

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

Brand

Contact Us

Request A Quote
Product Details
Machine Name:
Sesame Hydraulic Oil Extraction Machine Coconut Walnut Oil Pressing Machine
Function:
Produce Cooking Oil
Suitable Material:
Sesame, Walnut, Coconut, Peanut, Cocoa Butter, Linseed
Model:
6YY-300
Input Capacity:
16 Kg/batch
Power:
2.2 KW
Working Pressure Of 6YY-250:
60 Mpa
HS Code Of 6YY-250:
84792000
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
negotiate
Packaging Details
plastic film and wooden case package
Delivery Time
3-5 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
500 sets per month
Product Description

Sesame hydraulic oil extraction machine coconut walnut oil pressing machine

Production instruction:

1. Lewin hydraulic oil press machinery with advanced manufacture technology, which is economic and environmental protection, and durable performance.
2. The sesame oil extraction machine max working pressure can reach to 60Mpa,higher than market machines(the normal is 45Mpa to 55Mpa) , so that our machine can press material evenly to provide you high oil yield.
3. Internal temperature control parts to solve the problem of low oil yield in winter (usually the machine's oil yield will be lower in winter). And if you want to cold press, you can keep the heating switch off.
4. The precision instrument panel monitors the temperature and pressure at any time,and operates simply.

Parameters of different models

This hydraulic oil extraction machine have 8 models, according to the demand of production, you can choose the right machine, and contact us for a better quotation.


ModelPressurePower/KWCapacityDimension/MWeight/Kg
6YY-18560Mpa1.14kg /batch0.6*0.88*1.15590kg
6YY-230A60Mpa1.18.5kg /batch0.67*0.95*1.46924kg
6YY-230B60Mpa1.19.5kg /batch0.67*0.95*1.56950kg
6YY-25060Mpa1.111kg /batch0.71*0.95*1.561070kg
6YY-27060Mpa2.213.5kg /batch0.75*1.01*1.641230kg
6YY-30060Mpa2.216kg /batch1*1.1*1.661600kg
6YY-33560Mpa2.220kg /batch1.1*1.24*1.731750kg
6YY-35560Mpa3.023kg /batch1.16*1.2*1.81

2350kg



Sesame hydraulic oil extraction machine coconut walnut oil pressing machine 0

How to operate machine

The operate principle is that you put the oil raw material into the pressing chamber of the hydraulic pressers and close the top plate. It is easy to operate. Turning on the machine, then it being driven up by the oil cylinder piston, the oil will be squeezed out from the oil line as the machine boosts pressure.




What material can be pressed by hydraulic oil extraction machine

this machine could use for many raw materials like the below picture.


Sesame hydraulic oil extraction machine coconut walnut oil pressing machine 1


Sample of final oil

clean oil samples from the hydraulic machine. hot press and cold press are different color.



Sesame hydraulic oil extraction machine coconut walnut oil pressing machine 2



Our factory



Lewin oil press machine company is a leading manufacturer of oil machine in China, we located in Nanyang city, Henan Province.

Welcome every friend to visit our factory.



Sesame hydraulic oil extraction machine coconut walnut oil pressing machine 3

Sesame hydraulic oil extraction machine coconut walnut oil pressing machine 4
