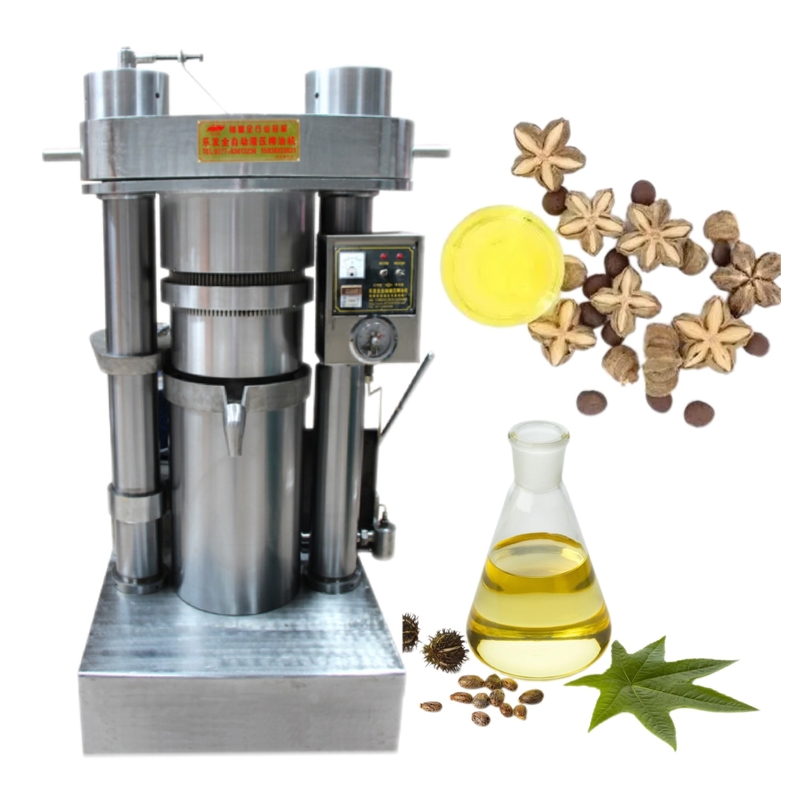

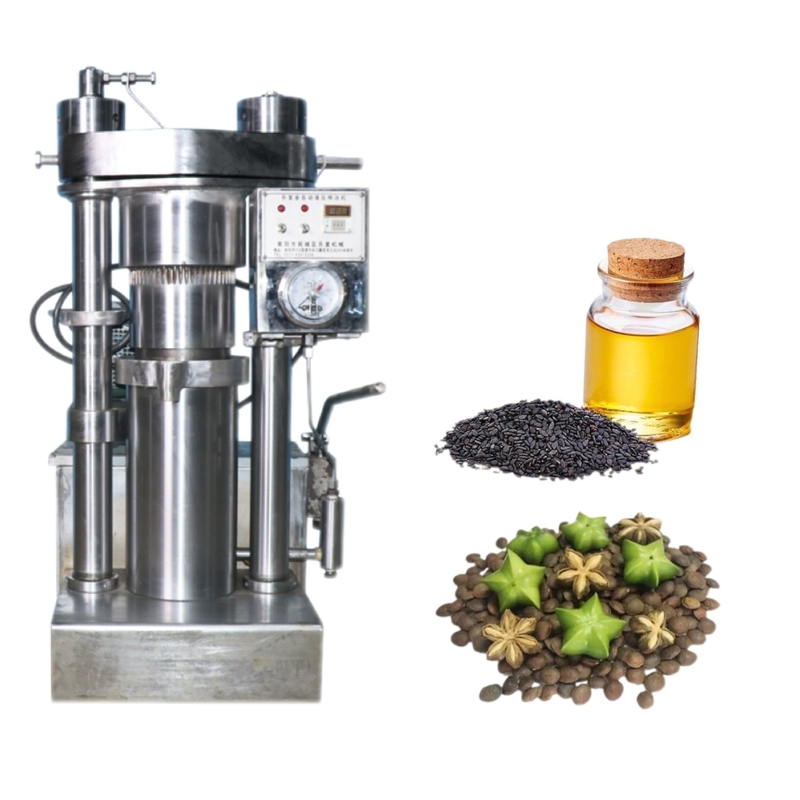

High Efficiency Sesame Oil Press Machine Hydraulic Model

High Efficiency Sesame Oil Press Machine Hydraulic Model

avocado oil press machine

electric oil press machine

Place of Origin:

Henan

Brand Name:

Lewin

Certification:

ISO

Model Number:

6YY-185

Contact Us

Request A Quote
Product Details
Warranty:
1 Year
Voltage:
220V/380V/customized
Weight:
600kg
Power Source:
Hydraulic
Condition:
New
Dimension(l*w*h):
780*1000*1580mm
After-sales Service Provided:
Video Technical Support/online Support
Power(w):
2.2/1.1kw
Product Name:
Hydraulic Model Oil Press Machine
Application:
Hydraulic Pressing
Keyword:
Oil Press Machine
Name:
Oil Presser
Usage:
Pressing Oil From The Material
Capacity:
4kg/batch
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
standard export wooden case
Delivery Time
5-7 working days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
300 set per month
Product Description

Detail instruction of the hydraulic oil press machine



I. Our oil press machine has the following characteristics:
1. It can save labor and cost: only one or two people can operate 5-7 set machine.

2. Our hydraulic oil press machine adopt physical method to press oil to keep the essence not destroyed, get the best quality oil from different oil material.
3. 60Mpa max working pressure offers stronger power to the press system, increase the oil yield.

4. Specially heating treatment for the steel, makes the machine stronger to bear the high working pressure.
5. High automatic level, one botton to control the machine, very easy to operate and cover a very small space, it is the best choice for oil press filed.

II. Detail pictures:

High Efficiency Sesame Oil Press Machine Hydraulic Model 0

Different side display:

High Efficiency Sesame Oil Press Machine Hydraulic Model 1

Detain parts show:

High Efficiency Sesame Oil Press Machine Hydraulic Model 2

Warehouse display:

High Efficiency Sesame Oil Press Machine Hydraulic Model 3

Oil press solution:

High Efficiency Sesame Oil Press Machine Hydraulic Model 4

III. Main parameter:

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kgs) 550 920 970 1060 1230 1600 1750 2300

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.4 kw 2.2/4.4 kw 2.2/4.4 kw 3.0/5.0 kw
Package Size(mm) 780*1000*1580 780*1000*1580 780*1000*1680 780*1040*1710 820*1081*1750 940*1140*1810 940*1160*1800 1040*1240*1920

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2


IV. Packing and shipping:



Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

High Efficiency Sesame Oil Press Machine Hydraulic Model 5

V. Our service:

1. Pre-sale service: we offer different solution for different request and material.

                                 factory view accepted.

                                 test machine accepted.

                                 7x24 hours online service.

2. After sale service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
