Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 185
Contact Us

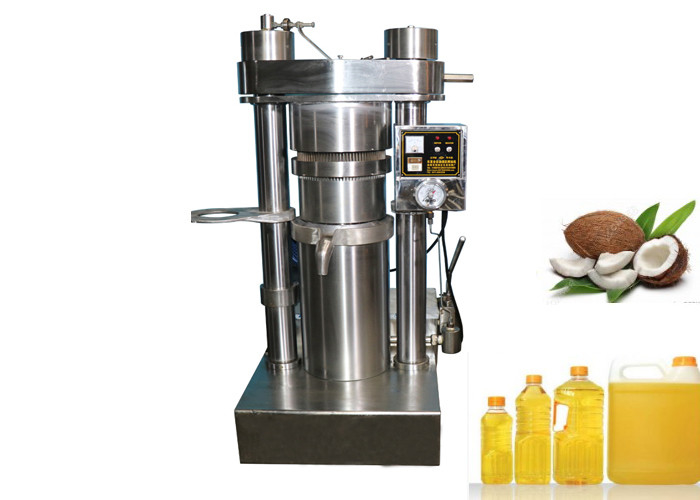

Small type olive oil processing machine oil processing machinery
Production description
1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.
2. This machine can work with many kinds of oil seeds well.
3. This machine can work continuously for 24 hours. It can squeeze 4 kilogram per batch, the perssing time is 8-15 minutes.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
5. The material of this machine is alloy that can make sure the safety.
Parameter:
Model |
6YY-185 |
6YY-230A |
6YY-230B |
6YY-250 |
6YY-270 |
6YY-300 |
6YY-335 |
6YY-355 |
---|---|---|---|---|---|---|---|---|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
≤2% |
Appliction range
This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.
The 6YY-185 hydraulic oil press parameter:
Work principle:
This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
