High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine

electric oil press machine

hydraulic oil extractor

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY- 230A

Contact Us

Request A Quote
Product Details
Name:
Hydraulic Oil Press Machine
Model:
6YY - 230 A
Usage:
Cold & Hot Pressing
Suit For:
Kinds Of Oil Seeds
Weight:
924 KG
Key Word:
Sunflower Oil Extractor Machine
Material:
Kinds Of Seeds
Power:
2.2 Kw / 1.1 Kw
Voltage:
380V
Pressure:
60 Mpa
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case package / Customized
Delivery Time
7-10 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine



I. Production description

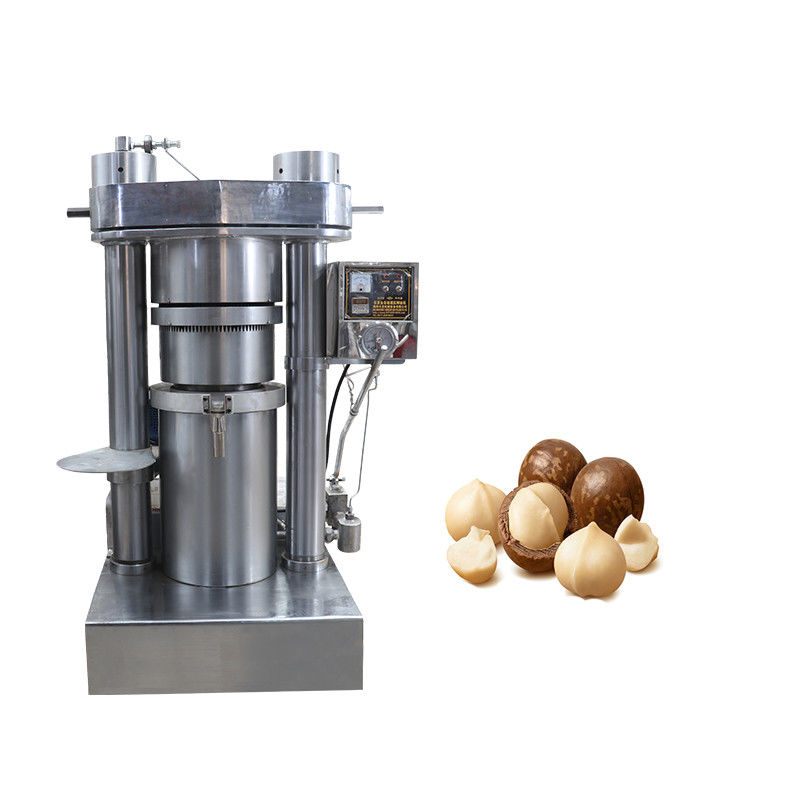

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 0

Our 6YY-230A oil press machine:



1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.

2. This machine can work with many kinds of oil seeds well.

3. This machine can work continuously for 24 hours. It can squeeze 8 kilogram per batch, the perssing time is 8-15 minutes.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

5. The material of this machine is alloy that can make sure the safety.



Appliction range

This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.

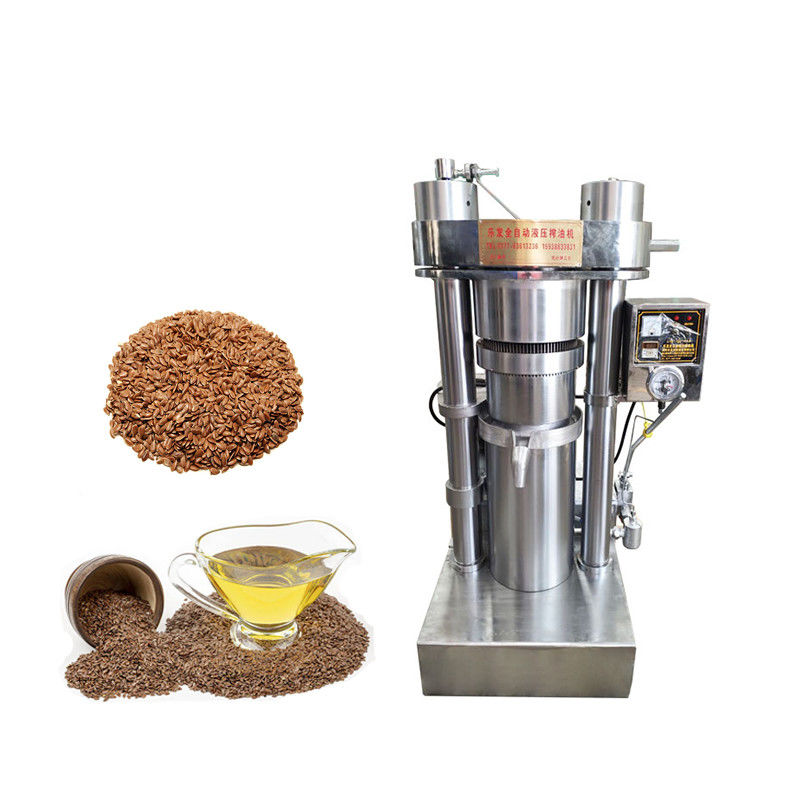

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 1





Parameter:

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%
















































II. Work principle:

This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 2



Workflow:



High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 3

Operation step:

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 4



III. Our advantages

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 5

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 6






IV. Packing & Delivery

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 7


V. Our service

1. Pre-sale service:

We offer different solution for different request and material.

Factory view accepted.

Test machine accepted.

7x24 hours online service.

2. After sale service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller won't provide service with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 8


VI. Our company

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 9

Warehouse:

High Oil Rate Cooking Oil Making Machine , 380V Edible Oil Extraction Machine 10
