Place of Origin:
China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-230A
Contact Us
avocado oil extraction machine other nuts processing machines sesame oil machine

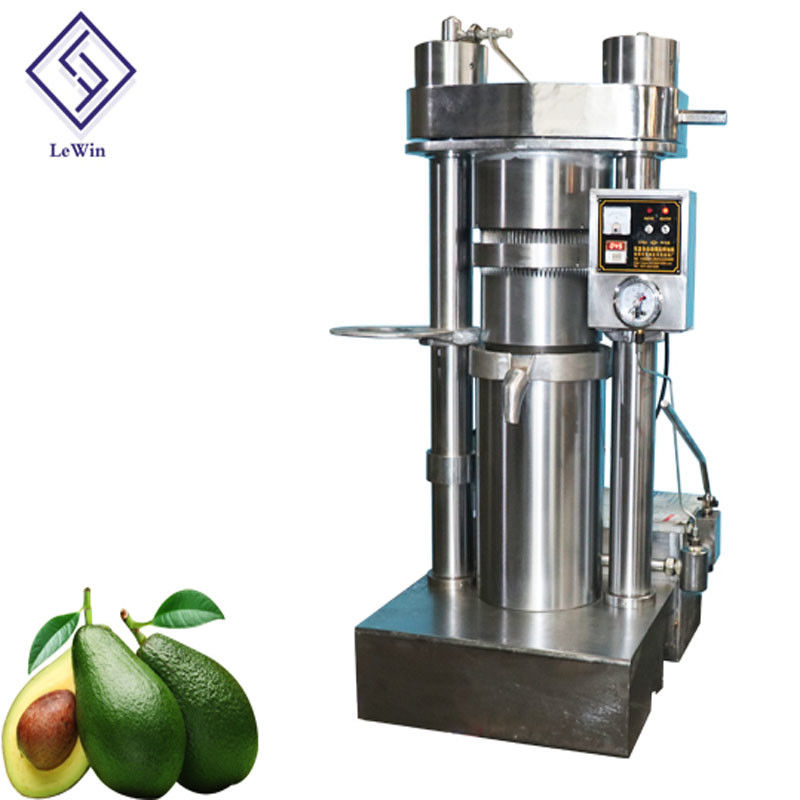

Avocado oil extraction machine instruction:
1. This machine type is hydraulic oil press machine, it's automatic operation, easy to operate, 1 person can operate many sets.
2. Sesame oil machine can cold and hot press, and if you have request of temperature, our machine also can do it, just keep heating swith off, the temperature will same room temperature. Because our sesame oil machine is purely physical pressing, this working principle can press material with low temperature, and it can keep the material smell and taste, and the final oil quality is high.
3. Our sesame oil machine max working pressure is 60Mpa, working pressure is higher and it can make sure high oil yield. And special of our machine, when the pressure is reach to 60Mpa, the machine will stop and pressure will down to 50Mpa, when down to 50Mpa, machine will start working again, the pressure will up and when reach to 60Mpa, machine will stop again. Like do 2-3 time processing, you can get about the most oil from material. This way like squeeze moisture from the sponge, it can help you get more oil, so that's why the oil yield is higher by our hydraulic oil press machine.
4. Oil line of our hydraulic oil press machine, our oil line is 0.36mm, it's very precise, when oil coming out, it can filter the oil residue, and if cold press, we also will use filter cloth to packing material, it also can filter oil, so the final oil is clean, the final oil can reach to edible oil grade, no need other filter machine to filter oil.
Parameter of avocado oil extraction machine other nuts processing machines sesame oil machine:
Details like below show, if you have other capacity request, feel free to contact us, we will send right machine to you.
| Model of avocado oil extraction machine | 6YY-230A |
| Capacity | 8.5 kg/ batch |
| Batch working time | 8-15 minutes |
| Max working pressure | 60Mpa |
| Cylinder Volume | 15.3L |
| Cylinder diameter | 230mm |
| Height of hopper | 370mm |
| Column Diameter | 90 mm |
| Voltage | Single phase 220V/ Three phase 380v (customized) |
| Power | 2.2 KW/ 1.1KW |
| Size | 670*950*1460mm |
| Weight | 924 kg |
Detail operation of hydraulic oil press machine:
Open heating power → open top roof→ put raw material into press kettle → put cotton pad→ put cover steel → close the top roof → lifting pressure bar→ open the motor switch → final oil will out
