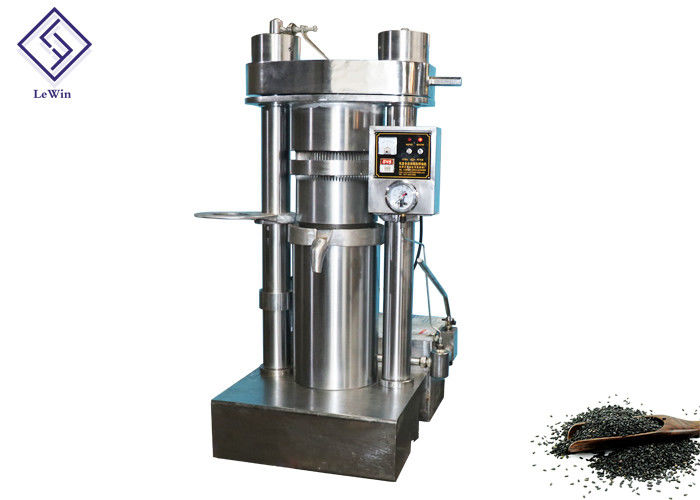

Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers

Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers

Sesame Hydraulic Oil Cold Press Machine

Hydraulic Oil Press Machine 60mpa

Hydraulic Oil Press Machine 2.2 kw

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
20 Kg/batch
Work Pressure:
60 Mpa
2.2 Kw
Batch Working Time:
10-15 Min
1750 Kg
1100*1240*1730 Mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
$3100-$5150 per set
Packaging Details
1.26*1.2*1.94m packing with film and wooden case
Delivery Time
7-10 days
Payment Terms
L/C, T/T, MoneyGram, Western Union
Supply Ability
100 sets per month
Product Description

Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers

Company Profile:

1. Henan Lewin Industrial Development Co., Ltd. is a comprehensive production and operation enterprise that integrates production, research and development, sales, and export.
2. The main products are hydraulic oil presses, spiral oil presses, oil press related supporting equipment, and other grain and oil machinery.
3. The company is committed to the research and development and sales of grain and oil equipment for more than 20 years, backed by scientific research institutes and universities, guided by the idea of innovation and breakthrough leading the trend, introducing and absorbing advanced technologies from both domestic and foreign countries, and wholeheartedly developing.
4. It has a complete production capacity of oil presses, independent intellectual property rights, multiple qualification certificates, and agricultural machinery promotion and appraisal products from the Ministry of Agriculture
5. The enterprise has also passed the "ISOO9001 Quality System Certification", with products covering the world, excellent product quality, and a comprehensive after-sales service system, and has received unanimous praise from users from various countries

Workshop Display:

Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers 0

Parameters of Hydraulic Oil Presser:

(different capacity models for your choice)

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355
cylinder diameter(mm) 185 230 230 250 270 300 335 355
Hydraulic cylinder diameter 150mm 190mm 190mm 200mm 220mm 250mm 270mm 300mm
Height of hopper 270mm 370mm 440mm 440mm 440mm 440mm 440mm 440mm
Work pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Column Diameter 80mm 90mm 90mm 100mm 105mm 120mm 150mm 150mm
Cake Diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Single Phase(Kw) 2.2 2.2 2.2 2.2 4 / / /
Three phases(Kw) 1.1 1.1 1.1 1.1 2 .2 2.2 2.2 2.2



4 8.5 9.5 11 13.5 16 20 23
Batch working time (minutes) 8--10 8--10 8--10 8--10 8--10 8--15 8--15 8--15
Weight(Kg) 590 924 950 1070 1230 1600 1750 2350
Dimension(mm) 600*800*1150 670*950*1460 670*950*1560 710*950*1560 750*1010*1640 1000*1100*1660 1100*1240*1730 1160*1200*1810
Cylinder Volume 7.2L 15.3L 18.2L 21.6L 25.1L 31L 38.7L 43.5L


Details of Hydraulic Oil Press Machine:

1. The pressure of our hydraulic oil pressers are 60 MPA, higher than other machines (the normal is 45Mpa to 55Mpa), provides higher oil yield.
2. Internal temperature control parts to solve the problem of low oil yield in winter(the normal machine's oil yield will be lower in winter).
3. The precision instrument panel monitors the temperature and pressure at any time, and operate simply.
4. The steel used for manufacturing machines is aerospace steel, which is hard enough to support high working pressure and provide a safe working environment.

Production Line Design:

We not only provide oil presses, but also can be equipped with production lines, such as the following production lines:

Hydraulic Oil Cold Press Machine For Sesame Olive High Pressure Oil Pressers 1

Any interest about our oil press machine, please contact us direcly!
Wahtsapp&Tel&Wechat: +86 156 3853 8062
