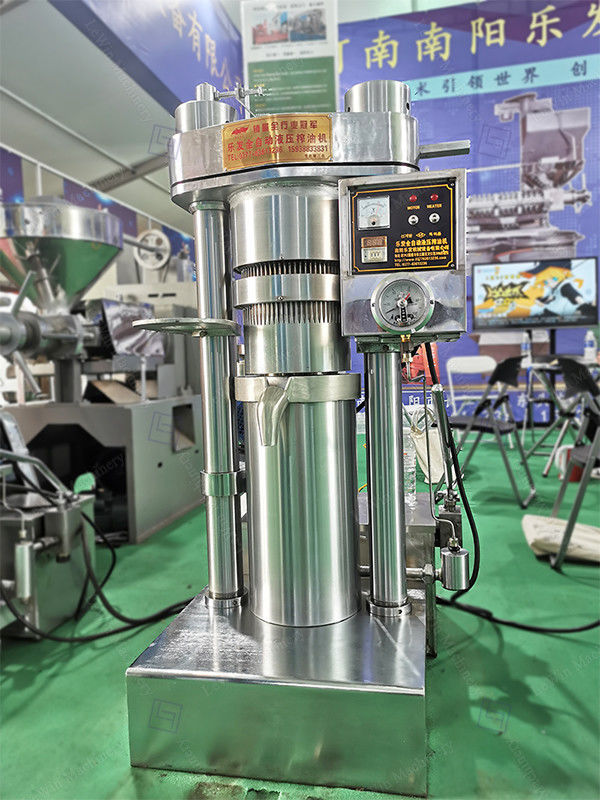

24 Kg/H Walnut Oil Press Machine Cold Oil Processing Smaller Scale

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden Carton Customization Delivery Time : 7-10 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan Province, China Brand Name: Lewin
Certification: CE ISO Model Number: 6YY-250

Detail Information

Product Name: Walnut Oil Press Machine Key Word: Cold And Hot Press
Oil Seeds: Walnut, Avocado, Coconut, Cocoa,sesame Pressure: 60Mpa
Material: Alloy Steel HS Code: 847920 0000
High Light:

Walnut Cold Oil Press Machine


24 Kg/H Walnut Oil Press Machine


Walnut Cold Oil Processing Machine

Product Description

Walnut oil press machine cold oil processing machine smaller scale

  • Introduction​
  • Lewin series hydraulic oil press machine, which applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety. High precision structure hydtaulic box can over higher pressure. Seperately and more perfect  oil line technology applied, keep the press kettle strong enogh and increse the oil rate.
  • The Parameter of hydraulic oil making machine
    The table below shows all our existing models and the capacity, if you have more needs, contact us please.
  • Model Capacity Pressure Power Dinmension Weight Oil cake diameter
    6YY-185 16-24 kg/h 60 Mpa 1.1 kw 600*880*1150 mm 590 kg 185 mm
    6YY-230A 34-51 kg/h 60 Mpa 1.1 kw 670*950*1460 mm 924 kg 230 mm
    6YY-230B 38-57 kg/h 60 Mpa 1.1 kw 670*950*1560 mm 950 kg 230 mm
    6YY-250 44-66 kg/h 60 Mpa 1.1 kw 710*950*1560 mm 1070 kg 250 mm
    6YY-270 54-81 kg/h 60 Mpa 2.2 kw 750*1010*1640 mm 1230 kg 270 mm
    6YY-300 64-96 kg/h 60 Mpa 2.2 kw 1000*1100*1660 mm 1600 kg 300 mm
    6YY-335 80-120 kg/h 60 Mpa 2.2 kw 1100*1240*1730 mm 1750 kg 335 mm
    6YY-355 92-138 kg/h 60 Mpa 3.0 kw 1160*1200*1810 mm 2350 kg 355 mm

    NOTICE: Single phase electric optional.
  • The application of hydraulic oil pressure machine
    24 Kg/H Walnut Oil Press Machine Cold Oil Processing Smaller Scale 0

    The hydraulic press supports hot and cold pressing, with high oil yield, and the obtained oil can be eaten directly.
    24 Kg/H Walnut Oil Press Machine Cold Oil Processing Smaller Scale 1
  • Package
  • All of our machine was packed by double water proof film and standard export wooden case. We always do our best to protect your machine during the shipment.
  • 24 Kg/H Walnut Oil Press Machine Cold Oil Processing Smaller Scale 2
  • Reference Video

    24 Kg/H Walnut Oil Press Machine Cold Oil Processing Smaller Scale 3

    This video shows in detail how the machine works. The material of this test machine is sesame, and the process is cold pressing. From discharging to oil, the operation is simple, one person can operate 3-5 machines at the same time. The machine has only two operation buttons, switch and heating, if you want cold pressing, you can ignore the heating button. Smart temperature control system with digital display can help you to get details information from the machine.
  • Why choose us??
  • 1. Professional oil equipment manufacturer, more than 20 years manufacture and technology experience can offer the high quality products and sale and after sale service.
    2. Professional quality inspection department help you to control the product quality, make sure all the machine qualified with the export quality.
    3. Professional design and development team can offer the suitable solution and customization service.
    4. New and Core technology applied to our machine, can realize the real cold press. High quality cold press oil help you to get the market.
    5. Our machine has exported to Europe, America, Africa, Asia and gor very good feedback from customer.
