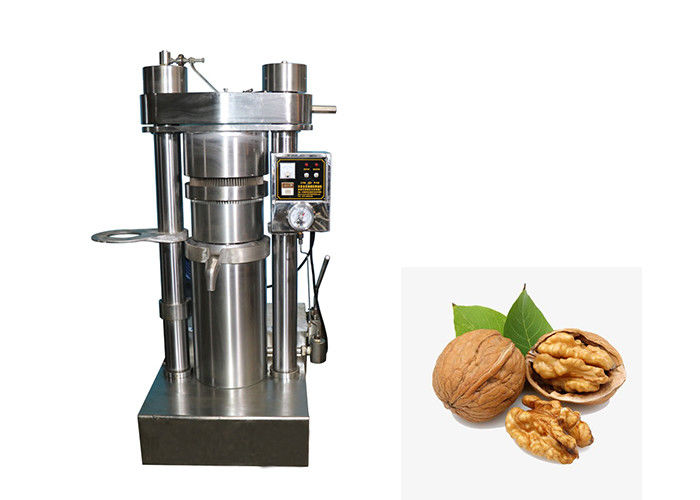

Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel

Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel

Nuts Hydraulic Oil Press Processing Machines

220V Nuts Oil Press Processing Machines

Alloy Steel Hydraulic Nuts Oil Press

Place of Origin:

Henan Province , China

Brand Name:

Lewin Machinery

Certification:

CE

Model Number:

6YY- 230B

Contact Us

Request A Quote
Product Details
Machine Name:
Nuts Processing Machines Hydraulic Oil Press High Quality
Material:
Alloy Steel
Voltage Of Hydraulic Coconut Oil Making Machine:
380V / 220V/customized
Working Pressure Of Oil Extracting Machine:
60 Mpa
Press Kettle Diameter:
230 Mm
Oil Rate Of Coconut Oil Making Machine:
96%
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$ 4380 per set
Packaging Details
Wooden case package / Customized
Delivery Time
5-7 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Hydraulic nuts oil pressers 60Mpa factory price widely used



Production advantages



1. Lewin automatic hydraulic oil press machine with advanced manufacture technology, which is economic and environmental protection, and durable performance; It brings High oil yield, pure oil, and no filtration.

2. The pressure is up to 60Mpa,higher than market machines(the normal is 45Mpa to 55Mpa) , provides higher oil yield.

3. Internal temperature control parts to solve the problem of low oil yield in winter (usually the machine's oil yield will be lower in winter) .

4. The precision instrument panel monitors the temperature and pressure at any time,and operates simply.



Parameters of different models

This hydraulic oil press has a variety of models, according to the demand of production, you can choose the right machine, and contact us for a better quotation



Model Pressure Power/KW Capacity Dimension/M Weight/Kg
6YY-185 60Mpa 1.1 4kg /batch 0.6*0.88*1.15 590kg
6YY-230A 60Mpa 1.1 8.5kg /batch 0.67*0.95*1.46 924kg
6YY-230B 60Mpa 1.1 9.5kg /batch 0.67*0.95*1.56 950kg
6YY-250 60Mpa 1.1 11kg /batch 0.71*0.95*1.56 1070kg
6YY-270 60Mpa 2.2 13.5kg /batch 0.75*1.01*1.64 1230kg
6YY-300 60Mpa 2.2 16kg /batch 1*1.1*1.66 1600kg
6YY-335 60Mpa 2.2 20kg /batch 1.1*1.24*1.73 1750kg
6YY-355 60Mpa 3.0 23kg /batch 1.16*1.2*1.81

2350kg





Operating principle



The operate principle is that you put the oil raw material into the pressing chamber of the hydraulic pressers and close the top plate. It is easy to operate. Turning on the machine, then it being driven up by the oil cylinder piston, the oil will be squeezed out from the oil line as the machine boosts pressure.



Detailed--Cooking Hydraulic Oil Pressers



Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel 0



Materials



this machine could use for many raw materials like the below picture.



Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel 1

Samples of oil



clean oil samples from the hydraulic machine. hot press and cold press are different color.



Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel 2



Why choose us



I. Professional design, production team



Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel 3

Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel 4

Nuts Hydraulic Oil Press Processing Machines 220V Alloy Steel 5
