Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield

walnut oil cold pressed extraction machine

2.2 KW walnut oil press machine

60 Mpa walnut Hydraulic press machine

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY- 230A

Contact Us

Request A Quote
Product Details
Machine Name:
Lewin Machinery Hydraulic Sesame Oil Expeller Machine Home Oil Press Machine
Machine Material Of Coconut Oil Making Machine:
Alloy Material
Model:
6YY- 230A
Voltage Of Hydraulic Coconut Oil Making Machine:
380V / 220V/customized
Weight Of Oil Extracting Machine:
924 Kg
Working Pressure Of Oil Extracting Machine:
60 Mpa
Press Kettle Diameter:
230 Mm
Motor Power Of Coconut Oil Making Machine:
1.1 KW
Oil Rate Of Coconut Oil Making Machine:
96%
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$ 4200 per set
Packaging Details
Wooden case package / Customized
Delivery Time
7-10 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Hydraulic sesame seed oil making machine Mustard oil extracting machine 60Mpa


Products Description

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 0

Production advantages



1. Lewin automatic hydraulic oil press machine with advanced manufacture technology, which is economic and environmental protection, and durable performance; It brings High oil yield, pure oil, and no filtration.
2. The pressure of our machine is 60Mpa,higher than other machines(the normal is 45Mpa to 55Mpa) , provides higher oil yield. 3. Internal temperature control parts to solve the problem of low oil yield in winter (the normal machine's oil yield will be lower in winter) . 4. The precision instrument panel monitors the temperature and pressure at any time,and operates simply.

Operating principle

The operate principle is that you put the oil raw material into the pressing chamber of the hydraulic pressers and close the top plate. It is easy to operate. Turning on the machine, then it being driven up by the oil cylinder piston, the oil will be squeezed out from the oil line as the machine boosts pressure.

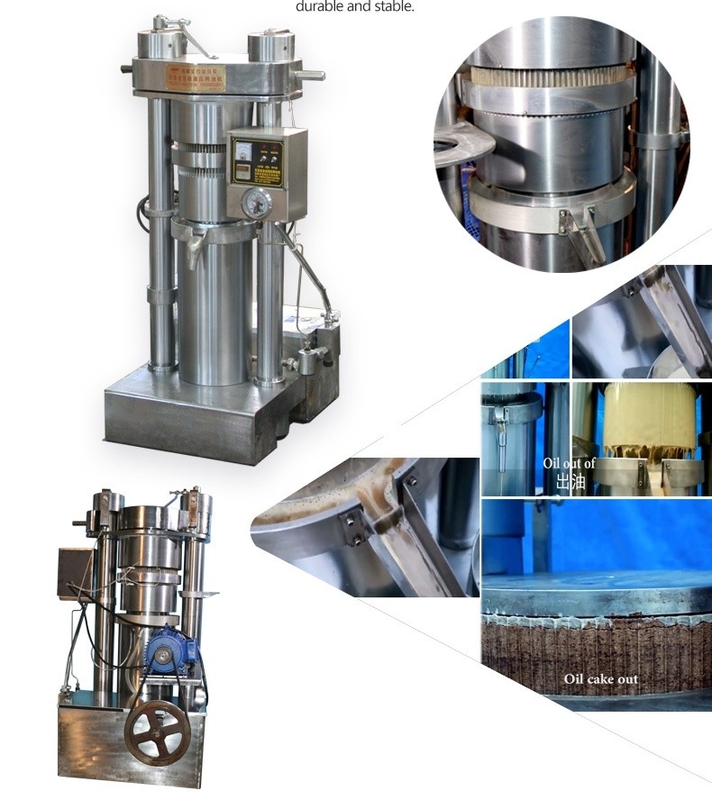

Detail shows

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 1

1. This machine applied the our new supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety.
2. High precision structure hydraulic box can over higher pressure.
3. Separately and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.

4. The motor can be changed according to the voltage in the customer's country.


Detailed--Cooking Hydraulic Oil Pressers



Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 2

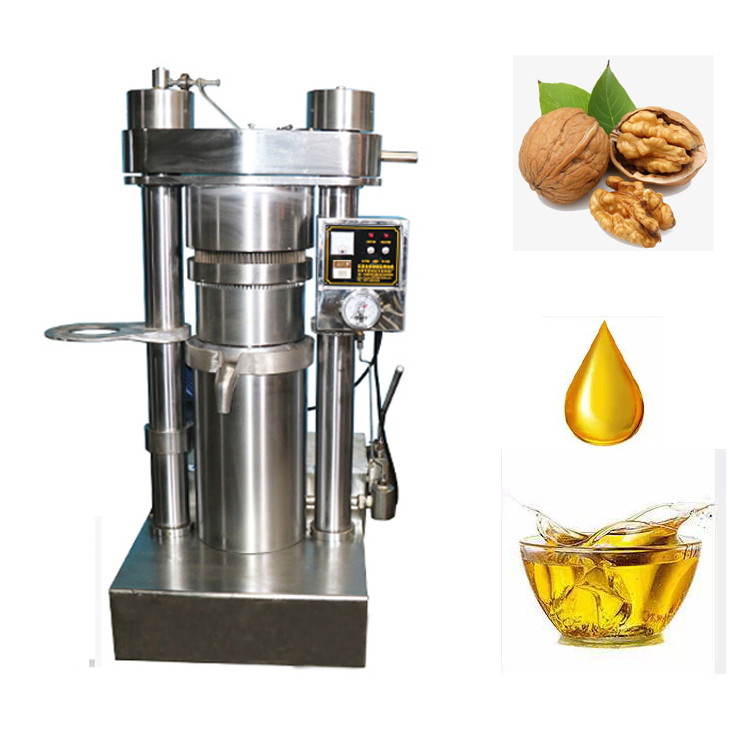

Materials
this machine could use for many raw materials like the below picture.
Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 3
Samples of oil
clean oil samples from the hydraulic machine. hot press and cold press are different color.

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 4

Parameters of different models
This hydraulic oil press has a variety of models, according to the demand of production, you can choose the right machine, and contact us for a better quotation

Model                  Pressure          Power/KW      Capacity                  Dimension/M              Weight/Kg
6YY-185 60Mpa 1.1 4kg /batch 0.6*0.88*1.15 590kg
6YY-230A 60Mpa 1.1 8.5kg /batch 0.67*0.95*1.46 924kg
6YY-230B 60Mpa 1.1
9.5kg /batch
0.67*0.95*1.56 950kg
6YY-250 60Mpa 1.1 11kg /batch 0.71*0.95*1.56 1070kg
6YY-270 60Mpa 2.2 13.5kg /batch 0.75*1.01*1.64 1230kg
6YY-300 60Mpa 2.2
16kg /batch
1*1.1*1.66
1600kg
6YY-335 60Mpa 2.2 20kg /batch 1.1*1.24*1.73 1750kg
6YY-355 60Mpa 3.0 23kg /batch 1.16*1.2*1.81
2350kg



Product packaging

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 5


Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 6

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 7

Moisture-proof packing and standard wooden case packing suitable for ocean transportation, and package also can be customized. The machines are delivered directly from the factory to the port or customer's designated port.Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 8

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 9

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 10

Why choose us

I. Professional design, production team


Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 11


Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 12


Professional sale & service team



1. Visit our factory,

2. Test our machine
3. Best solution for you
4. Faster delivery
5. 7x24 hours online service

Customer visiting



Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 13


Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 14
Customer feedback

II. Authoritative Certification


Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 15

III. Enough Spot

We can delivery our machine at any time according to your request!


Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 16

Walnut Oil Cold Pressed Extraction Machine 60 Mpa Hydraulic Press High Oil Yield 17

FAQ


Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



Q: I don't know how to use the oil press machine.

A: Don't worry, we will send you Manual for oil press machine. We also provide the operation videos of oil press machine.



Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. Best quality is our principle all the time.



Q: Do you offer customized service?
A: Yes, we could offer customized service.

Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
