Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller

Minimum Order Quantity : 1 set Price : $ 5299 per set
Packaging Details : Standard wooden case packing Delivery Time : 5-8 working days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: China Brand Name: Henan Lewin
Certification: CE certification Model Number: 6YL-120

Detail Information

After-sales Service Provided: Video Technical Support Type: Cold & Hot Pressing Machine
Voltage: 380v Automatic Grade: Automatic
Dimension(l*w*h): 2000x1400x1850mm Advantage: Simple Operation
Material: SS Materials Body 316 Stainless Steel Screw And Chamber Raw Material: Soybean, Various Kinds Of Oil Seeds, Sunflower, Soybean Prickly Pear Seed Oil Extraction Machine
Power(w): 15 Kw Warranty: One Year
Capacity: 120-160 Kg/h
High Light:

screw Industrial oil expeller

,

6YL-180 Industrial Oil Press Machine

,

Oil Press Machine For Sunflower Seed

Product Description

screw oil presse machine



INTRODUCTION



1.Characteristic

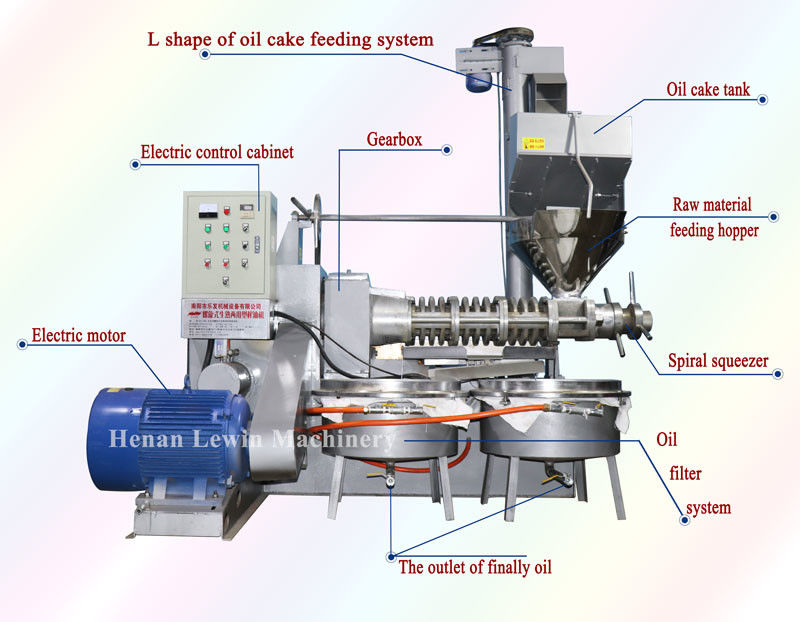

Automatic spiral oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.



2. Principle and Structure:


Oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.

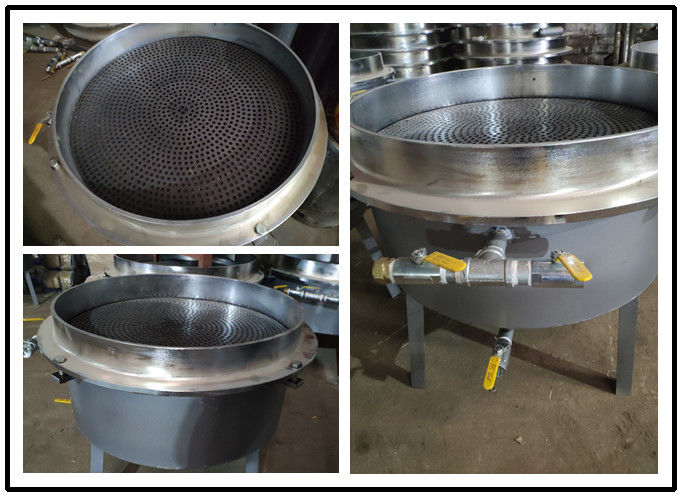

Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller 0

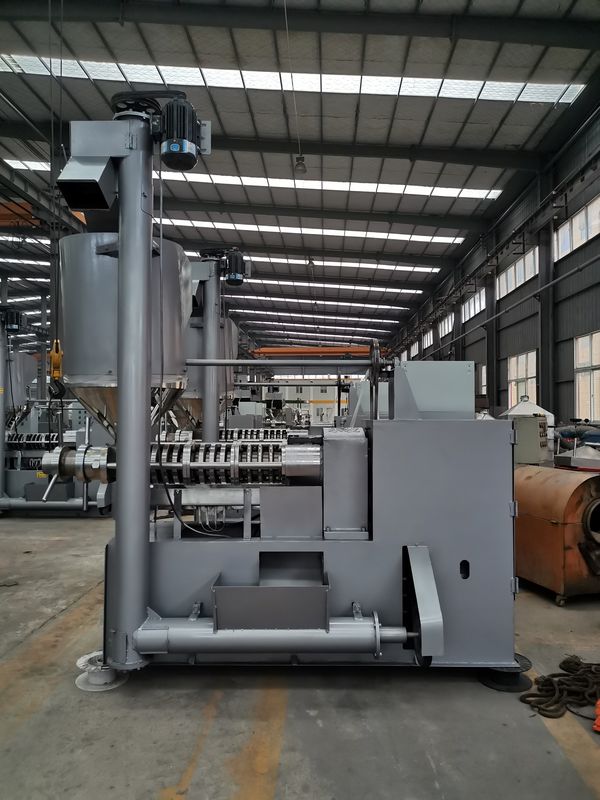

Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller 1



3. Parameter of Castor oil extraction machine



We have different models to meet your request.

According to your requirements, we can also customize for you.



Model Dimension (mm) Weight Power Vacuum power Rotary speed Capacity(kg/h)
6YL-120 2000*1600*2700 1500kg 15kw 1.1kw 100-130 120-160
6YL-130 2150*1600*2700 1600kg 22kw 1.1kw 100-130 180-300
6YL-130(A) 2600*1600*2700 1650kg 18.5kw 1.1kw 100-130 160-280
6YL-150 2550*1800*2700 1800kg 30kw 2.2kw 100-130 220-450
6YL-160 2650*1900*2700 1900kg 30kw 2.2kw 100-130 300-600
6YL-180 2700*2000*2700 1980kg 37kw 2.2kw 100-130 400-750
6YL-220 2920*1900*2700 2000kg 30kw 2.2kw 100-130 400-800
6YL-230 2820*1900*2700 2100kg 37kw 2.2kw 100-130 500-1000



4. Application

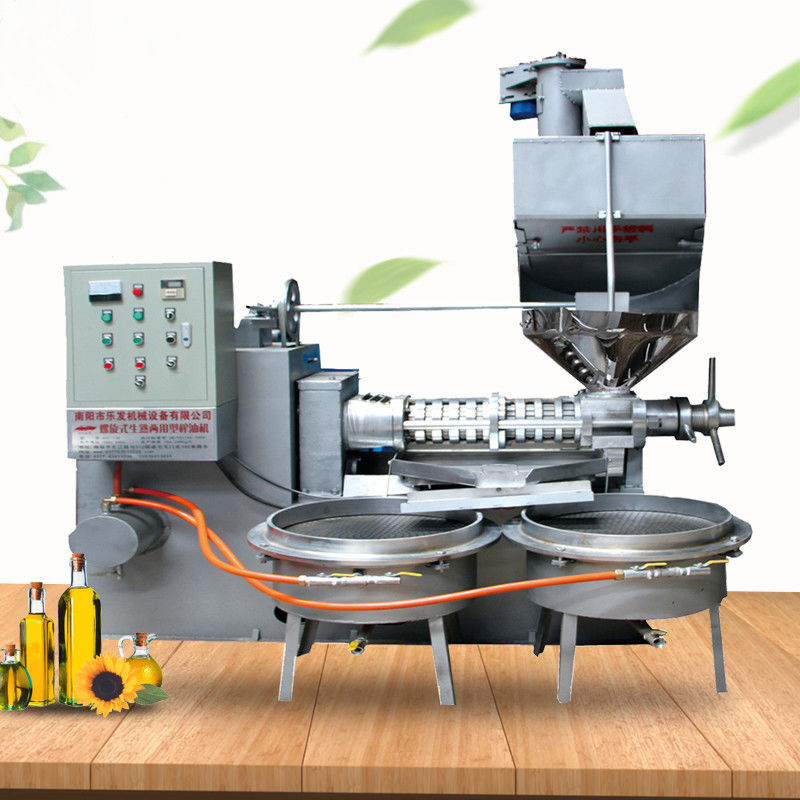

Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller 2



Suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame, sesame seed, tea seed, walnut, olive, corn germ, rice bran, tea seed, safflower seed, seeds of hippophae rhamnoides and so on.



PACKAGE AND DELIVERY



Packing:



1. Standard export wooden case package.

2. Customized.



Delivery:



We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.



Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller 3



OUR SERVICE



1. Pre-sale service:


1).quick respone
2).Detailed quotation
3).Professional production and transportation solution

4). Visit our machinery



2. After sale service:



1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

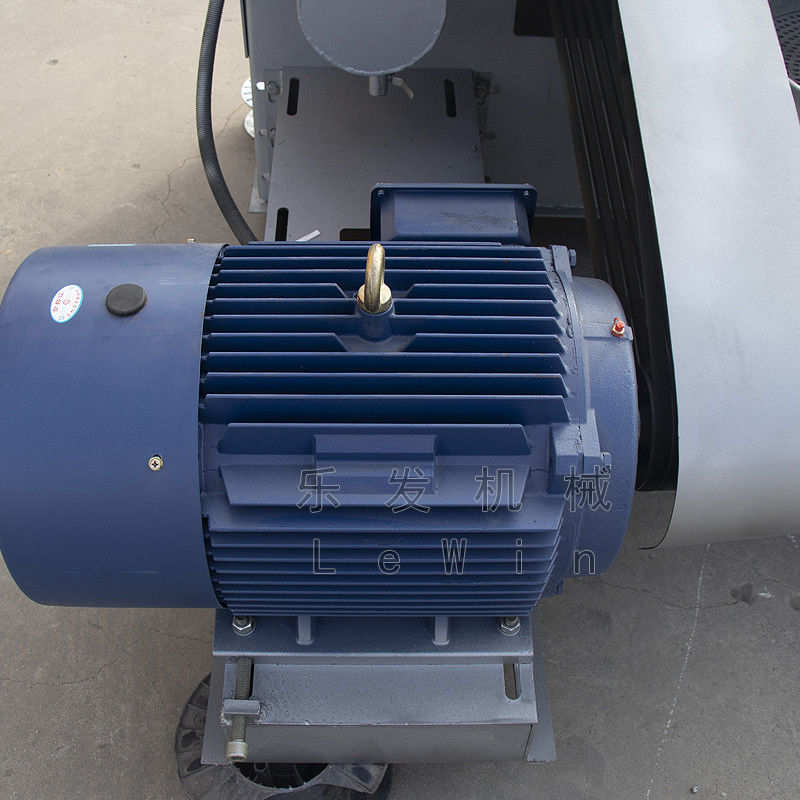

Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller 4

OUR CERTIFICATION

Screw Industrial Oil Press Machine 6YL-180 For Sunflower Seed Expeller 5
The quality of the product can be fully guaranteed.
