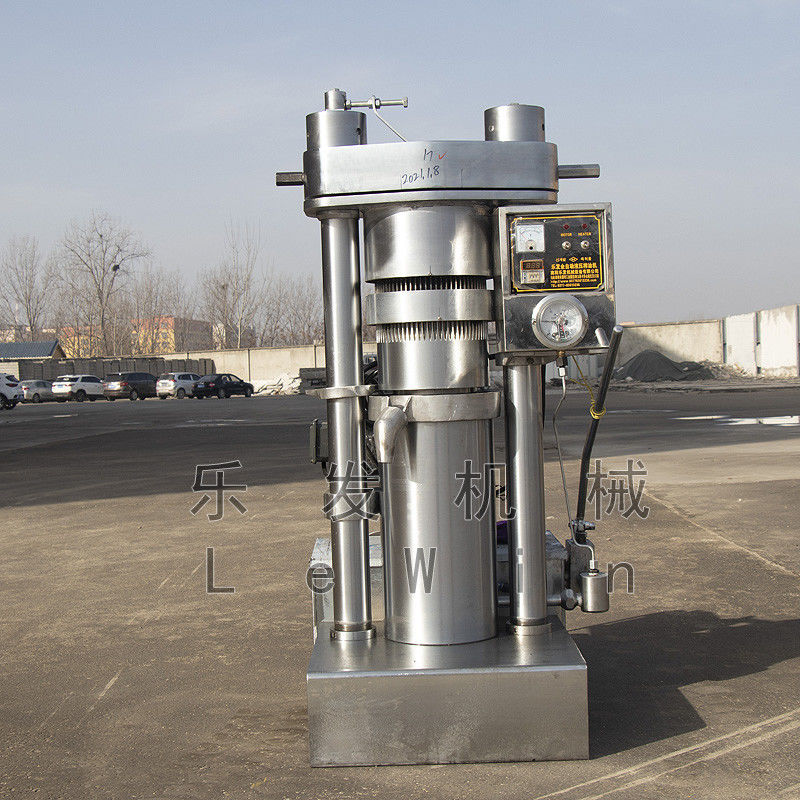

60MPA Hydraulic Oil Press Machine
Contact Person : Waley Pan
Phone Number : 15617821227
WhatsApp : +8613526696760
|Minimum Order Quantity :||1set||Price :||$3100-$7580 per set|
|Packaging Details :||Film packaging+wooden case||Delivery Time :||3-10 working days|
|Payment Terms :||L/C, T/T, Western Union, MoneyGram, Trade Assurance||Supply Ability :||300 sets/month|
|Place of Origin:||China||Brand Name:||Lewin|
|Certification:||ISO CE||Model Number:||6YY-335|
|Model:||6YY-335 Oil Mill Machine||Name:||Oil Mill Machine|
|Oil Mill Machine Dimension:||1.1*1.24*1.73m||Pressure Of Oil Mill Machine:||60Mpa|
|Cake Diameter Of Oil Mill Machine:||335mm||Weight Of Oil Mill Machine:||1750kg|
|Color Of Oil Mill Machine:||Silver||Power Of Oil Mill Machine:||3 Kw|
|Capacity Of Oil Mill Machine:||23 Kg/batch|
23kg/Batch Hydraulic Oil Press Machine,
6YY-335 Hydraulic Oil Press Machine,
23kg/Batch Hydraulic Oil Mill Machine
Describtion of Hydraulic Oil Mill Machine:
1. Specical hydraulic system make Oil Mill machine press your raw material repeatedly, till all the oil be pressed by the machine, so that you can get high oil yield.
2. Oil Mill Machines' High working pressure can reach 60 mpa, high pressure makes high oil yield, just like water in the sponge, the harder you squeeze, the more water you will get. That means you can get more oil with same quatity raw material.
3. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.
4. Oil Presser With 60mpa have high precision oil lines only 0.36mm, can filter residuals efficiently, the oil is pure and clear.
Advantages of ydraulic Oil Mill Machine:
1. The hydraulic system of oil mill machine:
(1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can reach 60 Mpa. here have prssure gauge can monitor the working pressure in real time, any time you can find it immediately.
(2) The hydraulic oil can be recycled, save costs and environmental protection.
(3) Here we use 2 pumps, one is high-pressure pump, another one is low-pressure pump, realize quick conversion between them, improve work efficiency and save electricity.
2. The pressure gauge:
In real time monitor the working pressure:
when our oil mill machine reach the max. value 60 mpa, machine will stop working temporarily, after the pressure reduce to the min value by our engineers set, it will work again, like this till all the oil be pressed by the hydraulic oil mill machine.
3. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine (some others piston is hollow), increase the oil rate.
Parameters of Hydraulic Oil Mill Machine:
If there is no model suitable, we can customize it for you.
How to operate our Hydraulic Oil Mill Machine:
Detailed information of Hydraulic Oil Mill Machine:
1. Our hydraulic oil mill machine can help you press different raw matrial, such as coconut, sesame, peanut, avocado, passion seeds and so on.
2. The following picture is show you different cooking oils be pressed by our hydraulic oil making machine, you can get any oil you want by our Samll Oil Press Machine.
Packing and Shipping of Hydraulic Oil Mill Machine:
1.We focus on every details, including packing and shiping of oil mill machine.
2.Using the layer film packing and export standard wooden case to make sure you will receive the perfect machine
3.Any special packing require contact us, we can customized for you.

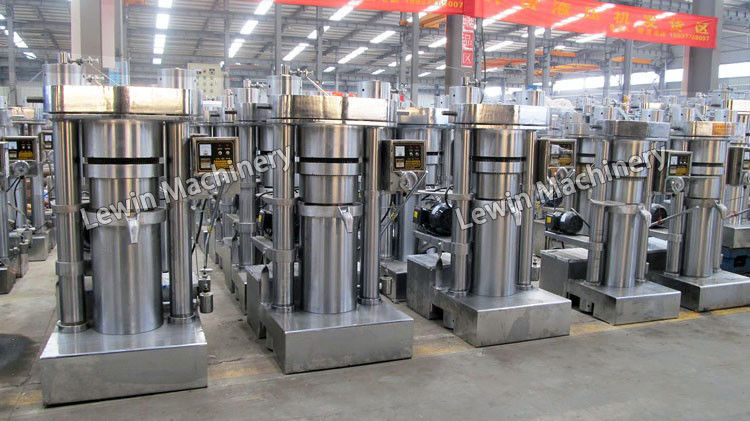

Workshop Display of Hydraulic Oil Mill Machine:
1. Q:Does your factory accept customization?
A:As a professional manufacturer, we can do almost any kind of customization.
2.Q:Can you guarantee the quality of your machine?
A:We are a professional manufacturer with strict quality requirements
3. Q:How long can I use it?
A:15-20 yeas, longer service life.
4. Q:How do I choose a model that suits me ?
A:You need tell us your oil raw materials and capacity demand etc.
Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
Please let us know what raw material do you want to press and how much output do you
want, so that we can recommed a machine to meet your needs, and provide the best
experience for you!!!
Any interest please contact us via +86 15638538062
