Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa

Minimum Order Quantity : 1 set Price : $ 4500 per set
Packaging Details : Wooden case package / Customized Delivery Time : 7-10 working days
Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram Supply Ability : 100 sets per month
Place of Origin: Henan , China Brand Name: Lewin
Certification: ISO CE Model Number: 6YY- 250

Detail Information

Machine Name: Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa Machine Material Of Coconut Oil Making Machine: Alloy Material
Coconut Oil Making Machine Model: 6YY - 250 Voltage Of Hydraulic Coconut Oil Making Machine: 380V / 220V
Weight Of Oil Extracting Machine: 1070 Kg Working Pressure Of Oil Extracting Machine: 60 Mpa
Press Kettle Diameter: 250 Mm Motor Power Of Coconut Oil Making Machine: 1.1 KW
Oil Rate Of Coconut Oil Making Machine: 96%
High Light:

60Mpa Hydraulic Coconut Oil Making Machine

,

96% Coconut Oil Making Machine

,

60Mpa Coconut Oil Extracting Machine

Product Description

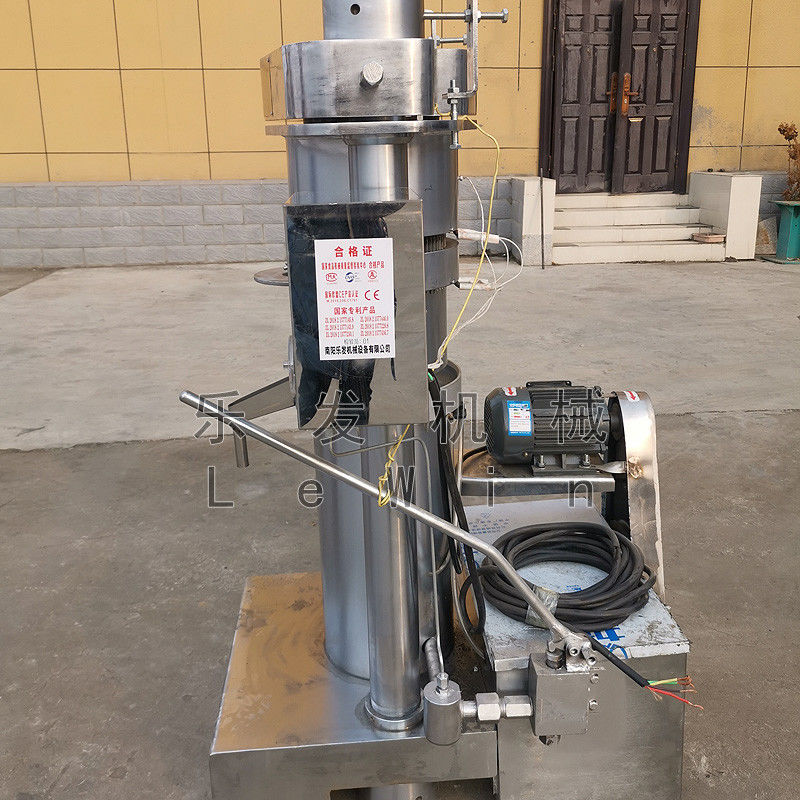

Hydraulic coconut oil making machine oil extracting machine 60Mpa


I. Hydraulic coconut oil making machine:
Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 0

1. Our hydraulic oil extracting machine can press kinds of materials, like walnut, almond, sesame, linseed and etc.



2. Hydraulic oil extracting machine 60mpa is small, take less area.



3. The hydraulic coconut oil making machine is Automatic operation, easy to operate, 1 person can operate 3-4 sets machine.



4. Hydraulic oil extracting machine 60Mpa use alloy steel, it' higher quality.



Hydraulic coconut oil making machine structure and function

Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 1

Our oil extracting machine 60Mpa  is made of working table, pressing kettle, control panel, pressure gauge, pressure release valve, hydraulic oil tank and large screw.



The hydraulic oil tank is the important part, it's heart of oil extracting machine 60Mpa.





Hydraulic coconut oil making machine parameter:

Model
Capacity
(kg/batch)
Weight
(kg)
Power
Working pressure
Dimension(m)
Residual oil
6YY-185
4
590
1.1 kw
60 MPa
0.6*0.88*1.15
≤5%
6YY-230 A
8.5
924
1.1 kw
60 MPa
0.67*0.95*1.46
≤5%
6YY-230 B
9.5
950
1.1 kw
60 MPa
0.67*0.95*1.56
≤5%
6YY-250
11
1070
1.1 kw
60 MPa
0.71*0.95*1.56
≤5%
6YY-270
13.5
1230
2.2 kw
60 MPa
0.75*1.01*.164
≤5%
6YY-300
16
1600
2.2 kw
60 MPa
1*1.1*1.66
≤5%
6YY-335
20
1750
2.2 kw
60 MPa
1.1*.124*1.73
≤5%
6YY-355
23
2350
3.0 kw
60 MPa
1.16*1.2*1.81
≤5%

II. Hydraulic coconut oil making detail:

Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 2

Quality assured of hydraulic coconut oil making machine:

1. Large screw of coconut oil making machine: It adopts Wuyang material, high quliaty steel and big hardness to ensure the long service life and safety of user.



2. Pressure gauge with electric contact: The part can control the pressure to ensure the safty of operation people.



3. Motor shield: The motor shield can avoid damage to the motor from outside.



Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 3Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 4

    Large screw                                                  Pressure gauge with electric contact





Why our coconut oil making is high oil yield:

1Oil line: The oil line is smooth, there will be no residual.



2. Pressure gague: It has high working pressure, so it can offer the higher power to press the material to ensure the high oil yield.



3. Solid piston: It can press material clean to get more oil.



4. Hydraulic tank: It can provide the high power to press the raw material to ensure the high oil yield.



Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 5Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 6

                             Smooth oil line                                            High working pressure



Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 7Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 8

                             Solid piston                                                   Hydraulic tank



III. Company
Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 9
Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 10



IV. Service we can offered you
1.Offer the most suitable solution for you.


2. Visiting our factory.


3. Testing machine for you.


4. Always online to help you.


5. Delivery products immediately after receipt tje payment.


6. Change voltage according to your needs.


7. Operation manual, operation video and install video.

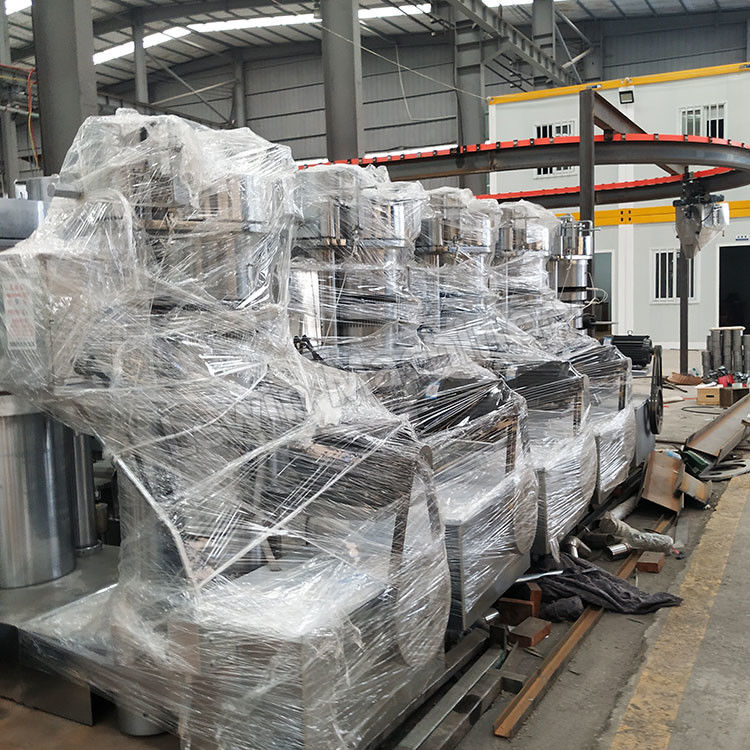

V. Packing & Delivery



1. Packing:

Wooden case package with film.



2. Delivery:

- By sea.

-7-10 working days.

Hydraulic Coconut Oil Making Machine Oil Extracting Machine 60Mpa 11




VI. Generally question:



Q: What is different of cold and hot press

A: Cold press is no roasting before pressing, the oil quality is higher. Hot press is roasting before pressing, the oil yield is higher.



Q: What do you support the MOQ?

A: MOQ is 1 set.



Q: How about your machine warranty

A: We offer 1 year warranty. We can offer you video- call service.


Q: Can this machine work with different materials?
A: Yes, it can work with different materials.



Q: If I don't know how to operate machine, what should I do?

A: We can offer you manual and oepration video. We also can offer you online service.
