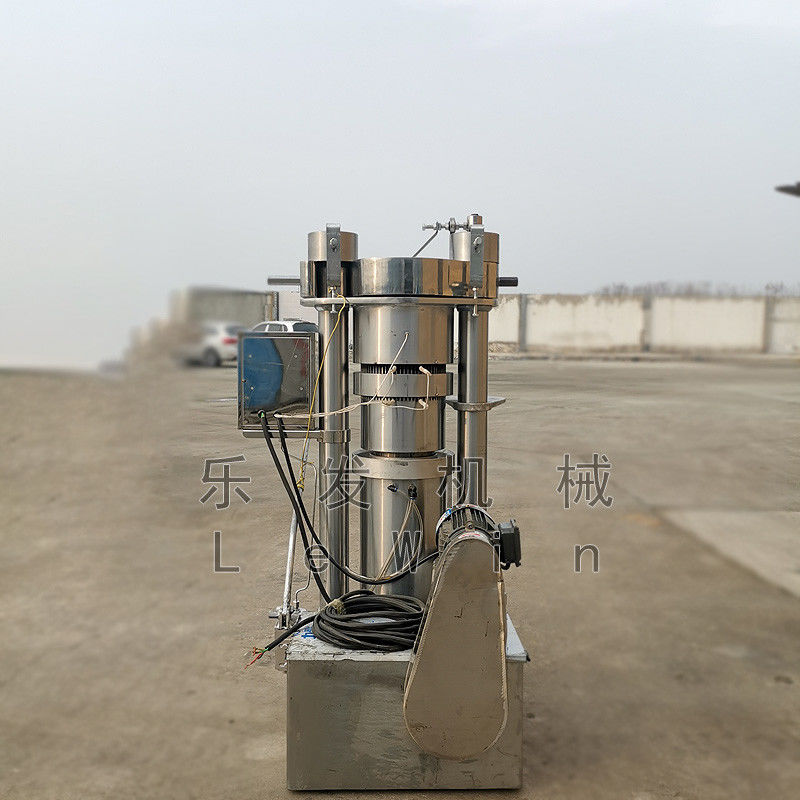

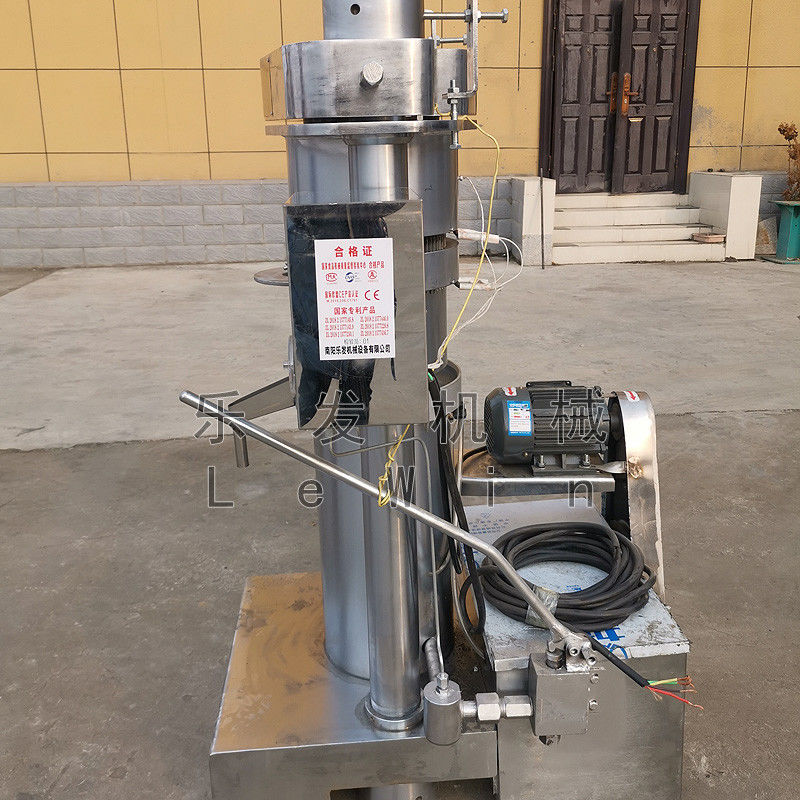

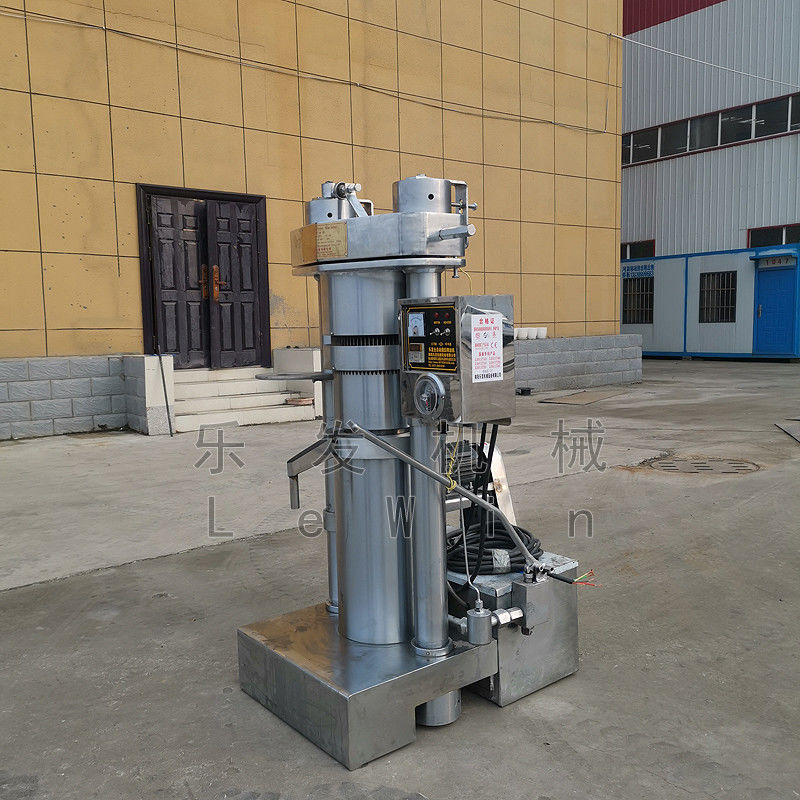

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller

50 Kg/H Small Oil Plant

Hot Cold Small Oil Plant

50 Kg/H Hot Cold Oil Expeller

Place of Origin:

Henan province, china

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-250

Contact Us

Request A Quote
Product Details
Machine Name:
Hydraulic Oil Press Machine
Warranty:
1 Year
Dimension:
710*950*1560 Mm
Condition:
New
Advantage:
High Oil Yield
Voltage:
380V/220V Optional
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

50 kg/h smaller oil plant hydrauic oil pressers

cold and hot oil expeller

About hydraulic oil press machine?

1. LEWIN fully automatic  hydraulic oil pressers is a new condition hydraulic oil presser that Combining the characteristics of traditional oil pressers, and improving in terms of oil extraction

2. It is easy to use, easy to operate, and has high oil yield.



Working principle

The working principle is that the when the oil seeds is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, product oil will be outflow from the gap of press boring, and then pass the oil drip pan to the drum for oil storage.

Model Table:

Model 6YY-185 6YY-230B 6YY-250 6YY-300 6YY-335
Weight 550kg 950kg 1070kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 1.1kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 2.2kw 4.0kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity 4kg/batch 9.5kg/batch 11kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

670*950*1560
710*950*1560
1000*1100*1660
1100*1240*1730



Oil Material of hydraulic oil making machine

It is a new condition for extracting high oil crops, for example peanut, coconut, sunflower seeds, sesame, mustard and etc.

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 0

If you want to process other special raw material, please cantact us to ensure.

Advantages

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 1

Workflow

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 2

This one is simple oil line for sesame oil, you can get pure and healthy oil through it.
We have professional engineer team who can design oil line for you according to your requirements.

Simple operation

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 3

Our machines are easy to operate and can be operated by one person. We will provide you with videos to guide you in the installation and operation of the machine.If necessary, we can also arrange an engineer to go to the site to guide.

Our service

Provide quality service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Before delivery

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 4

Packing and shipping

We have in enough stock and can arrange shipping for you as soon as possible.

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 5

Company information

50 Kg/H Small Oil Plant Hydrauic Hot Cold Oil Expeller 6
