Place of Origin:
China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-250
Contact Us
Video
Smller machine Hydraulic oil press machine automatic home oil expper device cold
Product Information
About hydraulic oil machine:
1. The oil extraction equipment can save labour and cost, just one person can operate it.
2. Our hydraulic oil press machine adopt physical method to press oil to keep the essence not destroyed.
3. The max working pressure can up to 60Mpa, offers stronger power to press, save time.

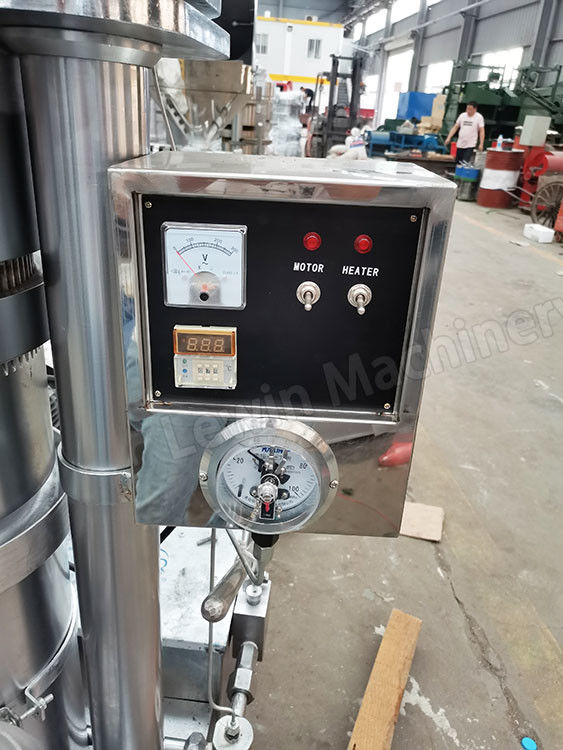

4 High automatic level, Just two botton to control the machine, very easy to operate and cover a very small space, it is a best choice for you to start a new business.
Operating priciple of hydraulic oil press machine:
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
About oil seeds,
1. The hydraulic oil extraction machine is suitable for direct processing of rape, peanut, sunflower seed, sesame,
palm,almond,perilla,olive and other oil crops.
2. If you want to process other special raw material, please cantact us to ensure.
We have differnt models of hydraulic oil press machine for you choose!
| Model | 6YY-185 | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 |
| Weight | 550kg | 1060kg | 1230kg | 1600kg | 1750kg |
| vacuum Power | 1.1kw | 1.1kw | 2.2kw | 2.2kw | 2.2kw |
| 3phase | 2.2kw | 2.2kw | 4.0kw | 4.8kw | 4.8kw |
| Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
| Capacity (Kg/h) | 4kg/batch | 11kg/batch | 13.5kg/batch | 16kg/batch | 20kg/batch |
| Dimension(mm) | 600*880*1150 | 710*950*1560 | 750*1010*1640 | 1000*1100*1660 | 1100*1240*1730 |
| Residual oil | ≤5% | ≤5% | ≤5% | ≤5% | ≤5% |
If you need larger or smaller capacity, we could offer customization service.
Details
All the goods will be inspected by our own quality inspection department, through the advanced machine to make sure no problem.
Advantages:
1. Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2. High oil yield, pure oil, no filtration.
3. The oil is squeezed once, the speed is fast, and the labor intensity is small.
4. It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Packing and shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Before delivery
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
