Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 250
Contact Us
I. Our hydraulic avocado oil press machine
1. Our hydraulic avocado oil press machine is suitable for kinds of materials, like avocado, almond, sesame, walnut, avocado and etc.
2. Hydrauclic cooking oil making machine take less area, saving space.
3. Hydraulic avocado oil press machine is automatic operation, easy to operate, 1 person can operate 3-4 sets oil machine.
4. Hydraulic cooking oil machine material is alloy steel, it' higher quality.
Main structures of auto hydraulic aovcado oil press machine

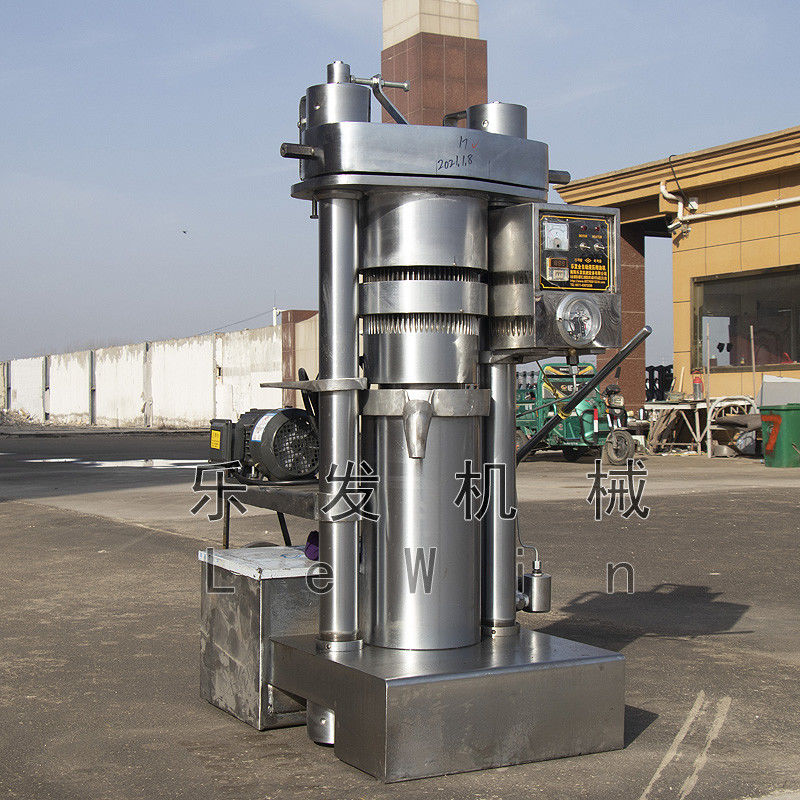

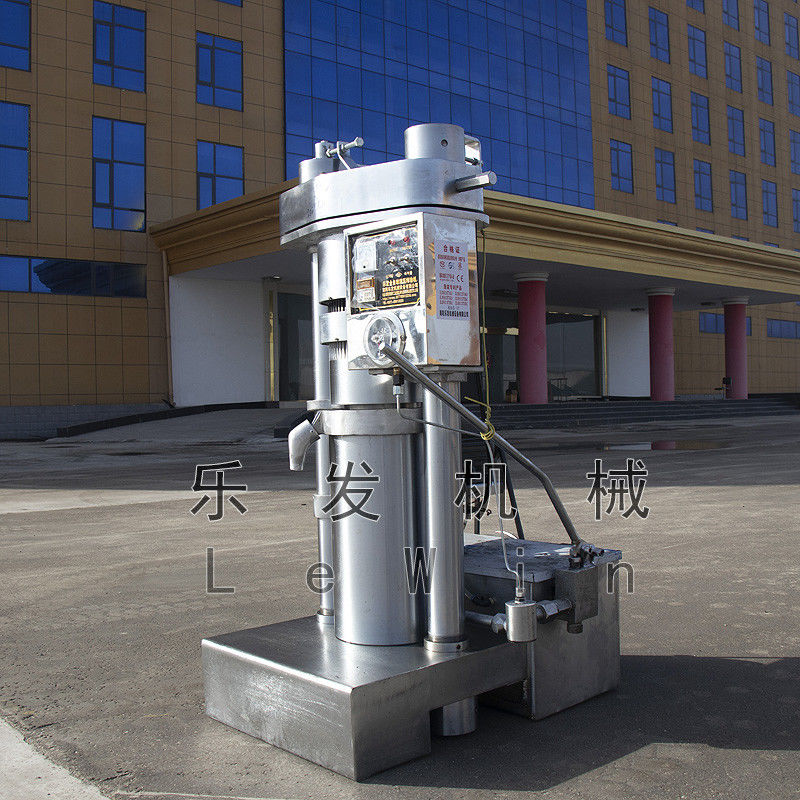

Our hydraulic avocado oil press machine is made of working table, kettle, the hydraulic tank, control panel, pressure gauge, pressure release valve and big screw.
The important part is hydraulic oil tank, it's heart of hydraulic avocado oil press machine.
Parameter of hydraulic avocado oil press machine
Model
|
Capacity
(kg/batch)
|
Weight
(kg)
|
Power
|
Working pressure
|
Dimension(m)
|
Residual oil
|
6YY-185
|
4
|
590
|
1.1 kw
|
60 MPa
|
0.6*0.88*1.15
|
≤5%
|
6YY-230 A
|
8.5
|
924
|
1.1 kw
|
60 MPa
|
0.67*0.95*1.46
|
≤5%
|
6YY-230 B
|
9.5
|
950
|
1.1 kw
|
60 MPa
|
0.67*0.95*1.56
|
≤5%
|
6YY-250
|
11
|
1070
|
1.1 kw
|
60 MPa
|
0.71*0.95*1.56
|
≤5%
|
6YY-270
|
13.5
|
1230
|
2.2 kw
|
60 MPa
|
0.75*1.01*.164
|
≤5%
|
6YY-300
|
16
|
1600
|
2.2 kw
|
60 MPa
|
1*1.1*1.66
|
≤5%
|
6YY-335
|
20
|
1750
|
2.2 kw
|
60 MPa
|
1.1*.124*1.73
|
≤5%
|
6YY-355
|
23
|
2350
|
3.0 kw
|
60 MPa
|
1.16*1.2*1.81
|
≤5%
|
II. Our avdantage
Quality assured of our oil machine:
1. Big screw: It use Wuyang material, good quality steel and big hardness to ensure the long service life and safety of user.
2. Pressure gauge with electric contact: It can control the pressure to ensure the safty of operation people.
3. Motor shield: The motor shield can avoid damage to the motor from outside.
Large screw Pressure gauge with electric contact
Why us say the hydraulic cooking oil making machine is high oil yield:
1. Oil line: The oil line is smooth, there will be no residual.
2. Pressure gague: It has high working pressure, so it can offer the higher power to press the material to ensure the high oil yield.
3. Solid piston: It can press material clean to get more oil.
4. Hydraulic tank: It can provide the high power to press the raw material to ensure the high oil yield.
Smooth oil line High working pressure
Solid piston Hydraulic tank
III. Company
IV. Service
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
V. Packing & Delivery
1. Packing:
Our professional delivery team use wood case packing machine.
2. Delivery:
- By sea.
-7-10 working days.
