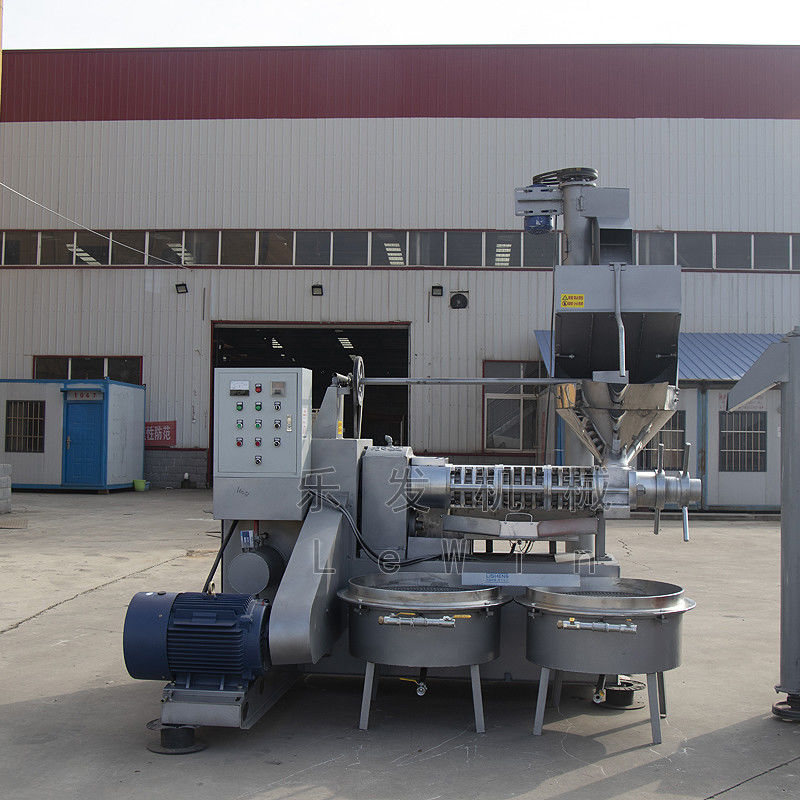

300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine

300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine

600 Kg/H Peanut Oil Extraction Machine

300 Kg/H Peanut Oil Extraction Machine

600 Kg/H Sunflower Oil Making Machine

Place of Origin:

Henan Province

Brand Name:

Lewin oil press machine

Certification:

ISO CE

Model Number:

6YL-160

Contact Us

Request A Quote
Product Details
Machine Name:
Peanut Oil Extraction Machine Sunflower Oil Making Machine With High Quality
Machine Model:
6YL-160
Capacity Of Peanut Oil Extraction Mcahine:
300-600 Kg/h
Power Of Peanut Oil Extraction Machine:
30 KW
Vacuum Power:
2.2 KW
Squeezer Speed:
60-100RPM
Weight:
1900 Kg
Oil Rate:
96%
Shipping:
By Sea
HS Code:
8479200000
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$ 7100 per set
Packaging Details
Wooden case package/ Customized
Delivery Time
7-10 working days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Peanut oil extraction machine sunflower oil making machine with high quality

300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine 0



What can oil making machine used for?



The oil makig machine can used for cold and hot producing peanut oil, sunflower oil, rapeseed oil, mustard oil, avocado oil, palm oil, castor oil and etc. And the oil quality is high.


What parts of the machine?

The peanut making machine including motor, screw system, L type feeding system, vacuum filter system, contronl panel system, hopper and etc.
1. Motor including 3 motor: 1). main motor 2). Ltype feeding system motor 3). Vacuum filter motor
2. screw system incluiding: screw squeezer, row, screw cage and oil cake outlet.
300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine 1


How does our machine work?
At first, you need put your mateiral into hopper, the material was pushed by the press screw and squeezing during the pushing by the different capacity of the press kettle, the oil will discharge from the space of the cage bar or the oil pocket. After the vacuum oil filter, the quality of the oil can be reached to the cooking grade.


300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine 2




Paramter of peanut oil extraction machine

Model of peanut oil extraction machine 6YL-160
Machine size 2650*1900*2700mm
Weight 1900kg
Power of peanut oil extraction machine 30kw
Vacuum power 2.2kw
Rotary speed 60- 100 RPM
Capacity(kg/h) 300- 600

Advantage:

1. The 6YL-160 peanut oil extraction machine is automatically machine, easy to operation, 1 women can operate it well.

2. The 6YL- 160 sunflower oil making machine use high quality material, it can make sure machine quality, to extend the use life of machine.

3. The oil making machine use famouse motor in domestic, long use life and no noise.

4. The motor is large, it can offer enough power to press material.

5.  The screw squeezer diameter is large then other similar machine, it can press material cleanly.

6. We have professional team to offer you best solutions.

7. We also have professional after- service team, we can offer you best after- service and solve your problems within 24 hours.

8. We are Lewin oil press machine, we have 23 years experience for oil press machine, so we can make sure offer you high quality machine and nice service.


300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine 3
All working processes are controlled by the controlling panel

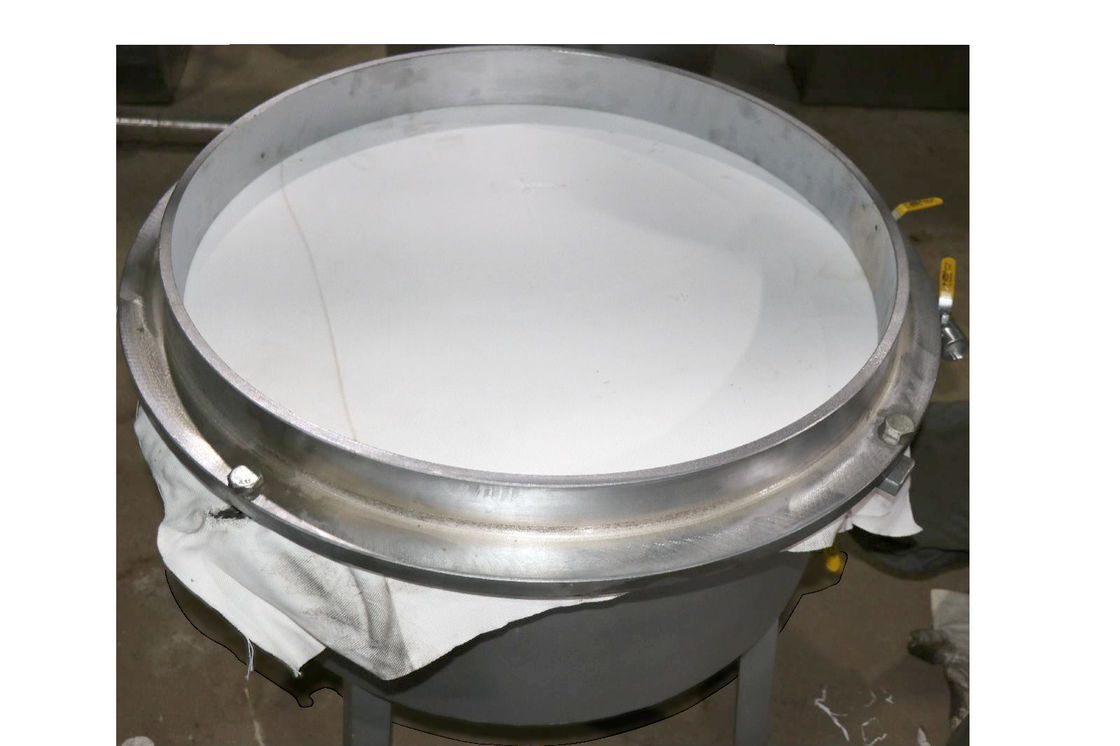

If one drum is full it would change to use the other and automatically put the oil out of the drum.
300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine 4

300-600 kg/h Peanut Oil Extraction Machine Sunflower Oil Making Machine 5
