Sesame 9.5kg/Batch 60Mpa Hydraulic Oil Press Machine

Sesame 9.5kg/Batch 60Mpa Hydraulic Oil Press Machine

60Mpa Hydraulic Oil Press Machine

9.5kg/Batch Hydraulic Oil Press Machine

Hydraulic Sesame Oil Press Machine

Place of Origin:

China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY-250

Contact Us

Request A Quote
Product Details
Model:
6YY-250
Name:
Hydraulic Oil Press Machine
Weight:
1070kg
Pressure:
60Mpa
Cake Diameter:
230mm
Capacity:
9.5kg/batch
Machine Materials:
Aerospace Steel
Advantage:
High Oil Yield
Feature:
Automatic
Keywords:
Oil Maker Machine
Power:
1.1kw
Oil Residual:
Less Than 3%
Payment & Shipping Terms
Minimum Order Quantity
1set
Packaging Details
Film packaging+wooden case
Delivery Time
3-10 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
300 sets/month
Product Description
60 Mpa High Pressure Hydraulic Oil Press Machine For Sesame Peanut With 0.36 Mm Oli Lines ​


Describtion:
1. Our hydraulic oil press machine applied the supercharged technology and five class safety protection system,

2. Offer the enough pressure and keep the machine working safety.

3. Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.  High precision structure hydraulic system suppose higher pressure.




Parameters:

Model Pressure (Mpa) Power (kw) Oil cake diameter (mm) Capacity (kg/batch) Dimension (mm3) Weight (kg)
6YY-185 60 1.1 185 4 600*880*1150 590
6YY-230A 60 1.1 230 8.5 670*950*1460 924
6YY-230B 60 1.1 230 9.5 670*950*1560 950
6YY-250 60 1.1 250 11 710*950*1560 1070
6YY-270 60 2.2 270 13.5 750*1010*1640 1230
6YY-300 60 2.2 300 16 1000*1100*1660 1600
6YY-335 60 2.2 335 20 1100*1240*1730 1750
6YY-355 60 3 355 23 1160*1200*1810 2350

If there is no model suitable, we can customize it for you.




Advantages:
1. The control system:
    (1). It include thermometer, ammeter, machine and heating switch, and pressure gauge.
    (2). It's easy to operate, one-key operation.
    (3). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.
2. The hydraulic system of hydraulic oil machine:
    (1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can  reach 60 Mpa.
    (2) The hydraulic oil can be recycled, it can help you save costs.
3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.
4. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.
5. Pressure release valve Automatic release system, control the suitable working pressure, press multiple times, improve the oil yield.





Detailed information:

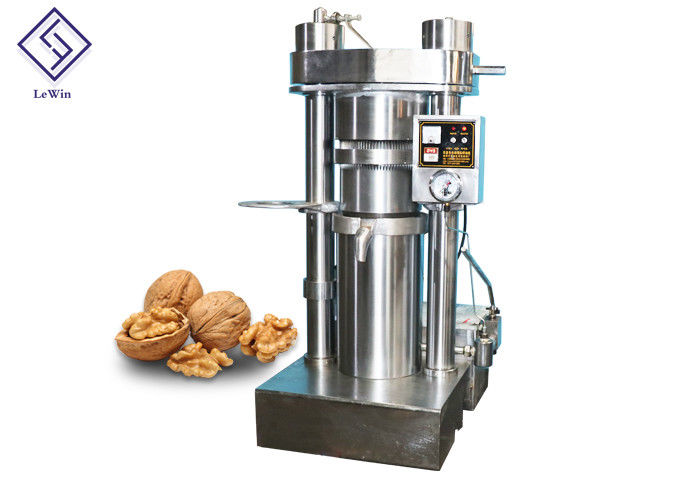

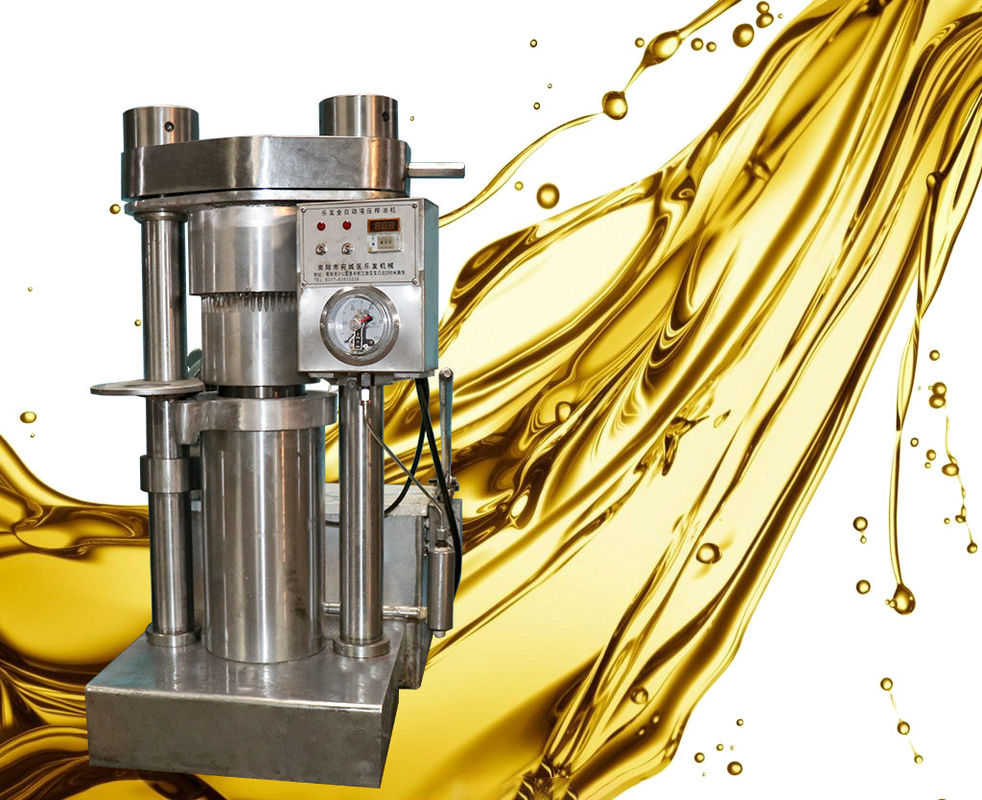

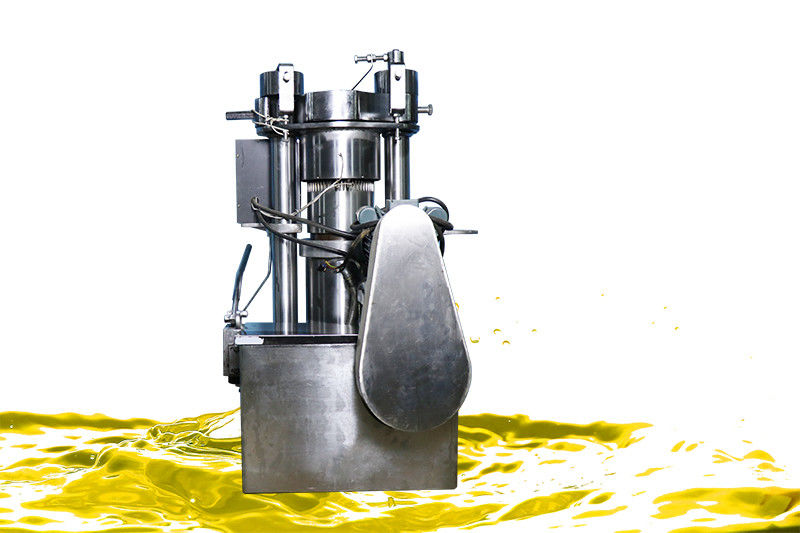

Sesame 9.5kg/Batch 60Mpa Hydraulic Oil Press Machine 0Sesame 9.5kg/Batch 60Mpa Hydraulic Oil Press Machine 1



Coustermers :
Sesame 9.5kg/Batch 60Mpa Hydraulic Oil Press Machine 2

Workshop Display:
Sesame 9.5kg/Batch 60Mpa Hydraulic Oil Press Machine 3

FAQ:
1.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements


2. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.



3.Q:Does your factory accept customization?
A:As a professional manufacturer, we can do almost any kind of customization.


4. Q:How long can I use it?
    A:8-10 yeas, longer service life.

5. Q:What's the delivery time?
    A:Generally after paying the final payment 3-5 days.

Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
