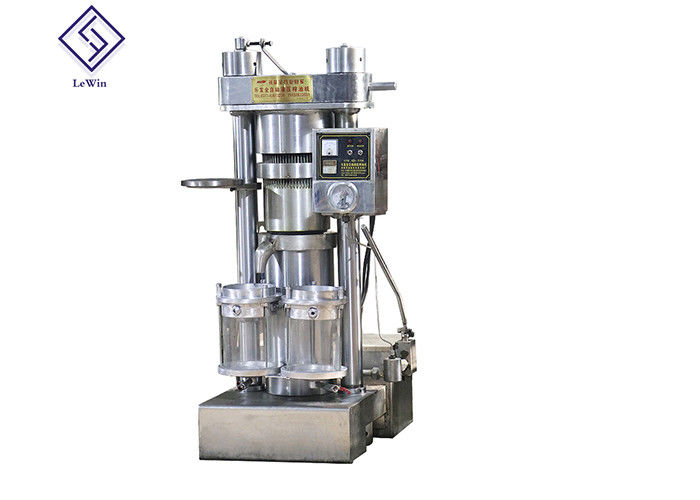

270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine

270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine

13.5kg/Batch Soybean Oil Press Machine

2.2kw Soybean Oil Press Machine

60Mpa Hydraulic Oil Expeller Machine

Place of Origin:

China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY-270

Contact Us

Request A Quote
Product Details
Name:
Hydraulic Oil Expeller Machine
Weight:
1230kg
Power:
2.2kw
Dimension:
0.75*1.01*1.64m
Pressure:
60Mpa
Cake Diameter:
270mm
Capacity:
13.5kg/batch
Machine Materials:
Earospace Steel
Advantage:
High Oil Yield
Feature:
Long Service Life
Color:
Silver
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1set
Packaging Details
Film packaging+wooden case
Delivery Time
3-10 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
300 sets/month
Product Description
60 Map 6YY-270 Hydraulic Oil Press Machine For Factory Price With High Pressure​


Describtion:
Our hydraulic oil press machine applied the supercharged technology and five class safety protection system, offer the enough pressure and keep the machine working safety.

Separately and more perfect oil line technology applied, keep the press kettle strong enough and increase the oil yield.  High precision structure hydraulic system suppose higher pressure.


Advantages:
1. The control system:
    (1). It include thermometer, ammeter, machine and heating switch, and pressure gauge.
    (2). It's easy to operate, one-key operation.
    (3). It's can monitor the system pressure in real time to ensure that the oil machine works smoothly.
2. The hydraulic system of hydraulic oil machine:
    (1) It is the core part of our oil mill machine which provides enough power for the oil machine to improve the oil productivity and the pressure can  reach 60 Mpa.
    (2) The hydraulic oil can be recycled, it can help you save costs.
3. Precise oil line (0.36mm) : Filter the residue, improve the oil productive, and the oil can reach the edible level directly.
4. Solid piston Higher pressure, pressing more thorough and cleaner./ Our piston is solid, provide more pressure to the machine, increase the oil rate.

Parameters:

Model Pressure (Mpa) Power (kw) Oil cake diameter (mm) Capacity (kg/batch) Dimension (mm3) Weight (kg)
6YY-185 60 1.1 185 4 600*880*1150 590
6YY-230A 60 1.1 230 8.5 670*950*1460 924
6YY-230B 60 1.1 230 9.5 670*950*1560 950
6YY-250 60 1.1 250 11 710*950*1560 1070
6YY-270 60 2.2 270 13.5 750*1010*1640 1230
6YY-300 60 2.2 300 16 1000*1100*1660 1600
6YY-335 60 2.2 335 20 1100*1240*1730 1750
6YY-355 60 3 355 23 1160*1200*1810 2350

If there is no model suitable, we can customize it for you.


Detailed information:
270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 0270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 1270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 2

Packing and Shipping:

270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 3

Coustermers and Feedback:
270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 4
270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 5
Workshop Display:
270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 6270mm Cake Diameter 13.5kg/Batch Soybean Oil Press Machine 7

FAQ:
1.Q:Can you guarantee the quality of your machine?
   A:We are a professional manufacturer with strict quality requirements

2.Q:Does your factory accept customization?
   A:As a professional manufacturer, we can do almost any kind of customization.

3. Q:How do I choose a model that suits me ?
    A:You need tell us your oil raw materials and capacity demand etc.

5. Q:What's the delivery time?
    A:Generally after paying the final payment 3-5 days.

Notes: Be careful not to raise the plunger too high when the cake is out, to prevent the hydraulic oil from coming out and the seal ring from being damaged.
