Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 185
Contact Us

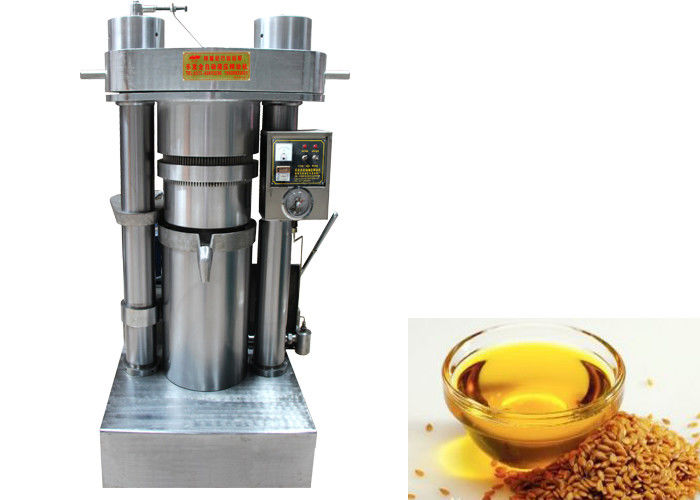

1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.
2. This machine can work with many kinds of oil seeds well.
3. This machine can work continuously for 24 hours. It can squeeze 4 kilogram per batch, the perssing time is 8-15 minutes.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
5. The material of this machine is alloy that can make sure the safety.
Appliction range
This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.
Parameter:
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.
Workflow( Cold press):
Workflow( Hot press):
Operation step:
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
