37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability

Product Details:
Place of Origin: Henan, China(Mainland)
Brand Name: Lewin
Certification: ISO CE
Model Number: 6YL-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case package/ Customized
Delivery Time: 7-10 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, Money Gram, Paypal
Supply Ability: 100 sets per month

Detail Information

Name: Biggest Capacity Screw Oil Pressing Machinery Oil Extractor For Factory Model: 6YL-180
Oil Rate: 96% Power: 37 KW
Vacuum Power: 2.2 KW Squeezer Speed: 60-100 RPM
HS Code: 8479200000 Weight: 1980kg
Shipping: By Sea Package: Wooden Case
High Light:

cold press expeller machine

,

hydraulic oil extractor

,

electric oil press machine

Product Description

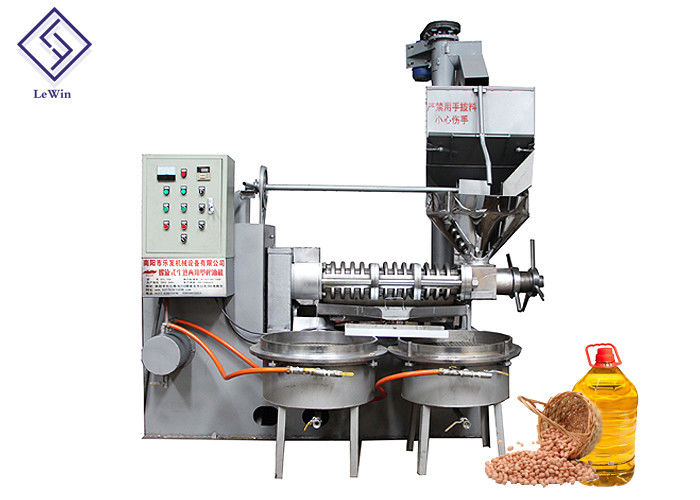

Biggest capacity screw oil pressing machinery oil extractor for factory


Production intruction





Feature

1. Easy operating and small size, saving land, labor and energy consumption,

2. Big pressing force in the chamber, making high oil output,

3. Long-term continuous work, bring better economic benefit to user,

4. Good quality and long durability, made of the most suitable material with refined treatments to ensure more than 10 years using,

5. Wearing parts can be dismountable,

6. Different design in squeeze chamber for both cold and hot pressing,

7. Multi-function combined auto-temperature control and oil vacuum filter,

8. Bevel gear technology make good performance when operating.



Working Principle :



1. Transferred by the triangle belt, the electromotor drives the spiral shaft.



2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.



3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.



4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.



5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.





Technical Parameters:

Model

Dimension (mm)

Weight

Power

Vacuum power

Rotary speed

Capacity(kg/h)

6YL-120 2000*1600*2700 1500kg 15kw 1.1kw 100-130 120-160
6YL-130 2150*1600*2700 1600kg 22kw 1.1kw 100-130 180-300
6YL-130(A) 2600*1600*2700 1650kg 18.5kw 1.1kw 100-130 160-280
6YL-150 2550*1800*2700 1800kg 30kw 2.2kw 100-130 220-450
6YL-160 2650*1900*2700 1900kg 30kw 2.2kw 100-130 300-600
6YL-180 2700*2000*2700 1980kg 37kw 2.2kw 100-130 400-750

Main parts photos

37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 0



37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 137KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 2

37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 337KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 4

37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 5

37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 6

Why choose us

1. Manules/Videos of machine installation, adjusting, setting, maintenance are available for you.



2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours;



3. Golden engineers & technician are available send to your countries for services if you agree pay the expenditure;



4. Warranty: 1 years (Electric accessories ) and free life time maintenance (Excluding freight) ;



5. Goldsen has an independent team for after-sale service. any emermancy please call the saleman or our after-sale's manager .



6.Full refund in case of bad quality or delay delivery.

37KW Power Nut Oil Press Machines / Cooking Oil Extraction Machine Long Durability 7



FAQ



Q: What is the Material?
A: Alloy material is stronger to ensure the safety of our machines.



Q: What about your package?

A: We use strong wooden case pakage to ensure the safety of our machine.



Q: How about delivery?

A: Generally we delivery the machine within 7-10 working days after receipt the deposit.



Q: What do you support the MOQ?

A: MOQ is 1 set.



Q: How long is your warranty?

A: We offer 1 year warranty.



Q: Whether the machine price can be more discount?
A: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately give you a little discount.
