Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 270
Contact Us

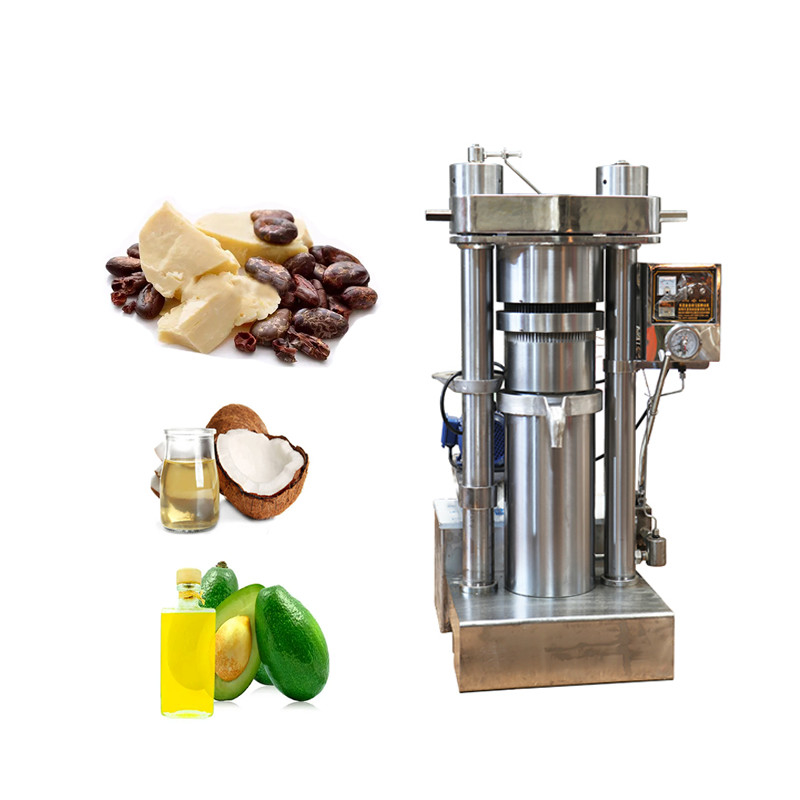

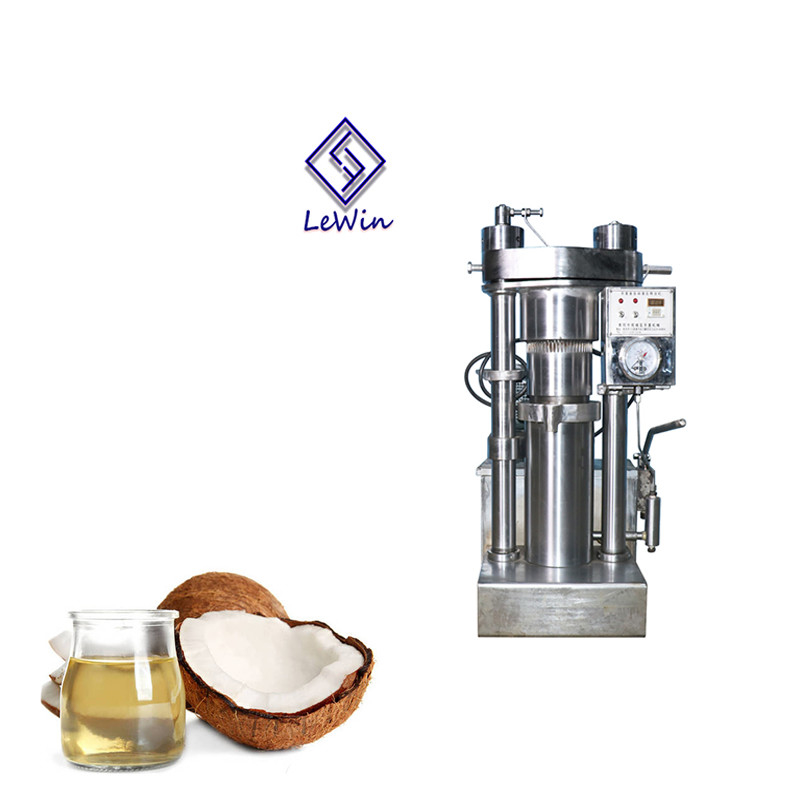

2.2 KW motor hydraulic making avocado olive oil processing machinery
1. This machine has the advantages of small volume and less land occupation; the operation is easy to learn, easy to understand, easy to operate, and needs not particular requirements to the operator.
2. This machine can save 50% power compared with stone mill.
3. This machine belongs to hydraulic oil press, and it has many advantages, such as high-pressure, high oil rate, and the oil of final product is very clean.
4. This machine adopts full automatic control system, and no matter the preheat temperature or the pressure of hydraulic system, it is all automatic control.
5. This machine can cold press( without heating) materials, it also have high oil rate.
Parameter:
| Model |
Capacity (kg/batch) |
Working pressure | Weight (kg) | Power(kw) |
Package Size(m) |
Oil cake diameter | Residual oil |
| 6YY-185 | 4 | 60Mpa | 590 | 1.1 | 0.78*1*1.58 | 185mm | <2% |
| 6YY-230A | 8 | 60Mpa | 924 | 1.1 | 0.78*1*1.58 | 230mm | <2% |
| 6YY-230B | 9 | 60Mpa | 950 | 1.1 | 0.78*1*1.68 | 230mm | <2% |
| 6YY-250 | 11 | 60Mpa | 1070 | 1.1 | 0.78*1.04*1.71 | 250mm | <2% |
| 6YY-270 | 13 | 60Mpa | 1230 | 2.2 | 0.82*1.081*1.75 | 270mm | <2% |
| 6YY-300 | 16 | 60Mpa | 1600 | 2.2 | 0.94*1.14*1.81 | 300mm | <2% |
| 6YY-335 | 20 | 60Mpa | 1750 | 2.2 | 0.94*1.16*1.8 | 335mm | <2% |
| 6YY-355 | 23 | 60Mpa | 2350 | 3 | 1.04*1.24*1.92 | 355mm | <2% |
Usag range:
Our machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.
This machine applied the our new supercharged technology and five class safety protection system, offer the enough
pressure and keep the machine working safety. High precision structure hydraulic box can over higher pressure. Separately
and more perfect oil line technoloty applied, keep the press kettle strong enough and increase the oil rate.
Workflow( Hot press):
Cold press:
you could just put the raw materials into hydraulic machine.
Operation step:
