Place of Origin:
Henan, China(Mainland)
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YL-120
Contact Us

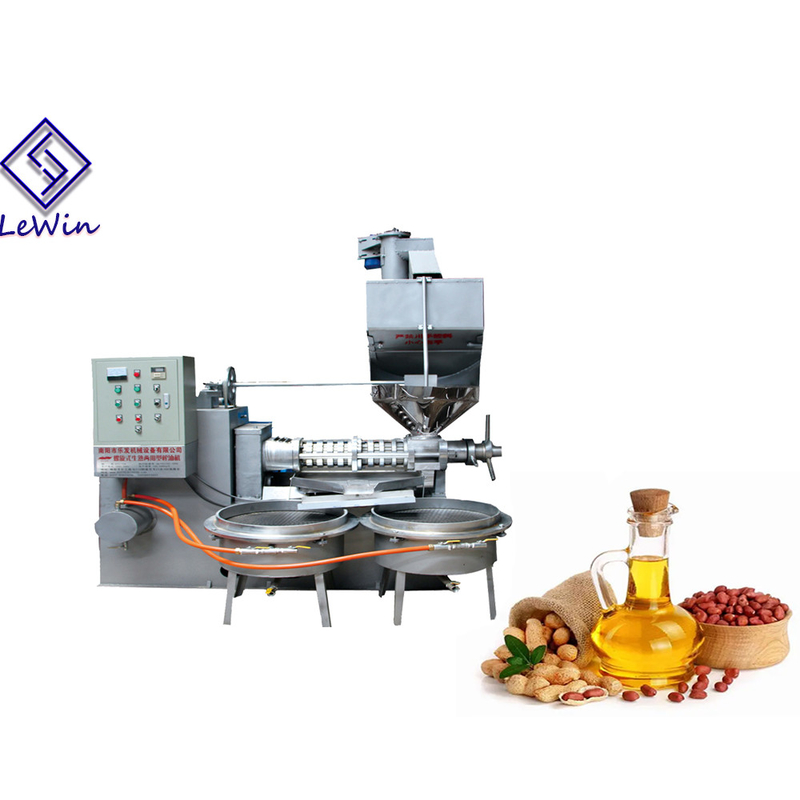

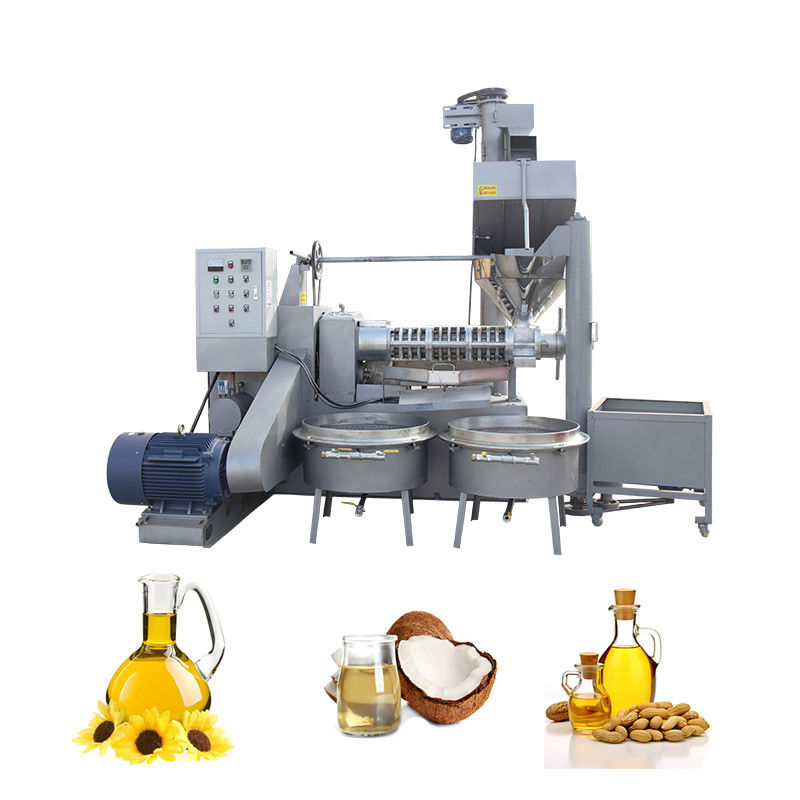

Our spiral oil press machine is advanced and new designed machine.
It can hot and cold press kinds of oil seeds.
This model can adjust the thickness of oil cake. And our machine equipped filter system and L type oil cake system, these system can press the oil cake clean.
The electric control cabinet of our machine is easy to understand and operate. Though this machine is large, but 1 pearson can operate it.
1. Power engine can provide more power to press materials to get more oil and to ensure the using safety.
2. Oil cake feeding system can press oil cake directly, it's can get more oil than other machine. If you don't want to get more oil cake, you also can no using it.
3. Squeezer is longer than other similar machines, it can be get more oil.
4. Electric cabinet is easy to operate, it's fully automatic. It also can adjust the temperature.
5. Oil filter can filter oil directly, it can get cleaner oil.
6. Oil cake: You can adjust the oil cake thickness. If you want to get more oil cake, you can make oil cake thick, otherwise, you can make the oil cake thinner.
7. Gearbox can adjust the speed to extand the squeezer using life.
8. Oil tank can storage the oil cake.
9. Hopper can storage the raw material and oil cake , oil cake though this part into squeezer to be pressed.
Oil rate parameter:
Machine paremeter:
|
Model |
Dimension (mm) |
Weight |
Power |
Vacuum power |
Rotary speed |
Capacity(kg/h) |
|
|---|---|---|---|---|---|---|---|
| 6YL-120 | 2000*1600*2700 | 1500kg | 15kw | 1.1kw | 100-130 | 120-160 | |
| 6YL-130 | 2150*1600*2700 | 1600kg | 22kw | 1.1kw | 100-130 | 180-300 | |
| 6YL-130(A) | 2600*1600*2700 | 1650kg | 18.5kw | 1.1kw | 100-130 | 160-280 | |
| 6YL-150 | 2550*1800*2700 | 1800kg | 30kw | 2.2kw | 100-130 | 220-450 | |
| 6YL-160 | 2650*1900*2700 | 1900kg | 30kw | 2.2kw | 100-130 | 300-600 | |
| 6YL-180 | 2700*2000*2700 | 1980kg | 37kw | 2.2kw | 100-130 | 400-750 | |
1. We have different models for you to choose.
2. According to your requirements, we can also customize for you.
Electric control panel
Intelligent control panel, reducing labor and making operation more convenient.
Squeezer Squeezer Cage
Vacuum motor Oil cake feeding system
Gearbox Squeezer
We have our own factory and warehouse, so we can guarantee the quality of the oil press machine, if there are any other questions about our oil pressing machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
24 online service.
Videos and manual for free.
Video call instruction.
1 year warranty.
