Place of Origin:
Henan , China(Mainland)
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 185
Contact Us

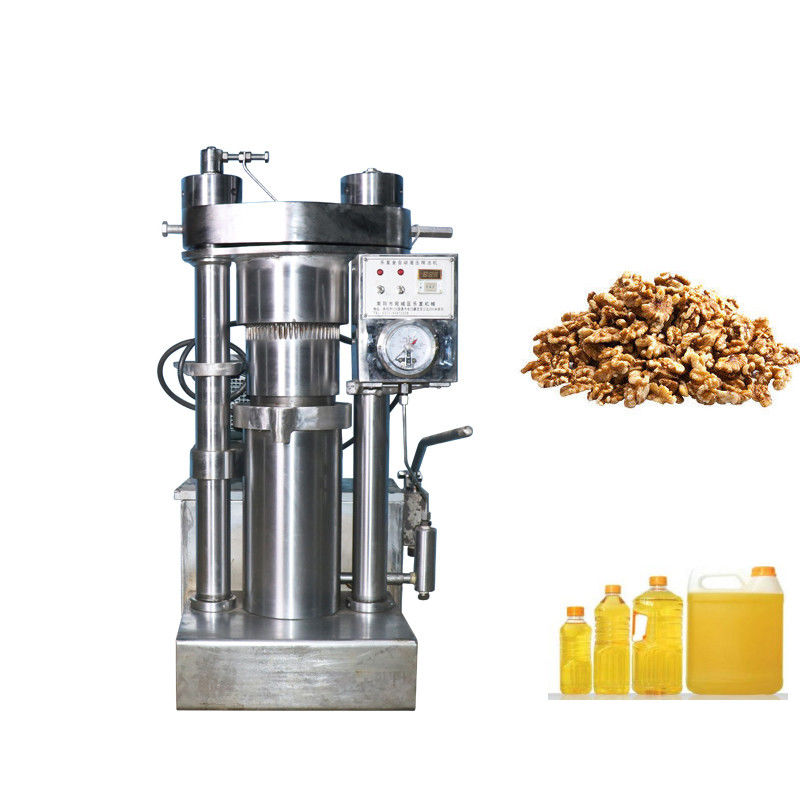

1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.
2. This machine can work with many kinds of oil seeds well.
3. This machine can work continuously for 24 hours. It can squeeze 4kilogram per batch, the perssing time is 8-15 minutes.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Usage:
This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.
Parameter:
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
|
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Work principle:
This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.
Cold press workflow:
II. Detail show
1. Large screw is high quality, it can protect the this machine to extend this machine use life.
2. Toop roof use Wugang Q345, it is enough strong to protect this machine.
3. Press kettle is high quality and safe.
4. Internal temperature control parts: this part is very important, it can adjust the temperature and it also can control the pressure. When the pressure is 60Mpa, the machine will stop working, the pressure will be released, when the pressure down to 50Mpa, machine will begain to press materials again, press repeatedly until the oil is squeezed clean.
5. Working table can put the oil cake and cotton pad to make the operating more convenient.
6. Release pressure bar: It can release the working pressure to protect the user's safety.
7. Relaese pressure valve: the function is same as release pressure bar.
8. Hydraulic tank: This is most important for this machine. It can provide the power for this machine to work.
9. Base use Wugang Q345 material, it is enough strong to support the weight of the entire machine.
III. Our service
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
IV. Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
