Product Description

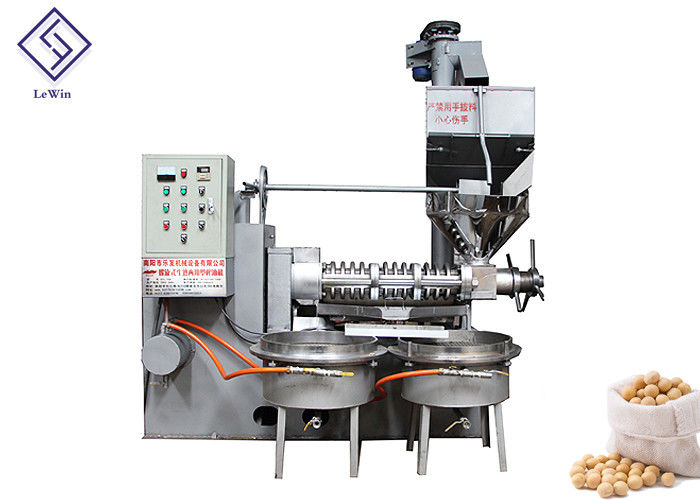

Screw type making soybean food edible oil machine with fully automatic
Production intruduction
Our machine:
1.Our automatic oil press has multiple functions, including vacuum filtration system, L type oil cake system.
2. The automatic oil press is matched with one controlling cabinet box for controlling all working of the machine
3. Labor saving and electricity saving, high oil yield and nice performance.
4. 6YL-120 automatic oil presser is advanced peanut, sunflower and other material oil machine, characterized by simple design, easy to operate, high production capacity and high oil output rate. Moreover, this kind of machine can be used for various raw materials, and depending on the oil content of particular crop you are pressing, the machine will extract about 95%-98% oil of it.
Technology data
|
Model
|
Dimension (mm)
|
Weight
|
Power
|
Vacuum power
|
Rotary speed
|
Capacity(kg/h)
|
| 6YL-120 |
2000*1600*2700 |
1500kg |
15kw |
1.1kw |
100-130 |
120-160 |
| 6YL-130 |
2150*1600*2700 |
1600kg |
22kw |
1.1kw |
100-130 |
180-300 |
| 6YL-130(A) |
2600*1600*2700 |
1650kg |
18.5kw |
1.1kw |
100-130 |
160-280 |
| 6YL-150 |
2550*1800*2700 |
1800kg |
30kw |
2.2kw |
100-130 |
220-450 |
| 6YL-160 |
2650*1900*2700 |
1900kg |
30kw |
2.2kw |
100-130 |
300-600 |
| 6YL-180 |
2700*2000*2700 |
1980kg |
37kw |
2.2kw |
100-130 |
400-750 |
1. We have different models for you to choose.
2. According to your requirements, we can also customize for you.
Detail Images
1. The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.
2. The infrared heating preheating temperature can be controlled to set the heating system, and the press can be pressed at the start.
3. The oil filter is dense so that the oil can be filtered clean.
4. The L shape of oil cake feeding system can directly press oil cake twice, to ensure the high oil yield.
5. The spiral squeezer is longer than others to make sure the oil can be squeezed cleaner.

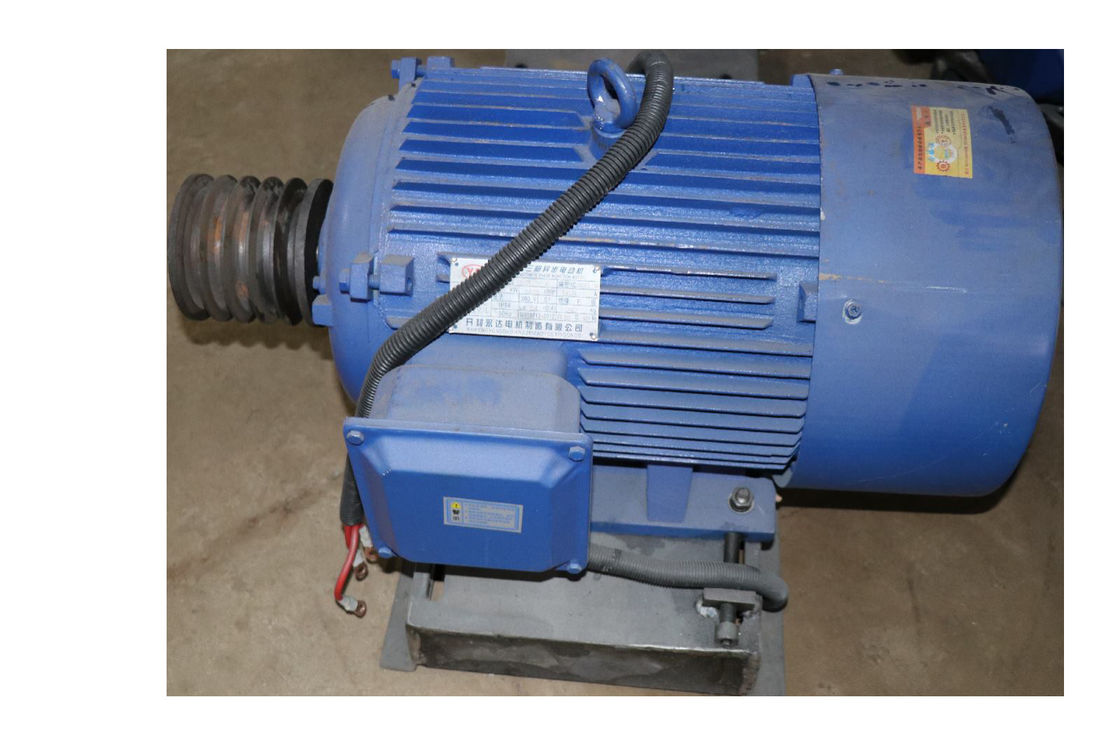

6. The motor can offer the higher power to press material.
Vacuum filter Srew squeezer
L type feeding system Motor
Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
Our service
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
