Small Type Olive Oil Cold Press Machine High Oil Rate 185 Mm Oil Cake Diameter

Small Type Olive Oil Cold Press Machine High Oil Rate 185 Mm Oil Cake Diameter

cold press expeller machine

hydraulic oil extractor

electric oil press machine

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY- 185

Contact Us

Request A Quote
Product Details
Name:
Small Type Olive Oil Processing Machine Oil Processing Machinery
Model:
6YY - 185
Usage:
Cold & Hot Pressing
Oil Rate:
98%
Weight:
590 Kg
Shipping:
By Sea
Pressure:
60 MPa
Oil Cake Diameter:
185 Mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$3000 per set
Packaging Details
Wooden case package / Customized
Delivery Time
7 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

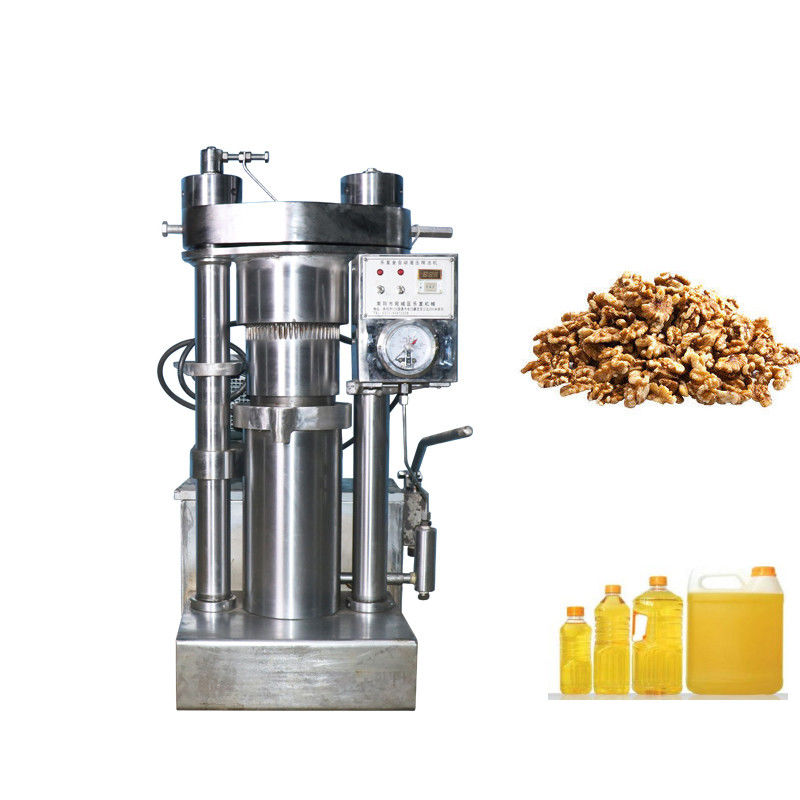

Small type olive oil processing machine oil processing machinery



Production description



1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.

2. This machine can work with many kinds of oil seeds well.

3. This machine can work continuously for 24 hours. It can squeeze 4 kilogram per batch, the perssing time is 8-15 minutes.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

5. The material of this machine is alloy that can make sure the safety.



Parameter:



Model

6YY-185

6YY-230A

6YY-230B

6YY-250

6YY-270

6YY-300

6YY-335

6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%

≤2%





Appliction range



This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.



Small Type Olive Oil Cold Press Machine High Oil Rate 185 Mm Oil Cake Diameter 0



The 6YY-185 hydraulic oil press parameter:


Small Type Olive Oil Cold Press Machine High Oil Rate 185 Mm Oil Cake Diameter 1



Work principle:



This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.



Small Type Olive Oil Cold Press Machine High Oil Rate 185 Mm Oil Cake Diameter 2



Packing & Delivery



Packing:



1. Standard export wooden case package.

2. Customized.



Delivery:



We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
