Place of Origin:
Henan, China(Mainland)
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YL-120
Contact Us

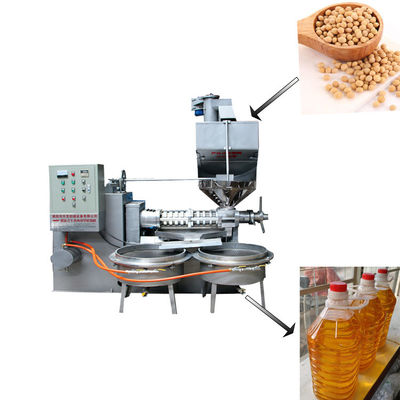

This kind of oil making machine utilizes the screw shaft which is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring. This oil press machine is in accordance with the standard JB/T9793.1-1999 for screw oil press for farm use.
This oil press machineis composed offeeder, gear box, pressing cage, screw shaft and machine stand etc.
This machine is suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame seed, tea seed, walnut, olive, corn germ, rice bran, safflower seed, seeds of hippophae rhamnoides and so on.
Working Principle of Screw Oil Press Machine
When the raw materials have been sent to the hopper of oil press machine and then been moved forward by the rotating pressing screw for pressing. Under the high-pressure condition in the chamber, friction between material and screw, chamber will be created, which also creates friction and relative movement among material particles. On the other hand, root diameter of the pressing screw caries larger from one end to the other, hence. When rotating, it not only pushes particles to move forward,but also turns them outwards as well. Meanwhile,particles adjacent the scew will rotate along with screw‘s rotating, causing every particle inside the chamber to possess different speed. Therefore, relative movement among particle creates heat which is necessary during manufacturing becasue of helping protein change property,damage colloid,increase plasticity, decrease oil’s elasticity, resulting in high oil productivity.
Cold press oil:
Advantages of Screw Oil Press Machine
♣energy saving: same output will reduce electric power 40%.
♣Labor saving: same output will save labor 60%, 1~2 person can organize production.
♣wide application: This machine is suitable for pressing peanut, sesame, rapeseeds, beans, sunflower seeds, oil seeds, etc. Multistage extracting, extracting well at one time.
♣pure oil quality: vacuum to filter residue, so as to ensure the pure oil quality, and reach health standard.
Paramter
|
Model |
Dimension (mm) |
Weight |
Power |
Vacuum power |
Rotary speed |
Capacity(kg/h) |
|
|---|---|---|---|---|---|---|---|
| 6YL-120 | 2000*1600*2700 | 1500kg | 15kw | 1.1kw | 100-130 | 120-160 | |
| 6YL-130 | 2150*1600*2700 | 1600kg | 22kw | 1.1kw | 100-130 | 180-300 | |
| 6YL-130(A) | 2600*1600*2700 | 1650kg | 18.5kw | 1.1kw | 100-130 | 160-280 | |
| 6YL-150 | 2550*1800*2700 | 1800kg | 30kw | 2.2kw | 100-130 | 220-450 | |
| 6YL-160 | 2650*1900*2700 | 1900kg | 30kw | 2.2kw | 100-130 | 300-600 | |
| 6YL-180 | 2700*2000*2700 | 1980kg | 37kw | 2.2kw | 100-130 | 400-750 | |
1. We have different models for you to choose.
2. According to your requirements, we can also customize for you.
We have our own factory and warehouse, so we can guarantee the quality of the oil press machine, if there are any other questions about our oil pressing machine, we can give you a best solution, in addition, We are factory direct sale, cut out the middleman, thus makes the price lowest for our customers. so if you need, please contact us freely!
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
