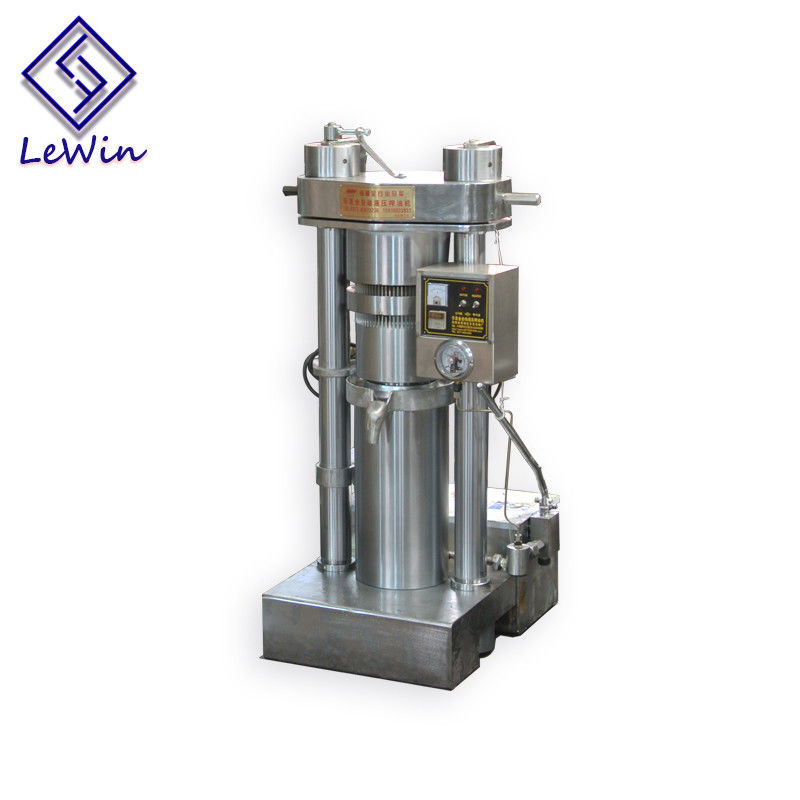

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser

cold press expeller machine

hydraulic oil extractor

electric oil press machine

Place of Origin:

Henan province, china

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-250

Contact Us

Request A Quote
Product Details
Other Name:
Hydraulic Oil Pressers
Material:
Alloy Steel
Weight:
1070kg
Dimension:
710*950*1560 Mm
Capacity:
11 Kg/batch
Advantage:
High Oil Yield
Voltage:
380V
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

6YY-250 model hydraulic oil extractor machine high capacity oil pressers

Product Information

LEWIN automatic high-speed hydraulic oil press is a new type hydraulic oil press that Combining the characteristics of traditional oil presses, and improving in terms of oil extraction

It is easy to use, easy to operate, and has high oil yield. It is a professional equipment for extracting high oil crops such as sesame, peanut, walnut, almond, pine nut and tea seed.

Oil press machine parameters

Model 6YY-185 6YY-230B 6YY-250 6YY-300 6YY-335
Weight 550kg 950kg 1070kg 1600kg 1750kg
vacuum Power 1.1kw 1.1kw 1.1kw 2.2kw 2.2kw
3phase 2.2kw 2.2kw 2.2kw 4.0kw 4.8kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity 4kg/batch 9.5kg/batch 11kg/batch 16kg/batch 20kg/batch
Dimension(mm)

600*880*1150

670*950*1560
710*950*1560
1000*1100*1660
1100*1240*1730

Theory of hydraulic oil press machine

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 0

The oil line is precise and does not leak residue. It can directly obtain edible healthy oil.

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 1

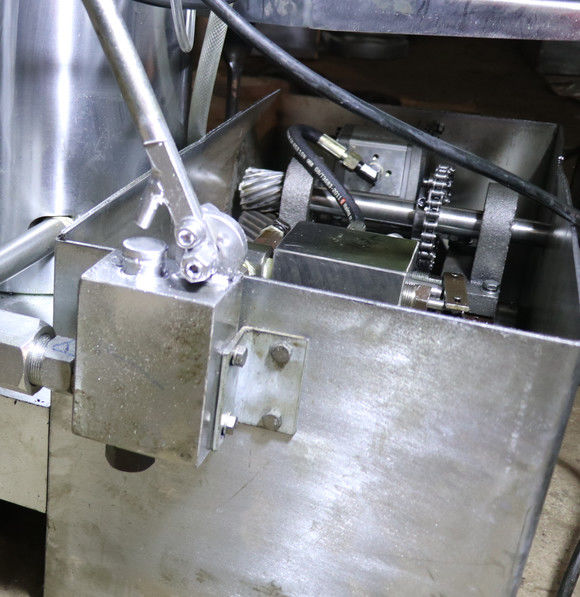

Oil tank, the core technology of the hydraulic machine, powering the machine.

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 2

Different models can meet your demands.

Seeds application of hydraulic oil making machine

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 3

If you want to process other special raw material, please cantact us to ensure.

Workflow

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 4

This is the operation process diagram of sesame. The sesame after the wok is roasted and dried, and automatically enters the oil press through the wind suction system. Save time and effort and save space. More importantly, the sesame after roasting is full of color and flavor, healthy and pure, and can be eaten directly.

Simple operation

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 5

Our machines are easy to operate and can be operated by one person. We will provide you with videos to guide you in the installation and operation of the machine.If necessary, we can also arrange an engineer to go to the site to guide.

Our service

Provide quality service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 6

Packing and shipping

We have in enough stock and can arrange shipping for you as soon as possible.

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 7

Company information

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 8

6YY-250 Model Hydraulic Oil Extractor Machine High Capacity Oil Presser 9

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
