Place of Origin:
Henan Province, China
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YL-160
Contact Us
Basis Information about screw oil press machine:
Screw automatic oil presses made by us are of many good advantages: material selection is exquisite, reasonable design, beautiful shape, reliable quality, simple operation, less land occupation, labor saving, power saving, high yield, and oil quality is good, and so on. All technical indexes are leading in the same trade of the state-owned oil press. And 6YL series is the new type products reformed by our factory engineers, which are the advanced equipment in the oilseeds processing machinery recently.
There are many features of this equipment: simple structure, easy to use, adaptable, high oil rate, energy-saving, and low noise. This series of machinery can be widely used to more than 20 kinds of easy and difficult plant oilseeds, such as peanuts, soybeans, rapeseed, cottonseed, sesame, olives, sunflowers, coconut, cocoa, seeds and so on. During pressing, it can be entirely squeezed one time except for some individual varieties.
Advantages of screw oil pressers:
1. Energy Saving: The electric power can be reduced by 40% under the same output.
2. Labor Saving: 60% labor can be saved under the same output.
3. Widely Usage: The machine is multi-function. It can process more than 20 kinds of oil crops.
4. Pure Oil: Vaccum filter can filter the residue and ensure the oil quality.
5. Small Area Covering: 10 ~ 20 m2 can meet the production needs.
Working priciple:
The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.
Technical parameters of oil presser:
| Model | 6YL-120 | 6YL-130 | 6YL-150 | 6YL-160 | 6YL-180 |
| Weight | 1200 kg | 1600 kg | 1800 kg | 1900 kg | 1980 kg |
| Vacuum power | 1.1 kw | 1.1 kw | 2.2 kw | 2.2 kw | 2.2 kw |
| 3phase | 15 kw | 22 kw | 30kw | 30 kw | 37 kw |
| Squeezer speed | 100-130 | 100-130 | 100-130 | 100-130 | 100-130 |
| Capacity(kg/h) | 120-160 | 180-300 | 220-450 | 300-600 | 400-750 |
| Dimension(mm) | 2000*1600*2700 | 2150*1600*2700 | 2550*1800*2700 | 2650*1900*2700 | 2700*2000*2700 |
Detailed images

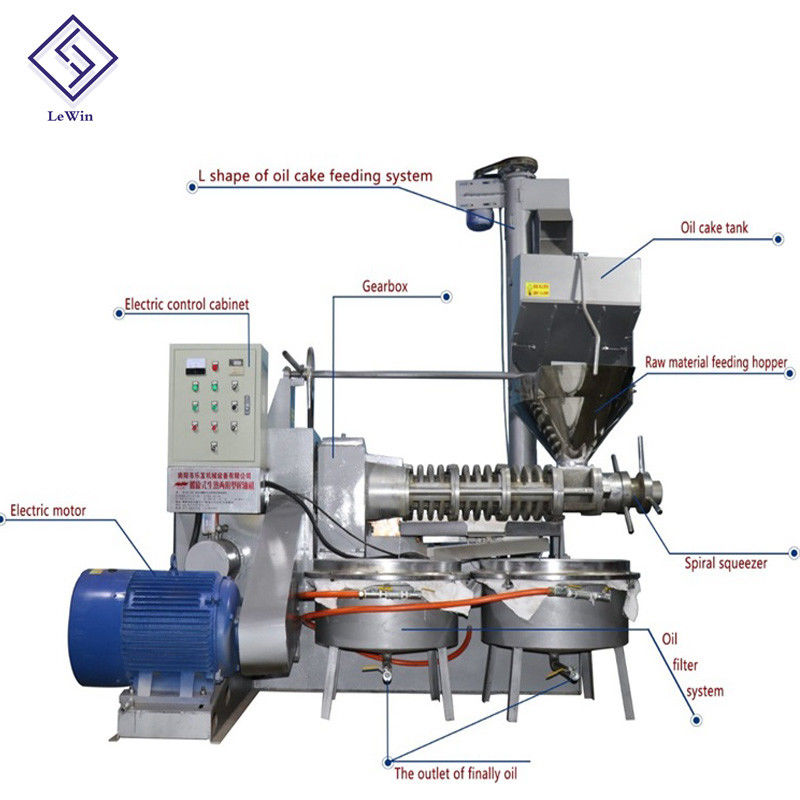

Parts of high quality oil presser:
Electromechanical integration, advanced technology, easy operation.
Pure copper motor, Strong stability.
L-type feeding system can realize the second class feeding, avoid oil waste, save time and labour.
Vacuum oil filter, Can directly get food grade pure health oil
Seeds application of screw oil making machine
Our machine can extract oil from peanut, sunflower, soybean,mustard seeds, coconut, sesame and so on.
If you want to process other special raw material, please cantact us to ensure.
Peanut Workflow
Packing & shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Company information
We have our factory, so we can provide product with the quality machine and best price.
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and
Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
