Hydraulic oil making cold pressed sesame oil machinery with best price
Basis Information for hydraulic oil press machine
Hydraulic oil pressure machine is the most advanced equipment which can replace the manual operation of the sesame oil.
1. Steel materials of the machine are purchased from the steel manufacturering factories directly, so
the materials are in high quality;
2. We have top engineer group and long-term cooperation with several research institutions, we
serve the satisfied designs for our customers.
3. Our workers are professional, each of them has been trained strictly before their job;
4. We supply the high grade, the consummation after-sale service.
Theory

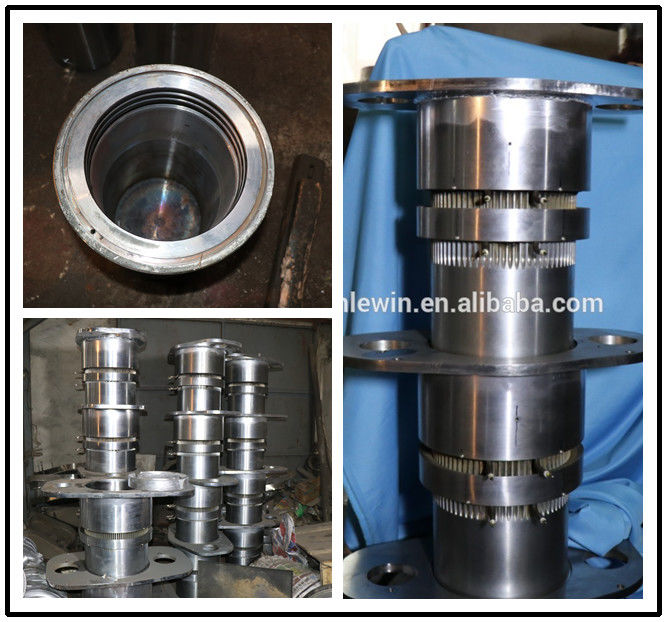

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
parameters
| Model | 6YY-185 | 6YY-230A | 6YY-250 | 6YY-300 | 6YY-335 |
| Weight | 550kg | 924kg | 1070kg | 1600kg | 1750kg |
| vacuum Power | 1.1kw | 1.1kw | 1.1kw | 2.2kw | 2.2kw |
| 3phase | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 4.8kw |
| Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
| Capacity | 4kg/batch | 8.5kg/batch | 11kg/batch | 16kg/batch | 20kg/batch |
| Dimension(mm) |
600*880*1150 |
670*950*1460
|
710*950*1560
|
1000*1100*1660
|
1100*1240*1730
|
Selling points of hydraulic oil press machine
Seeds application of hydraulic oil making machine
If you want to process other special raw material, please cantact us to ensure.
Simple operation
Our service
Provide quality service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Packing and shipping
We have in enough stock and can arrange shipping for you as soon as possible.
Company information
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
