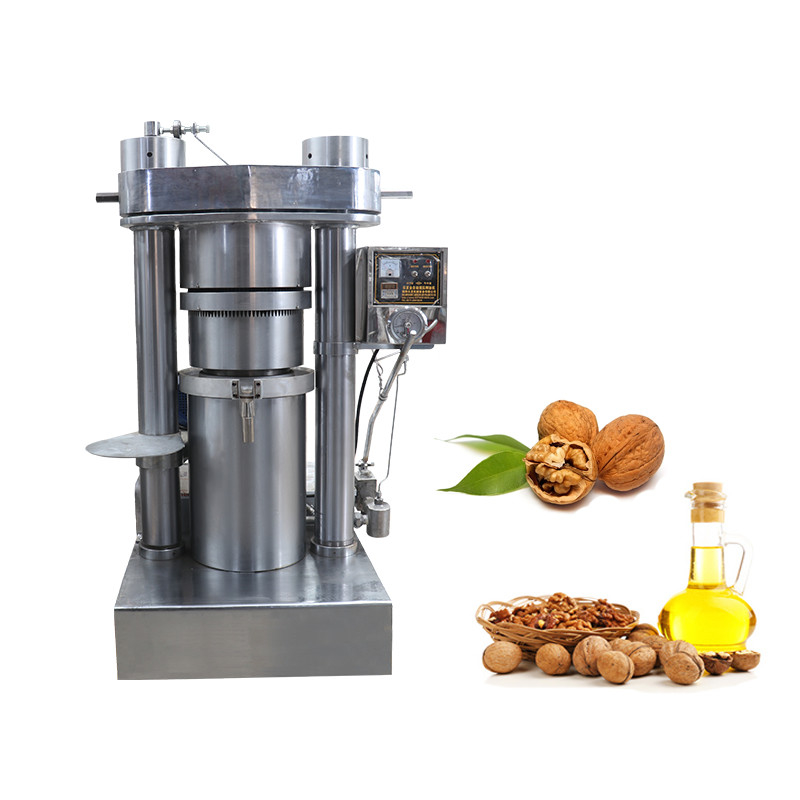

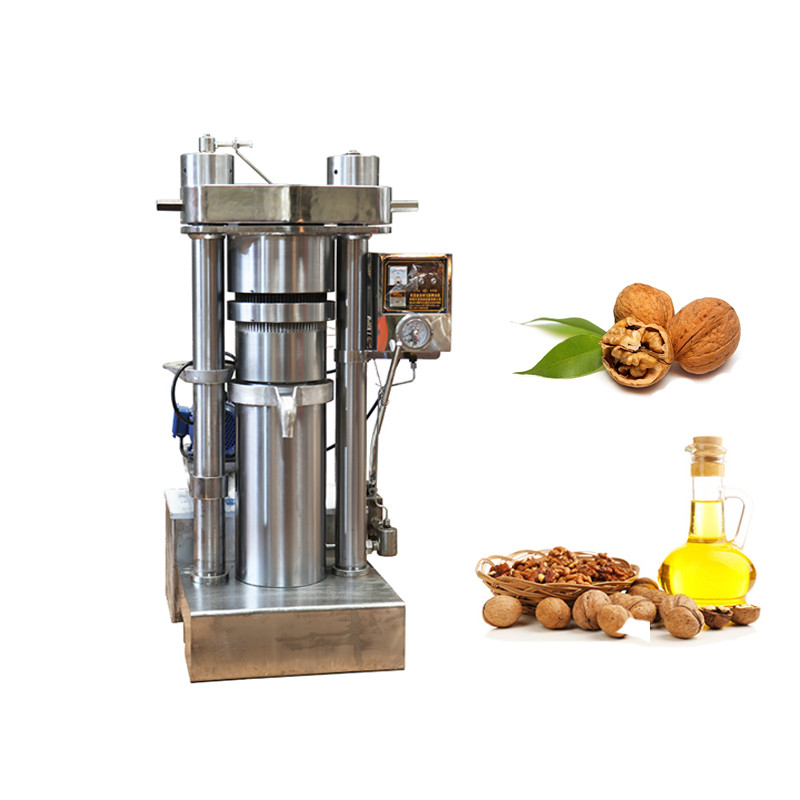

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material

avocado oil press machine

electric oil press machine

hydraulic oil extractor

Place of Origin:

Nanyang,China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

YY-270

Contact Us

Request A Quote
Product Details
Product Name:
Hydraulic Type Cold Press Walnut Edible Oil Making Expeller Machine
Material:
Alloy
Usage:
Olive Sesame Avocado Inca Peanut And Other Raw Materials
Feature:
High Pressure
Advantage:
Easy Operation High Oil Yield
Size:
750*1010*1640mm
Weight:
1230kg
Voltage:
220v / 380v / Customize
Power:
2.2kw / 1.1kw
Capacity:
13.5kg / Batch
Oil Cake Diameter:
270mm
Processing Type:
Cold / Hot Press Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film/Customized
Delivery Time
5-8 working day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 sets per month
Product Description

Product Description

hydraulic type cold press walnut edible oil making expeller machine

The machine has the following characteristics:

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 0


Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 1

Hydraulci Oil Press Machine Main Features


1. It can also used for dehydration, de-oiling, off liquid for clay, activated
carbon and other chemical raw materials.
2. so it is the best choose to use oil press for oil plants. and this hydraulic
oil press is the most advanced equipment for the cumtomer to choose.

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 2


Main Paramater:

1.we have different model for you reference.
2.We also can customized according to your requirments.

Model

Capacity

(kg/batch)

Weight(kg)

Working

pressure

power(kw)

Dimension

(mm)

oil cake diameter
YY-185 4 590 60MPa 2.2/1.1 600*880*1150 180mm
YY230(A) 8.5 924 60MPa 2.2/1.1 670*950*1460 230mm
YY-230(B) 9.5 950 60MPa 2.2/1.1 670*950*1560 230mm
YY-250 11 1070 60MPa 2.2/1.1 710*950*1560 250mm
YY-270 13.5 1230 60MPa 4.0/2.2 750*1010*1640 270mm
YY-300 16 1600 60MPa 4.0/2.2 1000*1100*1660 300mm
YY-335 20 1750 60MPa 4.0/2.2 1100*1240*1730 355mm
YY-355 23 2350 60MPa 5.0/3.0 1160*1200*1810 355mm




Detailed Images



The automatic hydraulic oil press is a small oil press with simple operation, high oil output rate and less replacement of wearing parts. It is a manual equipment for replacing small grinding sesame oil.




Hydraulic oil press working principle:
The oil crops are placed in the filling barrel, and the force of the cylinder piston assembly is pushed upwards, the oil crops are squeezed to make oil, and the oil flows out from the oil-filled seam of the filling barrel, and the oil pan is connected to the oil storage barrel.
Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 3

Avantage:

1. used for both hot and cold press.
2. large capacity, high pressure.
3. Using to press many kinds of high-grade oil crops, such as walnuts,
almonds, cocoa beans, sunflowers, peanuts/groundnuts, soybean, etc.
4. It can also used for dehydration, de-oiling, off liquid for clay, activated
carbon and other chemical raw materials.
5. so it is the best choose to use oil press for oil plants. and this hydraulic
oil press is the most advanced equipment for the cumtomer to choose.

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 4

This is the sesame oil cake


This is a picture of our customers visiting the factory, which is highly appreciated by our company and factory.

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 5


Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 6

Our Company:

Henan Lewin Industrial Development Co.,Ltd has strong processing capabilities and has machining equipment. With high-quality R&D and design personnel, the existing new product development, product design, production, sales, service, project cooperation, and other multi-sectoral institutions are a comprehensive and diversified enterprise.


Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 7


Packing & Delivery

Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:

Generally 7-10 working days after receipt the deposit

Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 8
Hydraulic Type Cold Press Walnut Edible Oil Making Machine Alloy Material 9


After-service:


1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will not provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period
.
