Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 185
Contact Us

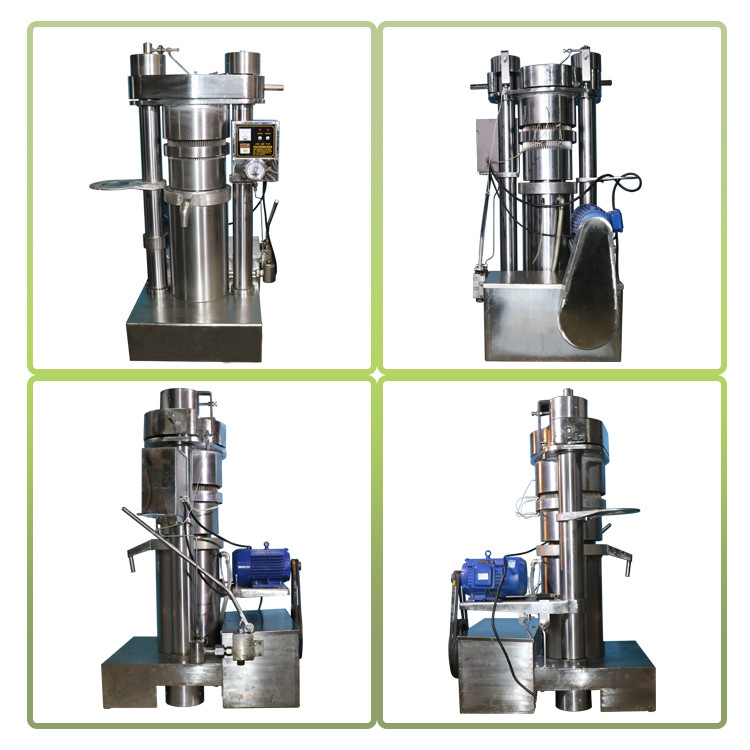

This is 6YY-185 machine parameters.
1. The working pressure is 60Mpa to provide higher power which can make sure the high oil rate .
2. This machine can press 4 kg per time, the pressing time is 8-15 minutes( different materials have different pressing time), so it can press 4-28 kg materials per hour.
3. This machine is small, but it's so heavy. Because our machine use high quality material to ensure the safety. And our machine use solid piston to ensure press material cleaner.
Our machine can press kinds of oil seeds, like above pictures, peanut , olive ,corn , flaxseed ,sesame and ect.
Parameter:
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|---|---|---|---|---|---|---|---|
|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kgs) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
|
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
| Package Size(mm) | 780*1000*1580 | 780*1000*1580 | 780*1000*1680 | 780*1040*1710 | 820*1081*1750 | 940*1140*1810 | 940*1160*1800 | 1040*1240*1920 |
|
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Workflow:
1. Pre-sale service:
We offer different solution for different request and material.
Factory view accepted.
Test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
