Home ProductsHydraulic Oil Press MachineHydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation

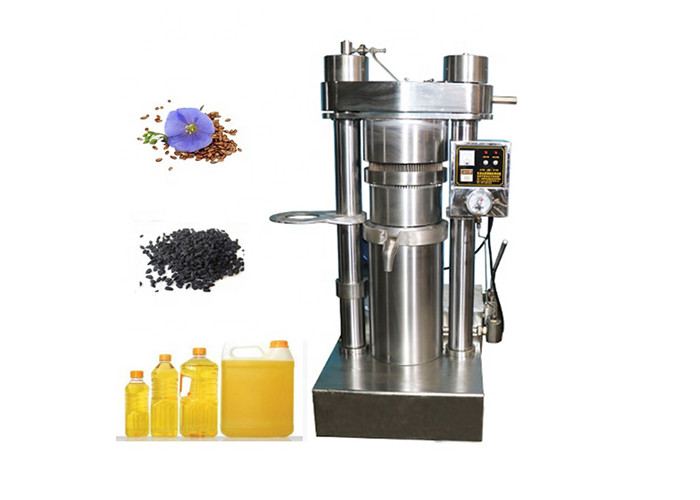

Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation
Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation
Contact Now

Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case with film/Customized Delivery Time : 5-8 working day
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 sets per month
Place of Origin: Nanyang,China Brand Name: Lewin
Certification: CE Model Number: YY-185

Detail Information
Product Name: Sesame Walnut Automatic Hydraulic Oil Mill Avocado Oil Pressing Machine Material: Alloy
Usage: Walnut Olive Sesame Avocado Inca Peanut And Other Raw Materials Feature: High Efficiency
Advantage: Easy Operation Size: 600*800*1150mm
Weight: 590kg Voltage: 220v / 380v / Customize
Power: 2.2kw / 1.1kw Capacity: 4kg / Batch
Oil Cake Diameter: 185mm Processing Type: Cold / Hot Press Machine
HS Code: 8479200000
High Light:

avocado oil press machine

,

electric oil press machine

,

hydraulic oil extractor

Product Description

Sesame walnut Automatic hydraulic oil mill avocado oil pressing machine



Product Description



The design is scientific, the structure is reasonable, the operation is simple, the safety is stable, and the fully automated device is used. It takes only a few minutes from the feeding to the finished product.
Our oil presser has many advantages, as follows:
1. High oil yield, 30% higher oil yield than old equipment, and considerable economic net profit.
2. Labor saving, the same output can save labor, one to two people can produce.
3. Use Wide: multi-purpose machine, can squeeze more than 30 kinds of oil crops such as peanut, flax, sesame, rapeseed, oil sunflower, cottonseed, soybean, etc.,
multi-stage pressing, one-time pressing, pure oil--vacuum filtration residue, guarantee oil purity , in line with health and quarantine standards.
4. Small footprint: oil square needs 10-20 square meters to meet the use.
5. innovative concept, mechanical and electrical integration


Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 0




Main Paramater:

1.we have different model for you reference.
2.We also can customized according to your requirments.

Model

Capacity

(kg/batch)

 Weight(kg)

Working

pressure

 power(kw)

Dimension

(mm)

 oil cake diameter
YY-185 4 590 60MPa 2.2/1.1 600*880*1150 180mm
YY230(A) 8.5 924 60MPa 2.2/1.1 670*950*1460 230mm
YY-230(B) 9.5 950 60MPa 2.2/1.1 670*950*1560 230mm
YY-250 11 1070 60MPa 2.2/1.1 710*950*1560 250mm
YY-270 13.5 1230 60MPa 4.0/2.2 750*1010*1640 270mm
YY-300 16 1600 60MPa 4.0/2.2 1000*1100*1660 300mm
YY-335 20 1750 60MPa 4.0/2.2 1100*1240*1730 355mm
YY-355 23 2350 60MPa 5.0/3.0 1160*1200*1810 355mm
The working principle of the oil press:

The hydraulic oil press is a rack that uses oil to transfer pressure to pressurize the oil under static pressure. The power source for the oil pump is manual or electric; the pressure applied to the blank can be divided into vertical and horizontal. A cylinder is fixed on the base of the vertical hydraulic oil press, and a cylindrical piston is arranged in the cylinder, and the upper part of the piston is connected with the bearing plate. The preform is pre-pressed into a round cake, and the outer cake ring is stacked between the bearing pan and the top plate with 20 to 40 round cakes, and the cake and the cake are separated by a thin pad with a hole to drive the top of the piston. Produce pressure, press the cake to produce oil
Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 1




Detailed Images

Main features:

(1) High oil yield, pure oil, no filtration
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small
(3) Electromechanical integrated design, small footprint and easy operation
(4) Fast purification, stable and durable performance
(5) Professional manufacturer


Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 2





Avantage:

1. It adopts new supercharging technology and two-stage supercharged safety protection system to ensure safe use.
2. The main part adopts hard chrome plating process, the color is even and never fades.
3. The hydraulic cylinder is made with precision, the bearing pressure is large, and the performance is stable and reliable.
4. The main components are all forged and processed to ensure that they will never deform under high pressure.
5, stainless steel electrical cabinets, using the domestic first-class brand "Zhengtai" electrical components, beautiful appearance, low failure rate;
6, using 380 volts power and 220 volts lighting can be.
7. The barrel is divided into upper and lower oil lines, and the oil line is increased. While ensuring the strength of the barrel, the oil rate is increased.



Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 3

Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 4

Our Company:

Henan Lewin Industrial Development Co.,Ltd has strong processing capabilities and has machining equipment. With high-quality R&D and design personnel, the existing new product development, product design, production, sales, service, project cooperation, and other multi-sectoral institutions are a comprehensive and diversified enterprise.


Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 5

Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 6


Packing & Delivery

Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:

Generally 7-10 working days after receipt the deposit
Hydraulic Oil Mill Avocado Oil Press Machine High Efficiency Easy Operation 7


After-service:


1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
