Place of Origin:
Henan , China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY- 335
Contact Us

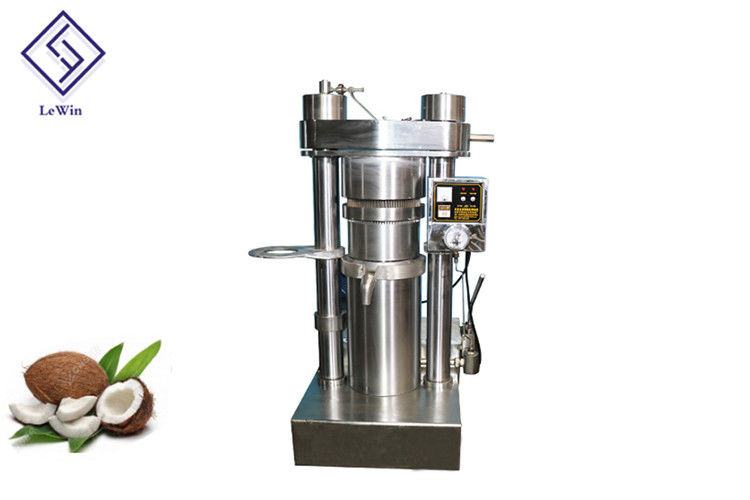

I. Our production
Our 6YY-335 model has high oil yield, simple operation and high quality, the reason is:
1. Our machine use the solid piston is stronger than other similar machines, it can press the oil seeds very clean.
2. Our machine maximum working pressure is 60Mpa, it can provide the high pressure to press the raw material.
3. Our machine use fully automatic technology, one person can operate 4-5 sets machine.
4. Our machine use alloy material, it is stronger than other machines to ensure the safety of this machine.
5. Our hydraulic tank offer the power for the machine.
Parameter of 6YY-335
| Model | 6YY-335 |
|---|---|
| Production capacity(kg/batch) | 20 |
| Working pressure | 60 Mpa |
| Weight (kg) | 1750 |
| Voltage | 380V |
| Power (3 /single phase) | 4.8 / 2.2 KW |
| Dimension(m) | 1.1*1.24*1.73 |
| Oil cake diameter | 335mm |
| Oil rate | 98% |
Main features:
1.Space-saving, small size, small footprint. Besides, the oil cake can be reused as fertilizer
2. Simple structure, easy to operate. (It only has three parts: the body of the machinery,electrical control cabinet ,hydraulic pump station .and the electrical control cabinet only has three buttons what is easy to control.)
3.Quality assurance, high oil rate.(The thinner cake compaction,the higher oil rate.)
Application range:
II. Detail introduction
Operation :
1.Open the top lid, put the bottom plate and filter cloth, and then put the material,Open the hydraulic press switch.
2. Put the steel plate and filter cloth, cover the lid,Start pressing the material.
3.Observe the oil outlet of the oil, the oil from the oil line seepage and from the oil outlet, when the oil is not pressed, close the press switch, this process takes about 3-5min.Turn off the press switch, open the top cover, open the switch again, so that the material barrels rise.
4.Turn off the switch, Take out the filter cloth and the steel plate, take out the residue cake, turn off the electromagnetic valve.
III. Our factory
IV. Service
We have professional service for you, includes pre-sale service and after-sale service.
1. Pre- sale service:
We offer 7*24 hours online service, we can reply you quickly,
You can visit our factory at any time,
We can provide the operation and other videos,
We can test the machine according to your need.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
V. FAQ
Q: What about your package?
A: We use strong wooden case pakage to ensure the safety of our machine.
Q: How about delivery?
A: Generally we delivery the machine within 7-10 working days after receipt the deposit.
Q: What do you support the MOQ?
A: MOQ is 1 set.
Q: How long is your warranty?
A: We offer 1 year warranty.
