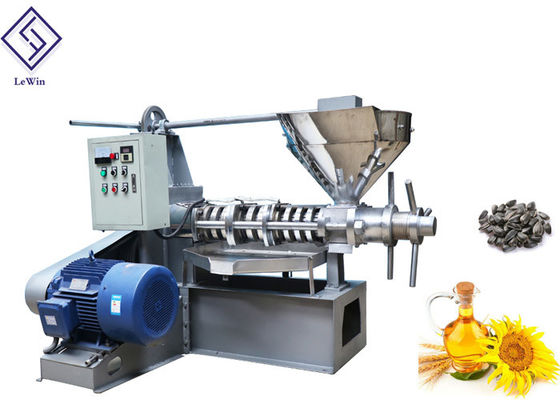

Cold Press Sunflower Oil Extraction Machine 220 - 450 Kg / H Capacity

Cold Press Sunflower Oil Extraction Machine 220 - 450 Kg / H Capacity

cold press expeller machine

electric oil press machine

Place of Origin:

Henan Province, China

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YL-160

Contact Us

Request A Quote
Product Details
Product Name:
Screw Oil Making Machinery
Advantage:
Easy Operation
Weight:
1900 Kg
Oil Material:
Peanut, Sunflower, Sesame,
Voltage:
380 V
Capacity:
220-450 Kg/h
Power(3phase):
30 Kw
Dimension:
2650*1900*2700
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden Carton Customization
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Cold press sunflower oil extractor machinery screw oil making equipment



Basis Information:

New generation screw oil press machine is screw-driven oil making machine that used to extract oil from seeds and kernels for edible purposes.6YL series oil press machine is an advanced oil seed processing machine,characterized by high oil output rate,cold& hot press in one machine and one-time squeeze.
The oil press machine can be used to process various oil seeds, such as rape seeds, peanut soybean,sesame,sunflower seed, copra, vegetable seeds.

Characters:

1. Realize the second class pressing to avoid oil waste.

2.Two feeding systems work together to make the working more efficiency.

3.Vacuum oil filter system, get pure oil.

4. Keeping work 24h to reduce labor and improve work efficency.

5. The oil residue ratio of the oil cake is less than 5%.

Working priciple:

The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.

Technical parameters of oil presser:

Model

6YL-120

6YL-130

6YL-150

6YL-160

6YL-180

Weight

1200 kg

1600 kg

1800 kg

1900 kg

1980 kg

Vacuum power

1.1 kw

1.1 kw

2.2 kw

2.2 kw

2.2 kw

3phase

15 kw

22 kw

30kw

30 kw

37 kw

Squeezer speed

100-130

100-130

100-130

100-130

100-130

Capacity(kg/h)

120-160

180-300

220-450

300-600

400-750

Dimension(mm)

2000*1600*2700

2150*1600*2700

2550*1800*2700

2650*1900*2700

2700*2000*2700



Detailed images

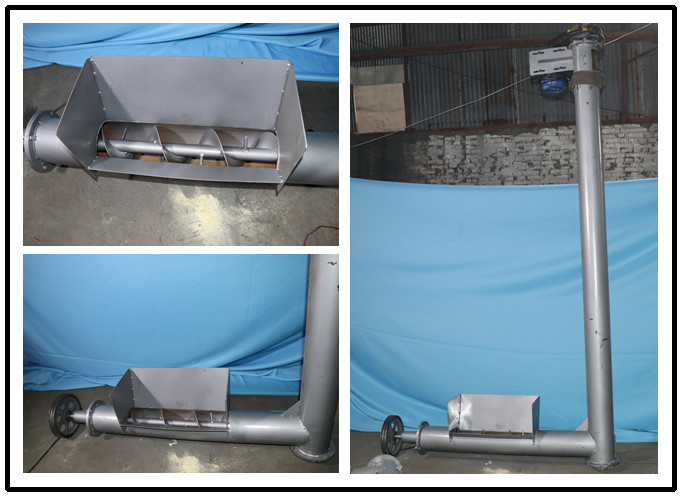

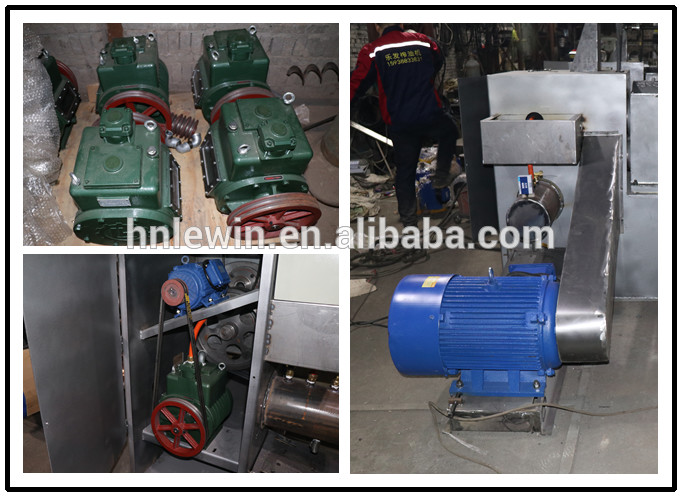

Parts of high quality oil presser:

Cold Press Sunflower Oil Extraction Machine 220 - 450 Kg / H Capacity 0

Seeds application of screw oil making machine

Cold Press Sunflower Oil Extraction Machine 220 - 450 Kg / H Capacity 1

If you want to process other special raw material, please cantact us to ensure.

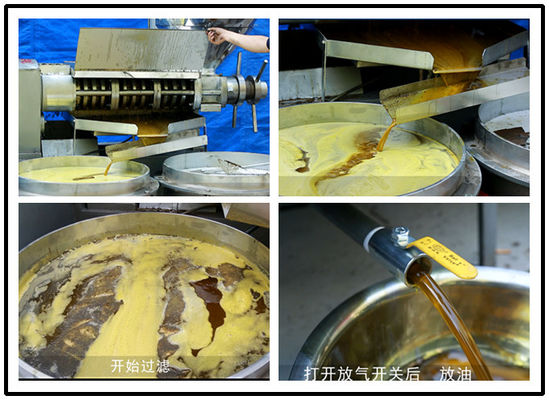

Workflow

Cold Press Sunflower Oil Extraction Machine 220 - 450 Kg / H Capacity 2

Our service

Provide quality service

Cold Press Sunflower Oil Extraction Machine 220 - 450 Kg / H Capacity 3

1. Professional engineer

Our professional engineer will test the machine in each step.

2. Specialist manufacture

Every machine carefully adjusted before shipment.

3. After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
