Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil

Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil

cold press expeller machine

hydraulic oil extractor

Place of Origin:

Henan Province, China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Screw Oil Expeller Machine
1900 Kg
Alloy Steel
380 V
300-600 Kg/h
2650*1900*2700 Mm
Squzzer Speed:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden Carton Customization
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Screw Sunflower seeds extraction machinery oil pressers for pure healthy oil

Brief Introduction:

1. The Structure of Oil Press Machine
Screw oil press is a popular type of oil press machine, mainly composed of feeder, gearbox, pressing chamber and oil receiver. Some screw oil press machines are equipped with electric motors as required. Pressing chamber is the key part which contains a pressing cage and a screw shaft rotating in the cage. An electric cabinet is also necessary to control the whole working procedure.
2. 6YL Screw Professional Oil Press Machine
Different from the automatic screw oil press machine, this screw oil press has its own features and markets.
1). Made of high quality steel, stable and durable performance, easy to clean.
2). With the properly designed pressing chamber, the increased pressure in the chamber highly improves working efficiency.
3.  Why Choose 6YL Screw Oil Press Machine
1). Wide application: ideal machine for pressing various oil seeds, such as peanut, soybean, sesame, flax seed, etc;
2). High oil yield : the oil output is 35% - 50% higher than common oil press.
3). Low residual: the oil residual in cake is less than 5%.
4). Little land occupancy: only 10-20 square meter is enough.
Make full use of your abundant oil seeds and start a low investment business, don't miss our screw oil press.
4. The raw Materials for Oil Press Machine
The oil press machine can be used to extract vegetable oil by continuously pressing
peanuts, rapeseeds, soybeans,castor oil plant, sesame seeds, benne seeds, sunflower seeds, cotton seeds, tea seeds, tung seeds and etc.



The working principle is that the oil is extruded from the material embryo and discharged from the slots and oil troughs of the strip and circle rows by the continuous pushing of the material embryo in the squeezing chamber and the change of the space volume of the squeezing chamber from large to small, and the oil can be directly eaten in a barrel after deep filtration of the oil tank.



1. Stable performance

The main components of our machines are produced by ourselves in order to guarantee the oil rate and the quality of the machine.

2. Oil pure and fragrant

The oil filter is dense that the oil can be filtered clean.

3. High oil yield

The diameter of the spiral squeezer is longer than other similar products and the squeezer speed is low so that the raw material can be pressed clean.

4. Saving time and effort

The L shape of oil cake feeding system can directly press the oil cake twice.

5. Temperature Control System

The temperature of the oil is automatically temperature controlled to improve the processing speed of the oil, and the low temperature environment can be produced normally.


Technical parameters of oil presser:

Model 6YL-120 6YL-130 A 6YL-150 6YL-160 6YL-180
Weight 1200 kg 1650 kg 1800 kg 1900 kg 1980 kg
Vacuum power 1.1 kw 1.1 kw 2.2 kw 2.2 kw 2.2 kw
3phase 15 kw 18.5 kw 30kw 30 kw 37 kw
Squeezer speed 100-130 100-130 100-130 100-130 100-130
Capacity(kg/h) 120-160 160-280 220-450 300-600 400-750
Dimension(mm) 2000*1600*2700 2600*1600*2700 2550*1800*2700 2650*1900*2700 2700*2000*2700


Detailed images

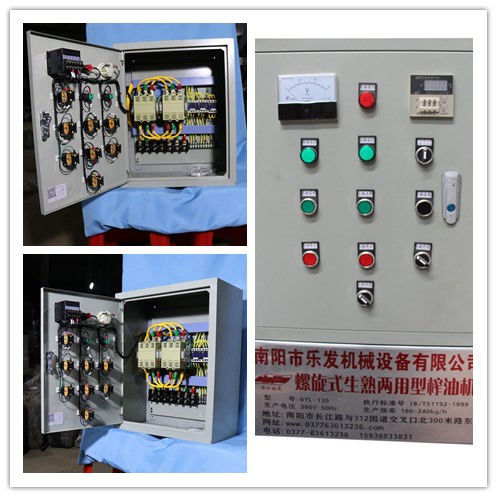

Parts of high quality oil presser:

Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil 0

Seeds application of screw oil making machine

Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil 1

If you want to process other special raw material, please cantact us to ensure.



Packing & shipping

We use strong wooden case to ensure the safety of your goods in transit.

Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil 2

Our service

Provide quality service

Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil 3

1. Professional engineer

Our professional engineer will test the machine in each step.

2. Specialist manufacture

Every machine carefully adjusted before shipment.

3. After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Company information

We have our factory, so we can provide product with the best price.

Alloy Steel Sunflower Seeds Industrial Oil Press Machine For Pure Healthy Oil 4


Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and

Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
