Alloy Steel Hydraulic Oil Extractor / Aovcado Oil Pressing Device 6YY-230A Model

Product Details:
Place of Origin: Henan province, china
Brand Name: Lewin
Certification: CE ISO
Model Number: 6YY-230A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with film
Delivery Time: 5-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Detail Information

Keyword: Hydraulic Oil Press Machinery Material: Alloy Steel
Weight: 924kg Dimension: 670*950*1460
Capacity: 8.5kg/batch Advantage: Simple Opeartion
Voltage: 380V
High Light:

electric oil press machine

,

hydraulic oil extractor

Product Description

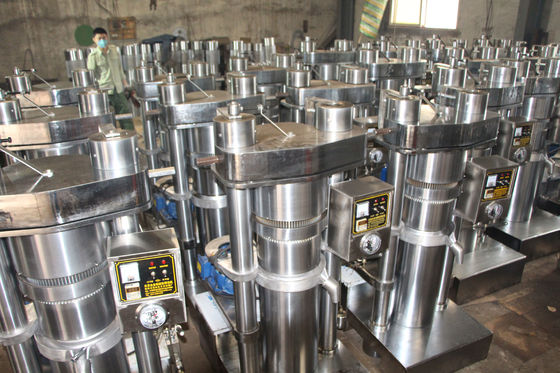

6YY-230A model hydraulic oil extraction machine aovcado oil pressers



Brief Information

Avocado oil press machine can work with automatic control by heating, oil pressing and filtering simultaneously. It can press the rapeseed press before the press bore heating and heating to improve the oil yield, while in the squeezing process of hair Oil when filtering. The machine Could press rapeseed, cottonseed, soybean, peanut, flaxseed, palm, coconut shell, olive fruit, castor bean, sesame, sunflower, rice bran, corn germ, walnut, almond, evening primrose, Pine seeds, animal skin, clay and all oil crops. Residual oil rate is less than 2%.

Theory

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

Parameters

Model

6YY-185

6YY-230A

6YY-250

6YY-300

6YY-335

Weight

550kg

924kg

1070kg

1600kg

1750kg

vacuum Power

1.1kw

1.1kw

1.1kw

2.2kw

2.2kw

3phase

2.2kw

2.2kw

2.2kw

4.0kw

4.8kw

Working pressure

60MPa

60MPa

60MPa

60MPa

60MPa

Capacity (Kg/h)

4kg/batch

8.5kg/batch

11kg/batch

16kg/batch

20kg/batch

Dimension(mm)

600*880*1150

670*950*1460
710*950*1560
1000*1100*1660
1100*1240*1730



Selling points

(1) High oil yield, pure oil, no filtration.
(2) The oil is squeezed once, the speed is fast, and the labor intensity is small.
(3) Electromechanical integrated design, small footprint and easy operation.
(4) Fast purification, stable and durable performance.
(5) Professional manufacturer.

Alloy Steel Hydraulic Oil Extractor / Aovcado Oil Pressing Device 6YY-230A Model 0

Alloy Steel Hydraulic Oil Extractor / Aovcado Oil Pressing Device 6YY-230A Model 1

This is a flow chart for pressing sesame seeds. It is for your reference only. The sesame seeds after roasting are pressed and pressed to obtain healthy edible oil.

Please contact us if you have any questions.



Seeds application of hydraulic oil making machine

Alloy Steel Hydraulic Oil Extractor / Aovcado Oil Pressing Device 6YY-230A Model 2

If you want to process other special raw material, please cantact us to ensure.



Simple operation

Alloy Steel Hydraulic Oil Extractor / Aovcado Oil Pressing Device 6YY-230A Model 3
