Industrial Food Crusher Machine / Coconut Groundnut Crushing Machine

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Wooden case with film Delivery Time : 5-7 working days after full payment
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 per set per month
Place of Origin: Henan Province Brand Name: Lewin
Certification: CE ISO Model Number: LW-28

Detail Information

Key Words: Crusher Machine Warranty: 1 Year
Capacity: 1000-1500 Kg/h After-sale Service: Video Technical Support
Weight: 70kg Dimension: 700 ×500 ×1000 Mm
Price: Factory Price Color: Customizable
Test&installation: Engineer Guide
High Light:

groundnut crushing machine


peanut grinder machine

Product Description

Industrial food crusher equipment groundnut crushing machine

Working principle:
The material is fed through the feed hopper from the top feed port, and is pressed into a flat shape by the 45# steel counter rolls, and is discharged from the base discharge port. There is a wrench at the front end of the machine, which can adjust the thickness of the material at will to achieve the most satisfactory results.


Main parmaters:

Model Capacity(kgh) Weight Power(Single) Dimension(mm)
LW-20 800-1000 55 1.5-2.2kw 500*450*920
LW-28 1000-1500 70 3kw




Product Description
The LW-20 model and LW-28 model crushers designed and developed by our company , with simple structure, resistant to use, small supporting power and high production efficiency. It is mainly suitable for raw material rolling into glutinous rice (peanut crushed, corn crushed, soybean crushed, sorghum crushed, etc.) The machine is widely used in oil mills, individual processing household oil mills, crushing and use, easy to operate, easy to maintain, easy to maintain and so on.

1.The grinding roller is flat, the material is easy to enter the grinding area, and it is easy to disassemble and repair.
2.Helical gear transmission between fast and slow rollers, high transmission efficiency, stable operation and low noise.
3.The grinding roller adopts self-aligning ball bearing to ensure accurate concentric rotation and can withstand high speed and roller pressure.
4.The centrifugal casting grinding roller is balanced, running smoothly and has a long service life.
5.Fine-tuning the rolling structure is simple and labor-saving, and the locking handle is easy to operate.
6.The roller brush cleaning is cleaner, the adjustment is simple, the grinding roller is protected, and the power consumption is reduced.
7.Cover protection structure, simple and convenient.
8.The whole machine is fully enclosed, safe and beautiful.

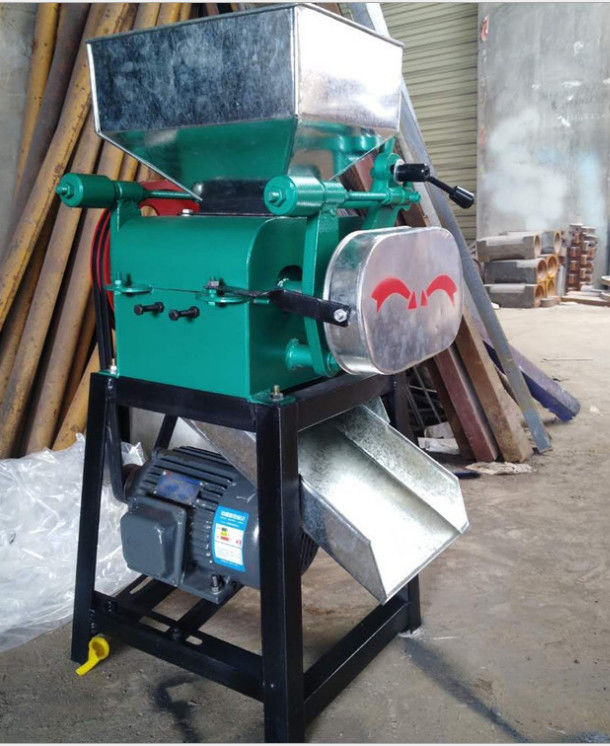

Industrial Food Crusher Machine / Coconut Groundnut Crushing Machine 0
Simple operation:
 1.Check whether the fasteners are loose before starting the machine, and turn the pulley by hand to see if there is any foreign matter in the machine.
 2.After starting the machine, follow the direction indicated by the arrow.
 3.Adjust the feed handle according to different production requirements.
 4.Control the degree of crushing of materials by adjusting the wrench.
 5.Do not put hard objects such as stones or iron.
Packing and Shipping:

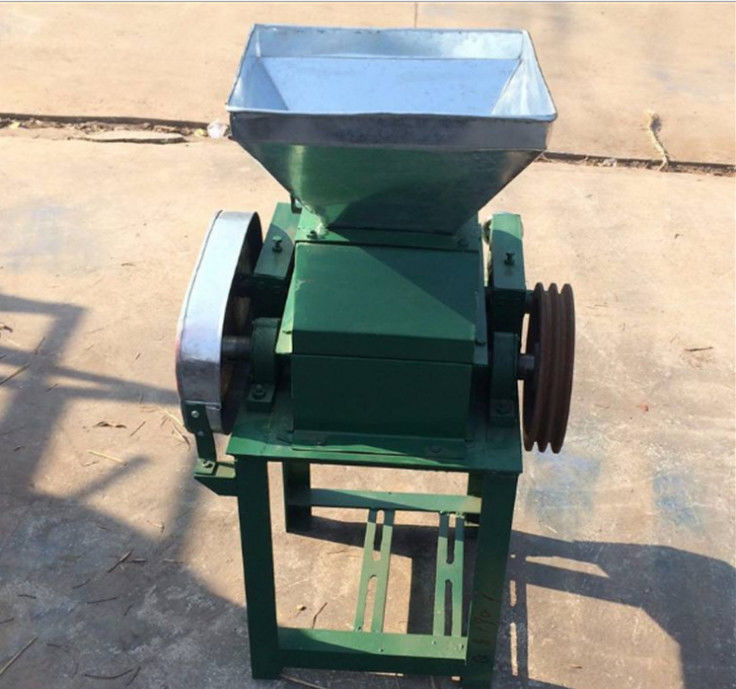

Industrial Food Crusher Machine / Coconut Groundnut Crushing Machine 1

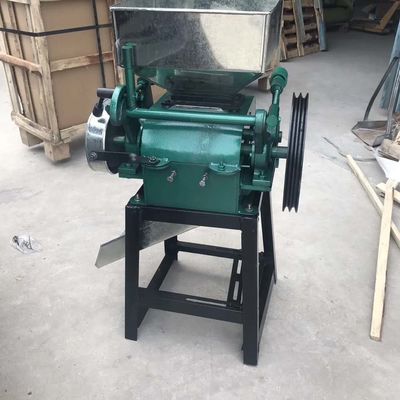

Industrial Food Crusher Machine / Coconut Groundnut Crushing Machine 2
