Place of Origin:
Henan Province
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
LW-28
Contact Us

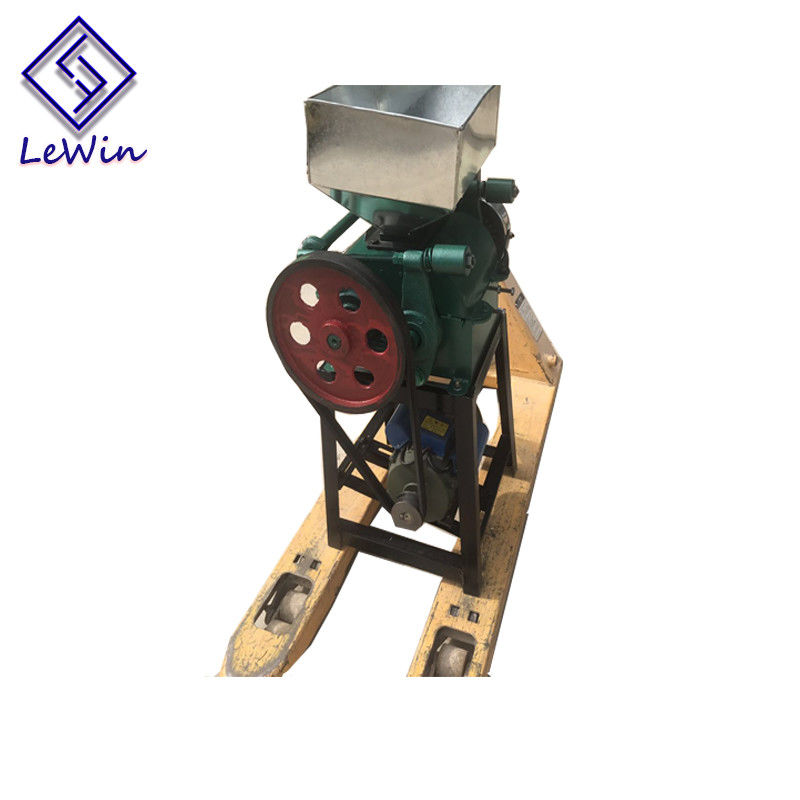

Automatic 1000-1500 kg/h high capacity peanut crusher equipment
Basis Description
The LW-20 model and LW-28 model crushers designed and developed by our company , with simple structure, resistant to use, small supporting power and high production efficiency. It is mainly suitable for raw material rolling into glutinous rice (peanut crushed, corn crushed, soybean crushed, sorghum crushed, etc.) The machine is widely used in oil mills, individual processing household oil mills, crushing and use, easy to operate, easy to maintain, easy to maintain and so on.
Advantages:
1.The grinding roller is flat, the material is easy to enter the grinding area, and it is easy to disassemble and repair.
2.Helical gear transmission between fast and slow rollers, high transmission efficiency, stable operation and low noise.
3.The grinding roller adopts self-aligning ball bearing to ensure accurate concentric rotation and can withstand high speed and roller pressure.
4.The centrifugal casting grinding roller is balanced, running smoothly and has a long service life.
5.Fine-tuning the rolling structure is simple and labor-saving, and the locking handle is easy to operate.
6.The roller brush cleaning is cleaner, the adjustment is simple, the grinding roller is protected, and the power consumption is reduced.
7.Cover protection structure, simple and convenient.
8.The whole machine is fully enclosed, safe and beautiful.
Main parmaters:
|
Model |
Capacity(kgh) |
Weight |
Power(Single) |
Dimension(mm) |
|
LW-20 |
800-1000 |
55 |
1.5-2.2kw |
500*450*920 |
|
LW-28 |
1000-1500 |
70 |
3kw |
700*500*1000 |
Working principle:
The material is fed through the feed hopper from the top feed port, and is pressed into a flat shape by the 45# steel counter rolls, and is discharged from the base discharge port. There is a wrench at the front end of the machine, which can adjust the thickness of the material at will to achieve the most satisfactory results.
Simple operation:
1.Check whether the fasteners are loose before starting the machine, and turn the pulley by hand to see if there is any foreign matter in the machine.
2.After starting the machine, follow the direction indicated by the arrow.
3.Adjust the feed handle according to different production requirements.
4.Control the degree of crushing of materials by adjusting the wrench.
5.Do not put hard objects such as stones or iron.
Packing and Shipping:
We have professinal packing and shpping team to make sure the safety of your goods.
