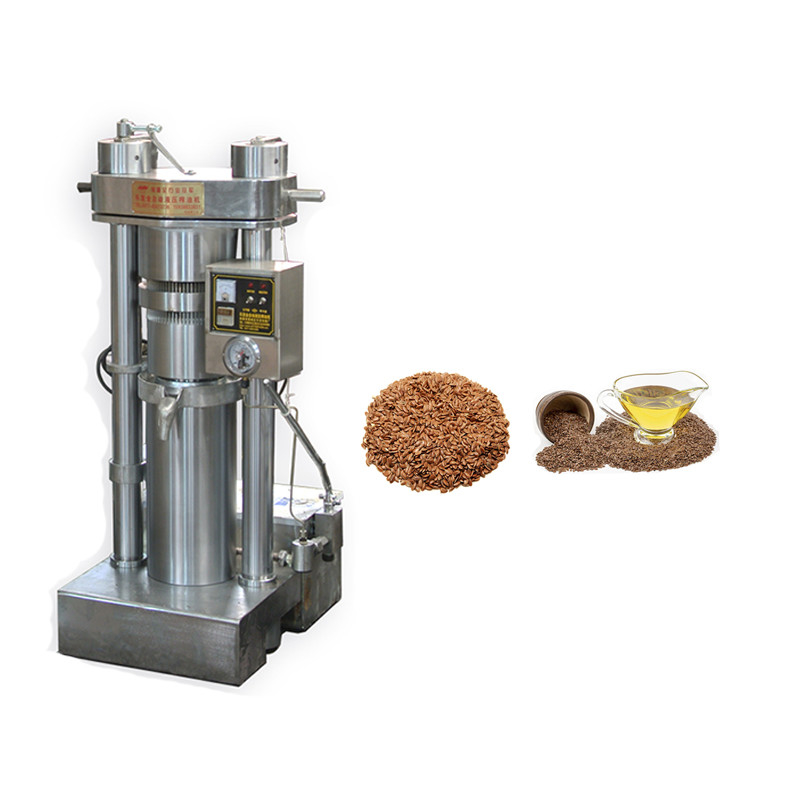

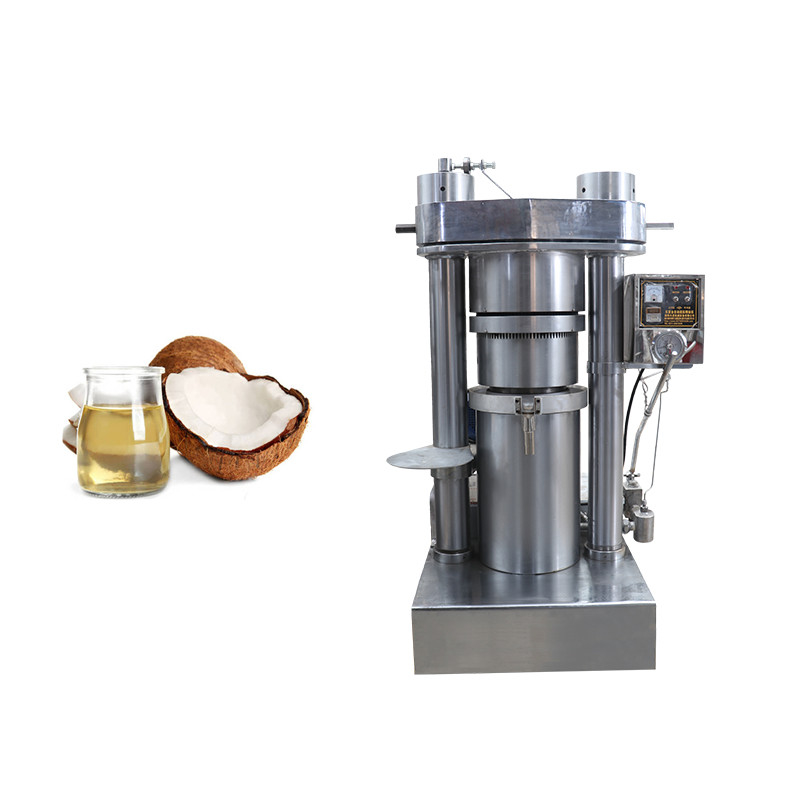

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm

cold press expeller machine

electric oil press machine

Place of Origin:

Henan province, china

Brand Name:

Lewin

Certification:

CE ISO

Model Number:

6YY-355

Contact Us

Request A Quote
Product Details
Keyword:
Hydraulic Oil Press Machine
Oil Seeds:
Sesame, Avocado, Olive, Walnut, Sunflower
Weight:
2350kg
Size:
1160*1200*1810 Mm
Capacity:
23 Kg/batch
Selling Point:
High Oil Output
Voltage:
380V
Pressure:
60 MPa
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film
Delivery Time
5-7working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Energy saving industrial oil press machine silver oil extractor equipment

Description of oil press machine:

Adopt advanced manufacturing process, with nice outlook, stable and durable performance.
•Economic and environmental-friendly. Save labor, 1 or 2 workers can easily operate.
•Small in Size, easy to operate.
•Press intermittently, it takes only several minutes for each press process. Cake no coke, high use value.
•Automatically press. The pressure limit can be set.•High oil rate, pure, rich aroma, no need to filter.

Theory

The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

parameters

Model 6YY-185 6YL-230A 6YY-250 6YY-300 6YY-355
Weight 550kg 924kg 1070kg 1600kg 2350kg
vacuum Power 1.1kw 1.1kw 1.1kw 2.2kw 3.0kw
3phase 2.2kw 2.2kw 2.2kw 4.0kw 5.0kw
Working pressure 60MPa 60MPa 60MPa 60MPa 60MPa
Capacity 4kg/batch 8.5kg/batch 11kg/batch 16kg/batch 23kg/batch
Dimension(mm)

600*880*1150

670*950*1460
710*950*1560
1000*1100*1660
1160*1200*1810

Main Features

(1) High oil yield, pure oil, no filtration

(2) The oil is squeezed once, the speed is fast, and the labor intensity is small
(3) Electromechanical integrated design, small footprint and easy operation
(4) Fast purification, stable and durable performance
(5) Professional manufacturer and the best service.

(6) Our core technology to increase the oil yield. Independent and more oil lines design, special treatment technology for the steel to ensure the tank stronger enough.

Seeds application of hydraulic oil making machine

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm 0

If you want to process other special raw material, please cantact us to ensure.



Simple operation

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm 1

Our service

Provide quality service

1.Professional engineer

Our professional engineer will test the machine in each step.

2.Specialist manufacture

Every machine carefully adjusted before shipment.

3.After-service

The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm 2

Packing and shipping

1. This hydraulic cold press machine will be packaged by standard export wooden case.

2. The delivery will be within 7-10 working days after receiving the payment.

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm 3

Company information

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm 4

Energy Saving Industrial Hydraulic Oil Press Machine 1160*1200*1810 Mm 5

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
