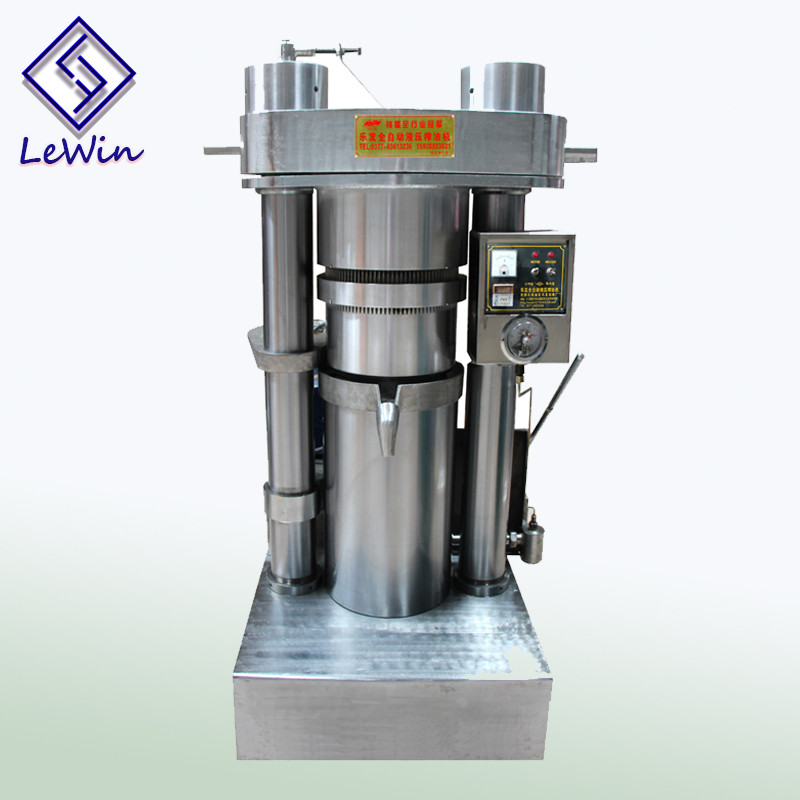

11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Wooden case with film/Customized Delivery Time : 5-8 working day
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 sets per month
Place of Origin: Nanyang,China Brand Name: Lewin
Certification: ISO CE Model Number: YY-250

Detail Information

Product Name: 11kg/bacth High Oil Yield Hydraulic Oil Mill Machinery With New Model Price Material: Alloy
Usage: Olive Sesame Avocado Inca Peanut And Other Raw Materials Feature: High Pressure High Efficiency
Advantage: Easy Operation High Oil Yield Size: 710*950*1560mm
Weight: 1070kg Voltage: 220v / 380v / Customize
Power: 2.2kw / 1.1kw Capacity: 11kg / Batch
Oil Cake Diameter: 250mm Processing Type: Cold / Hot Press Machine
High Light:

avocado oil press machine

,

electric oil press machine

Product Description

Product Description

11kg/bacth high oil yield hydraulic oil mill machinery with new model price
The hydraulic sesame oil press is mainly used for individual household processing. This product is a kind of hydraulic automatic oil press, the output is not big, but simple and convenient

The hydraulic oil press machine is a new type of equipment specially used for making edible oil. It completely replaces the manual and backward equipment in the past. A new hydraulic oil press is a three-month process for a processing workshop. The time can be recovered, and it is a rich project with small investment and high return. Lewin mechanical hydraulic oil press machine equipment is affordable, reliable, and practical, and has won the unanimous approval of the majority of users.
11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 0

Hydraulci Oil Press Machine Main Features

1. used for both hot and cold press.
2. large capacity, high pressure.
3. Using to press many kinds of high-grade oil crops, such as walnuts,
almonds, cocoa beans, sunflowers, peanuts/groundnuts, soybean, etc.
4. It can also used for dehydration, de-oiling, off liquid for clay, activated
carbon and other chemical raw materials.
5. so it is the best choose to use oil press for oil plants. and this hydraulic
oil press is the most advanced equipment for the cumtomer to choose.

11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 1

Oil press machine is used for oil pressing, such as soybeen, pesnut, sunflower and other kinds of usual oil.

11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 2



Main Paramater:

1.we have different model for you reference.
2.We also can customized according to your requirments.

Model

Capacity

(kg/batch)

Weight(kg)

Working

pressure

power(kw)

Dimension

(mm)

oil cake diameter
YY-185 4 590 60MPa 2.2/1.1 600*880*1150 180mm
YY230(A) 8.5 924 60MPa 2.2/1.1 670*950*1460 230mm
YY-230(B) 9.5 950 60MPa 2.2/1.1 670*950*1560 230mm
YY-250 11 1070 60MPa 2.2/1.1 710*950*1560 250mm
YY-270 13.5 1230 60MPa 4.0/2.2 750*1010*1640 270mm
YY-300 16 1600 60MPa 4.0/2.2 1000*1100*1660 300mm
YY-335 20 1750 60MPa 4.0/2.2 1100*1240*1730 355mm
YY-355 23 2350 60MPa 5.0/3.0 1160*1200*1810 355mm




Detailed Images



The automatic hydraulic oil press is a small oil press with simple operation, high oil output rate and less replacement of wearing parts. It is a manual equipment for replacing small grinding sesame oil.
11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 3



Hydraulic oil press working principle:
The oil crops are placed in the filling barrel, and the force of the cylinder piston assembly is pushed upwards, the oil crops are squeezed to make oil, and the oil flows out from the oil-filled seam of the filling barrel, and the oil pan is connected to the oil storage barrel.
11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 4

Avantage:

1. used for both hot and cold press.
2. large capacity, high pressure.
3. Using to press many kinds of high-grade oil crops, such as walnuts,
almonds, cocoa beans, sunflowers, peanuts/groundnuts, soybean, etc.
4. It can also used for dehydration, de-oiling, off liquid for clay, activated
carbon and other chemical raw materials.
5. so it is the best choose to use oil press for oil plants. and this hydraulic
oil press is the most advanced equipment for the cumtomer to choose.



11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 5

11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 6

Customer site test machine:



11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 7



Our Company:

Henan Lewin Industrial Development Co.,Ltd has strong processing capabilities and has machining equipment. With high-quality R&D and design personnel, the existing new product development, product design, production, sales, service, project cooperation, and other multi-sectoral institutions are a comprehensive and diversified enterprise.


11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 8


Packing & Delivery

Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:

Generally 7-10 working days after receipt the deposit

11kg/Bacth Hydraulic Oil Mill Machine 710*950*1560mm With CE Certificate 9


After-service:


1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period
.
