Product Description:
Our YY series automatic hydraulic oil press machine has many advantages: easy to operate, high oil press rate, rare to replace wearing parts.
1. used for both hot and cold press.
2. large capacity, high pressure.
3. Using to press many kinds of high-grade oil crops, such as walnuts,
almonds, cocoa beans, sunflowers, peanuts/groundnuts, soybean, etc.
4. so it is the best choose to use oil press for oil plants. and this hydraulic
oil press is the most advanced equipment for the cumtomer to choose.

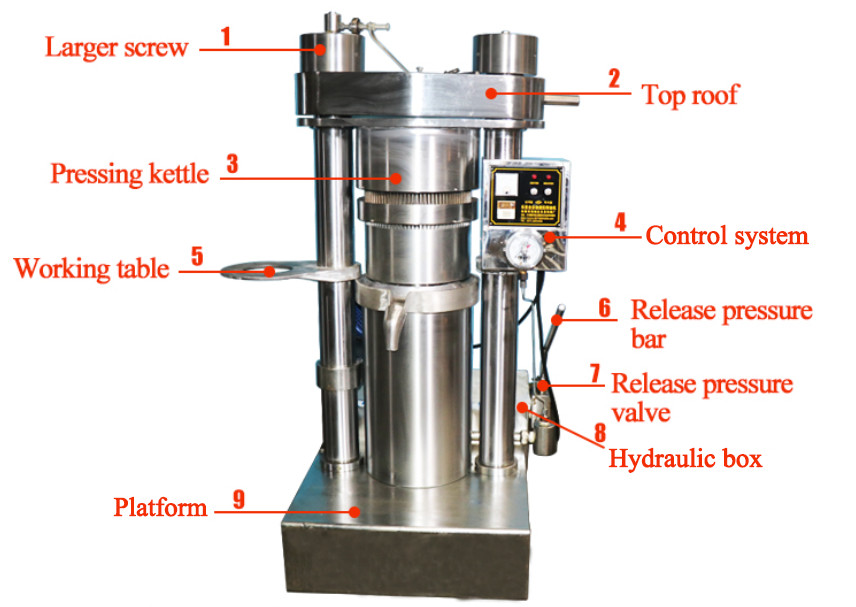

Theory
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
1.we have many moldes for you to choose
2.We can customize the model you need for you
parameters
| Model | 6YY-185 | 6YL-230A | 6YY-250 | 6YY-300 | 6YY-355 |
| Weight | 550kg | 924kg | 1070kg | 1600kg | 2350kg |
| vacuum Power | 1.1kw | 1.1kw | 1.1kw | 2.2kw | 3.0kw |
| 3phase | 2.2kw | 2.2kw | 2.2kw | 4.0kw | 5.0kw |
| Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
| Capacity | 4kg/batch | 8.5kg/batch | 11kg/batch | 16kg/batch | 23kg/batch |
| Dimension(mm) |
600*880*1150 |
670*950*1460
|
710*950*1560
|
1000*1100*1660
|
1160*1200*1810
|
1. Simple operation
2. Stronger rigidity
3. Less waste of oil
4. Used to hot and cold press
5. Works quite smoothly, easy maintenance
Why choose us
Seeds application of hydraulic oil making machine
Our hydraulic press can squeeze more than 30 kinds of materials such as sesame, peanut, walnut, olive and avocado.
If you want to process other special raw material, please cantact us to ensure.
Simple operation
Our service
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
Packing and shipping
We have in enough stock and can arrange shipping for you as soon as possible.
Company information
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
