Place of Origin:
Henan Province
Brand Name:
Lewin
Certification:
CE ISO
Model Number:
6YY-185
Contact Us

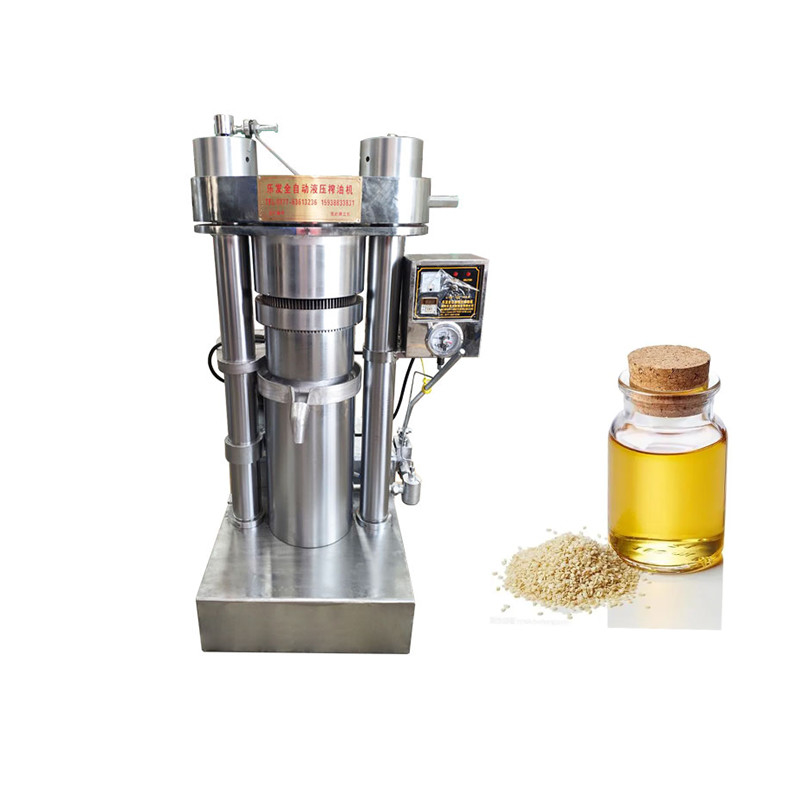

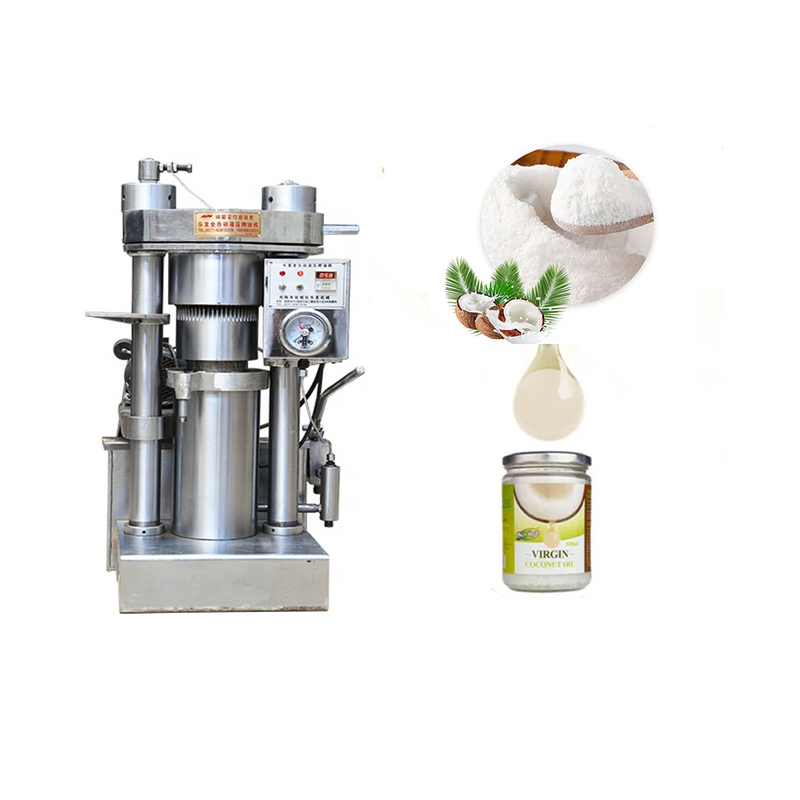

Operating priciple of hydraulic oil press machine:
The working principle is that the when the oil material is put into the assembly of the press boring, then it being driven up by the oil cylinder piston, oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.
Advantages:
1. Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2. High oil yield, pure oil, no filtration.
3. The oil is squeezed once, the speed is fast, and the labor intensity is small.
4. It has high pressure, the pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Seeds application of hydraulic oil making machine:
1. It is suitable for direct processing of rape, peanut, sunflower seed, sesame,
palm,almond,perilla,olive and other oil crops.
2. If you want to process other special raw material, please cantact us to ensure.
Technical parameters of oil presser:
| Model | 6YL-185 | 6YL-250 | 6YL-270 | 6YL-300 | 6YL-335 |
| Weight | 550kg | 1060kg | 1230kg | 1600kg | 1750kg |
| vacuum Power | 1.1kw | 1.1kw | 2.2kw | 2.2kw | 2.2kw |
| 3phase | 2.2kw | 2.2kw | 4.0kw | 4.8kw | 4.8kw |
| Working pressure | 60MPa | 60MPa | 60MPa | 60MPa | 60MPa |
| Capacity | 4kg/batch | 11kg/batch | 13.5kg/batch | 16kg/batch | 20kg/batch |
| Dimension(mm) |
600*880*1150 |
710*950*1560
|
750*1010*1640
|
1000*1100*1660
|
1100*1240*1730
|
Show details
Packing and shipping
We use strong wooden case to ensure the safety of your goods in transit.
Our service
We have professional engineers to provide you with the best service.
1.Professional engineer
Our professional engineer will test the machine in each step.
2.Specialist manufacture
Every machine carefully adjusted before shipment.
3.After-service
The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
All the goods will be inspected by our own quality inspection department, through the advanced machine to make sure no problem.
Company information
Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.
