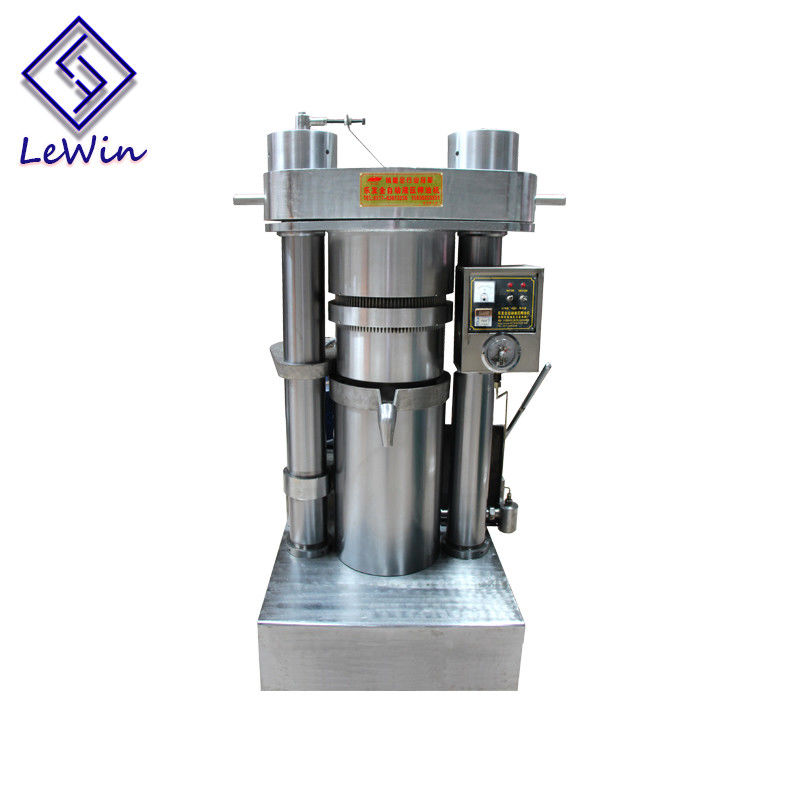

Multifunction full automatic hydraulic oil presser with high oil yield

Multifunction full automatic hydraulic oil presser with high oil yield

cold press expeller machine

hydraulic oil extractor

Place of Origin:

Nangyang,China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY-230(A)

Contact Us

Request A Quote
Product Details
Product Name:
Multifunction Full Automatic Hydraulic Oil Presser With High Oil Yield
Model:
6YY-230(A)
Capacity:
8.5 Kg/ Batch
Weight:
924 Kg
Dimension:
670*950*1460mm
Power:
2.2kw /1.1kw
Working Pressure:
60MPa
Oil Cake Diameter:
230mm
HS Code:
8479200000
Raw Material:
Sesame Olive Avocado Inca Peanut
After-sales Service Provided:
Video Technical Support, Online Support, Field Installation, Free Spare Parts
Waranty:
12 Month
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with film / customized
Delivery Time
5-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 sets per month
Product Description

Product Description

Multifunction full automatic hydraulic oil presser with high oil yield

Hydraulic oil press is the most advanced equipment and it is a best choice instead of hand-operated workers currently. It is the easiest machine for people to operate and replace wearing parts least with the highest oil yielding rate among all the range of machines.

1. It can save labor and save cost: only one or two people can operat 4-6 sets machines.

2. Our hydraulic oil press machine adopt physical method to press oil to keep the essence not destroyed.

3. 60Mpa max working pressure offers stronger power to press, increase the oil yield.

4.Specially heating treatment for the steel, makes the machine stronger to bear the high working pressure.

Multifunction full automatic hydraulic oil presser with high oil yield 0
Our oil press has the advantages of high pressure, high oil yield, compact structure and controlled heating. Besides, it is not only highly efficient and energy saving, but also environmental friendly and clean. It is easy and safe to operate the oil press, which dramatically reduces labor intensity.

Multifunction full automatic hydraulic oil presser with high oil yield 1



Parameter:

1.  we have different model for you to choose.

2. If you hav other needs, we can also customized the model for you.

Model 6YY-185 6YY-230(A) 6YY-230(B) 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/

batch)

4 8.5 9.5 11 13.5 16 20 23

Weight

(kg)

590 924 970 1070 1230 1600 1750 2350
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa

Power(

single/

3phase)

2.2/1.1kw 2.2/1.1kw 2.2/1.1kw 2.2/1.1kw 4.0/2.2kw 4.8/2.2kw 4.8/2.2kw 5.0/3.0kw

Dimension

(mm)

600*880*

1150

670*950*

1460

670*950*

1560

710*950*

1560

750*1010*

1660

1000*1100*

1160

1100*1240*

1730

1160*1200*

1810

Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil rate ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2





This hydraulic oil press  machine, can squeeze more than 30 kinds of oil crops such as peanut, flax, sesame, rapeseed, oil sunflower, cottonseed, olive, etc



Multifunction full automatic hydraulic oil presser with high oil yield 2



Sesame oil extraction process:

Multifunction full automatic hydraulic oil presser with high oil yield 3

Detailed Images


1. independent press, visible health.
2 oil easily, get a key.
3 high oil yield, oil level beyond the industry.
4 choice of raw materials, rapid and convenient procurement.
5 oil from fresh nutrition, safety and health.
6 full stainless steel appearance, solid and durable.
7 pressing the pressing rod is easy to remove, easy to clean

Multifunction full automatic hydraulic oil presser with high oil yield 4



1.Part name: Hydraulic oil tank
Brand: Lewin
The core part of machine which offers the power for the machine

Multifunction full automatic hydraulic oil presser with high oil yield 5





2. Part name:Pressing kettle

Brand: Lewin
Perfect oil line, high quality steel and many times heating treament make it stronger enough.
Multifunction full automatic hydraulic oil presser with high oil yield 6



3. Part name: Pressure release valve

Brand: Lewin
Control the suitble working pressure, over pressure will release automaticlly
Multifunction full automatic hydraulic oil presser with high oil yield 7





4.Part name: Larger screw
Brand: Lewin
High quality steel, big hardness, longer use life make the working with very high efficiency

Multifunction full automatic hydraulic oil presser with high oil yield 8



Our service

After service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee perio
d.



Our company

Since 1998. Henan Lewin Industrial Development Co.,Ltd was found offcially registered under Henan Companies.

Our main products are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machines

Multifunction full automatic hydraulic oil presser with high oil yield 9



Packing & Delivery

Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

Generally 7-10 working days after receipt the deposit.

Multifunction full automatic hydraulic oil presser with high oil yield 10



FAQ



Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



Q: I don't know how to use the oil press machine.

A: Don't worry, we will send you Manual for oil press machine. We also provide the operation videos of oil press machine.



Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. Best quality is our principle all the time.



Q: Do you offer customized service?
A: Yes, we could offer customized service.



Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
