Place of Origin:
Nangyang,China
Brand Name:
Lewin
Certification:
ISO CE
Model Number:
6YY-230(A)
Contact Us

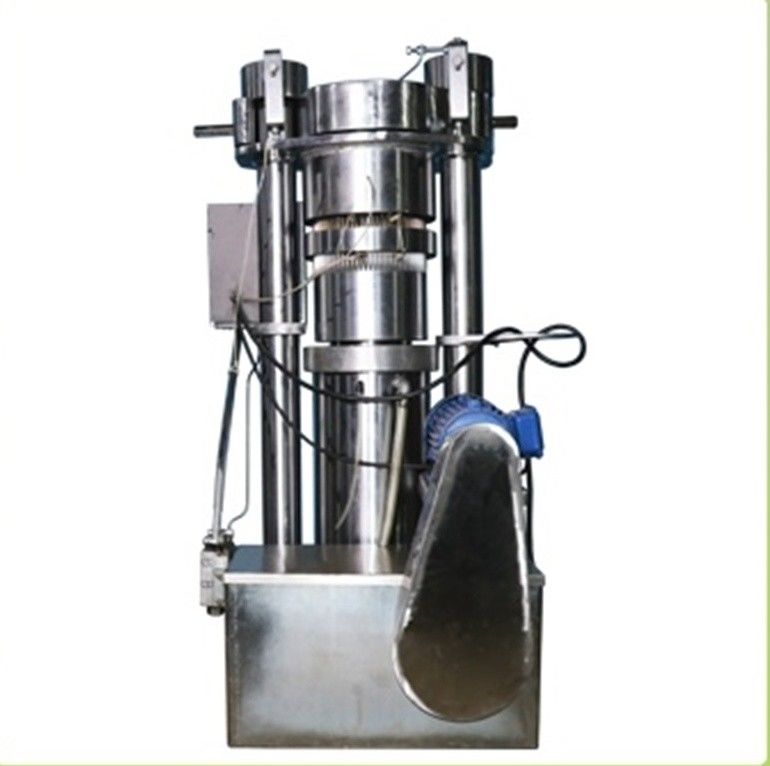

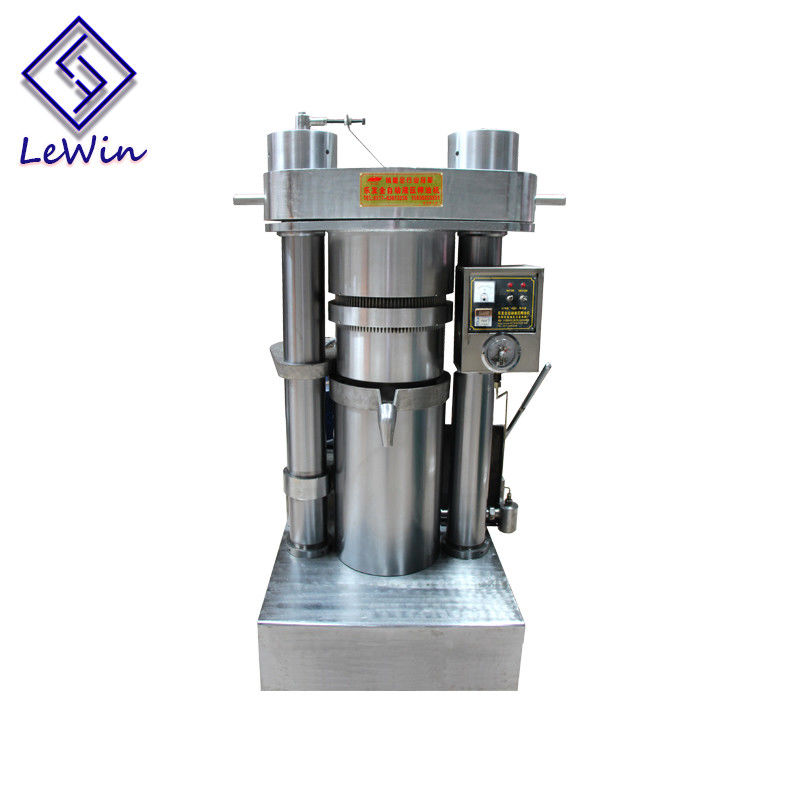

Alloy hydraulic oil making machine with factory sale for sesame olive
Our oil press has the advantages of high pressure, high oil yield, compact structure and controlled heating. Besides, it is not only highly efficient and energy saving, but also environmental friendly and clean. It is easy and safe to operate the oil press, which dramatically reduces labor intensity.
Our oil presser machine has the following characteristics:
1. It can save labor and save cost: only one or two people can operate 4-6 sets machines.
2. Our hydraulic oil press machine adopt physical method to press oil to keep the essence not destroyed.
3. 60Mpa max working pressure offers stronger power to press, increase the oil yield.
4.Specially heating treatment for the steel, makes the machine stronger to bear the high working pressure.
1. High oil yield, 30% higher oil yield than old equipment, and considerable economic net profit.
2. Labor saving, the same output can save labor, one to two people can produce.
3. Use Wide: multi-purpose machine, can squeeze more than 30 kinds of oil crops such as peanut, flax, sesame, rapeseed, oil sunflower, cottonseed, soybean, etc
4. we have different model for you to choose.
5. If you hav other needs, we can also customized the model for you.
| Model | 6YY-185 | 6YY-230(A) | 6YY-230(B) | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|
Capacity (kg/ batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
|
Weight (kg) |
590 | 924 | 970 | 1070 | 1230 | 1600 | 1750 | 2350 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
|
Power( single/ 3phase) |
2.2/1.1kw | 2.2/1.1kw | 2.2/1.1kw | 2.2/1.1kw | 4.0/2.2kw | 4.8/2.2kw | 4.8/2.2kw | 5.0/3.0kw |
|
Dimension (mm) |
600*880* 1150 |
670*950* 1460 |
670*950* 1560 |
710*950* 1560 |
750*1010* 1660 |
1000*1100* 1160 |
1100*1240* 1730 |
1160*1200* 1810 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil rate | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
This hydraulic oil press machine, can squeeze more than 30 kinds of oil crops such as peanut, flax, sesame, rapeseed, oil sunflower, cottonseed, olive, etc
Sesame oil extraction process:
The machine has the following characteristics:
1. The vacuum filter residue ensures the purity of the oil and meets the sanitary quarantine standards.
2. The concept is novel and electromechanical, the design is scientific, the structure is reasonable, the operation is simple, the safety is stable, and the fully automated device is used.
3. It takes only a few minutes from the feeding to the finished product
1.Part name: Hydraulic oil tank
Brand: Lewin
The core part of machine which offers the power for the machine
4.Part name: Larger screw
Brand: Lewin
High quality steel, big hardness, longer use life make the working with very high efficiency
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
Since 1998. Henan Lewin Industrial Development Co.,Ltd was found offcially registered under Henan Companies.
Our main products are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machines
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
Generally 7-10 working days after receipt the deposit.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q: I don't know how to use the oil press machine.
A: Don't worry, we will send you Manual for oil press machine. We also provide the operation videos of oil press machine.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. Best quality is our principle all the time.
Q: Do you offer customized service?
A: Yes, we could offer customized service.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
