Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification

cold press expeller machine

electric oil press machine

Place of Origin:

Henan , China

Brand Name:

Lewin

Certification:

ISO CE

Model Number:

6YY- 185

Contact Us

Request A Quote
Product Details
Name:
Hydraulic Oil Processing Machine
Model:
6YY - 185
Keyword:
Soybean Oil Press Machine
Raw Material:
Kinds Of Seeds
Usage:
Cold & Hot Pressing
Power:
2.2 Kw / 1.1 Kw
Pressure:
60 MPa
Voltage:
380 V
HS Code:
8479200000
Oil Rate:
98%
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case package / Customized
Delivery Time
7-10 working days
Payment Terms
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability
100 sets per month
Product Description

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification


I. Production intruduction

1. This hydraulic oil press machine adopts automatic control system, hydaulic pressure control system and temperature control system.

2. This machine can work with many kinds of oil seeds well.

3. This machine can work continuously for 24 hours. It can squeeze 4kilogram per batch, the perssing time is 8-15 minutes.

4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 0



Appliction range

This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 1

Work principle:

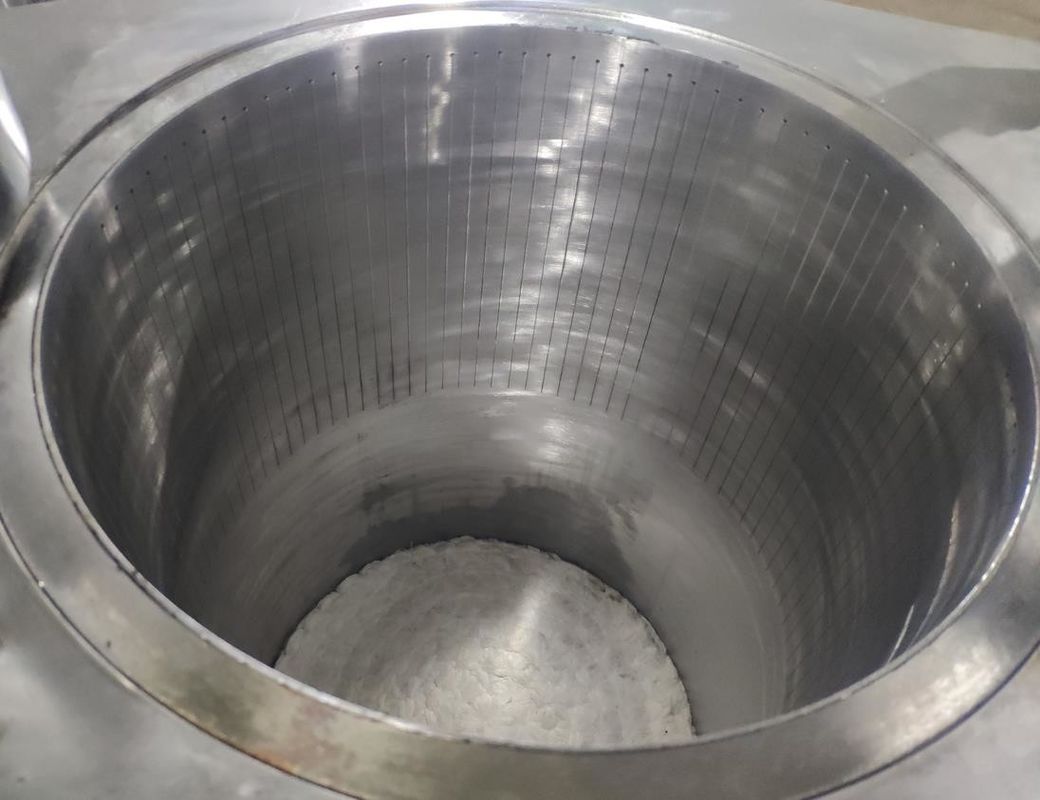

This machine is powered by the hydraulic tank that pushs the piston up to squeeze the raw material in the press kettle.

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 2



Parameter:

Model 6YY-185 6YY-230A 6YY-230B 6YY-250 6YY-270 6YY-300 6YY-335 6YY-355

Capacity

(kg/batch)

4 8.5 9.5 11 13.5 16 20 23
Working pressure 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa 60Mpa
Weight (kg) 590 924 950 1070 1230 1600 1750 2350

Power

(3 /single phase)

1.1/2.2 kw 1.1/2.2 kw 1.1 /2.2kw 1.1/2.2 kw 2.2/4.0 kw 2.2/4.8 kw 2.2/4.8 kw 3.0/5.0 kw

Package

Size(m)

0.78*1*1.58 0.78*1*1.58 0.78*1*1.68 0.78*1.04*1.71 0.82*1.081*1.75 0.94*1.14*1.81 0.94*1.16*1.8 1.04*1.24*1.92

Capacity

(Kg/24h)

190-260 500-650 600-750 650-780 800-1000 950-1200 1100-1400 1500-2000
Oil cake diameter 185mm 230mm 230mm 250mm 270mm 300mm 335mm 355mm
Residual oil ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%



















































Workflow:



Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 3


II. Our advantages

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 4

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 5

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 6


III. Our service

1. Pre-sale service:

We offer different solution for different request and material.

Factory view accepted.

Test machine accepted.

7x24 hours online service.

2. After sale service:

1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 7


IV. Packing & Delivery



Packing:

1. Standard export wooden case package.

2. Customized.

Delivery:

We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.

Fully Automatic AvocadoIndustrial Oil Press Machine ISO / CE Certification 8
