Commercial Hydraulic Oil Press Machine 220V / 380V With High Oil Yield
I. Production decription
1. This hydraulic oil press machine is the most advanced equipment and takes up less area. Its material mainly electroplate.
2. It is economic and environmental protection, stable and durable. This machine adopts automatic control system, hydraulic pressure control system and temperature control system.
3. This machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8 minutes.
4. The pressure of our machine is 60Mpa, higher than other machine(the normal is 45Mpa to 55Mpa), provide higher oil yield.
Parameter:
Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
---|---|---|---|---|---|---|---|---|
Capacity (kg/batch) |
4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
Power (3 /single phase) |
1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
Package Size(m) |
0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
Capacity (Kg/24h) |
190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Application:
This machine can cold or hot press various of oil seeds, includes sesame, peanut, castor, walnut, camellia, olive, palm, avocado, sunflower, rapeseed, ect.
Workflow:

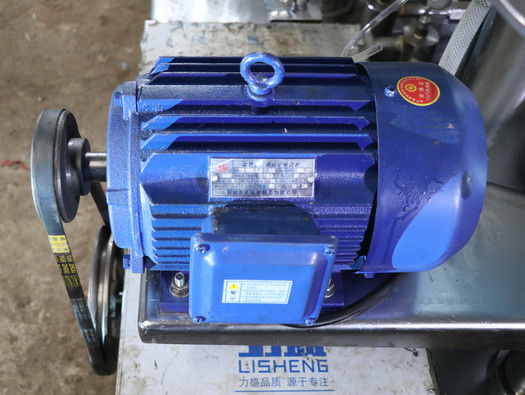

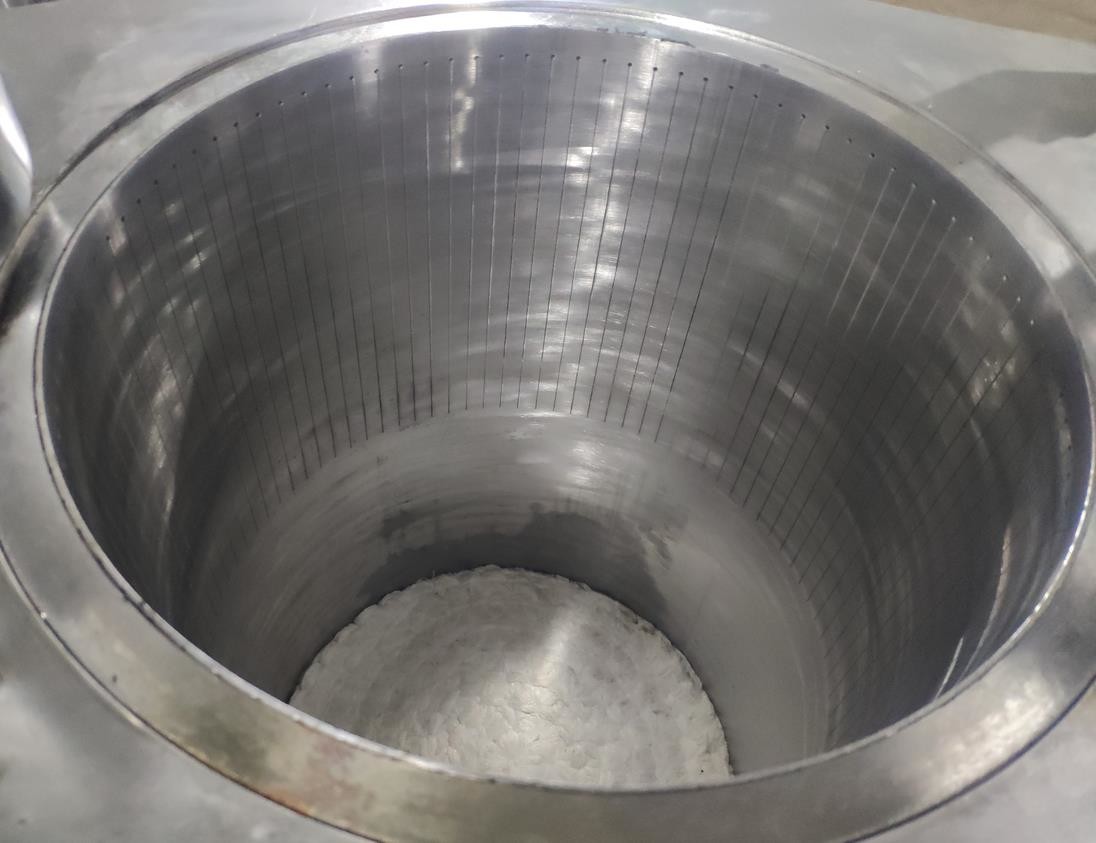

II. Detail show
Different side display:
III. Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after receipt the deposit. Also we can offer other shipping method, such as by air, by express, by train and so on. We have many shipping agent to meet different request for the shipping.
IV. Our service
1. Pre-sale service: we offer different solution for different request and material.
factory view accepted.
test machine accepted.
7x24 hours online service.
2. After sale service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.
3). During the quality guarantee period, if it is the quality problem (except easily damaged parts), the cost for maintenance and replace will be borne by sellers.
4). During guarantee period, the seller will provide service of with compensation as follows:
(1)The damage caused by person and force majeure;
(2)The damage caused by improper operating;
(3)The damage caused by reforming, decomposing assembling.
5). Paid service will be provided for the long term after guarantee period.
