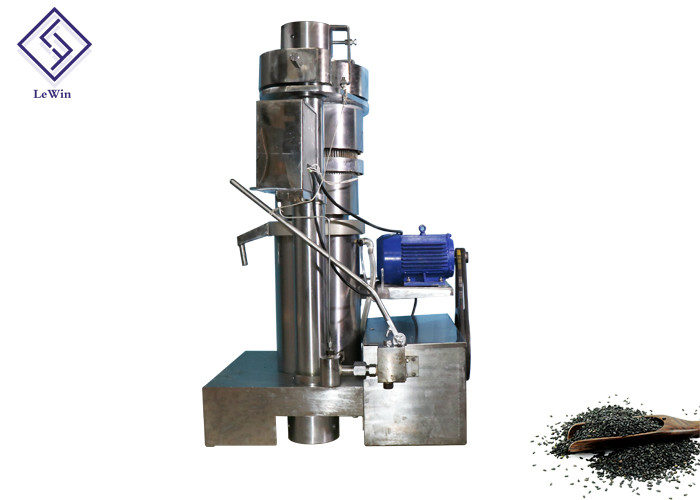

Alloy Commercial Oil Press Machine , Hydraulic Olive Oil Processing Machine
This hydraulic oil press machine mainly has three major components:
1, the main part 2, hydraulic system 3, electrical system
It is now described as follows:
1, the host part:It consists of a base, a cylinder, a piston, an oil pan, a filling barrel, an upper top, a column, a nut and the like. It is the main body of the whole machine, in which the oil crop is placed in the filling barrel, and the force of the cylinder piston assembly is upward. Advance, squeeze the oil crop to make it oil, the oil flows out from the oil-filled joint of the filling barrel, and passes through the oil pan to the oil storage barrel.
2. Hydraulic system:This is the power source for the local press oil crop. It has drive shaft, turbine, worm, low pressure gear pump, high pressure pump, low pressure relief valve, ultra high pressure safety valve, pressure relief valve, precision seamless steel pipe, hydraulic pipe joint, etc. The composition of the parts. This machine adopts the world's advanced hydraulic pumping station. The South Korea three-piston optimized pumping station is faster than the domestic two-piston pump, with high pressure and high oil temperature. No cooling device is installed above the oil temperature of 65 degrees. continue working. This system is a guarantee of high oil yield of the machine.
3. Electrical system:The electrical system is the advanced place of the machine. All of them are controlled by automation, easy to operate, no special requirements for operators, easy to learn, especially suitable for farmers. The system uses advanced electrical appliances, automatic control system, is composed of motor, voltmeter, temperature control adjustment table, pressure gauge, power insurance and other components.
Four orientations of the machine
1. Characteride by simple design, easy to operate and maintenance.
2.High productivity,energy saving and labour saving.
Main Paramater:
Hydraulic oil press machine 6YY-185 :
| Model |
Capacity
(kg/batch)
|
Weight(kg) |
Working pressure |
power(kw) |
Dimension(mm) |
| YY-185 |
4 |
590 |
60MPa |
2.2/1.1 |
600*880*1150 |
Detailed Images
Innovative concept, electromechanical integration The design is scientific, the structure is reasonable, the operation is simple, the safety is stable, and the fully automated device is used. It takes only a few minutes from the feeding to the finished product. Excellent material, precision It is made of high carbon steel, high frequency quenching and heat treatment. It has high hardness, high strength and good wear resistance. It is suitable for high temperature and high pressure continuous operation and improves the service life of oil press. The use time can reach several decades long.
Hydraulic oil making machine main parts:
1.Part name: Hydraulic oil tank
The core part of machine which offers the power for the machine.
2.Part name:Pressing kettle
Perfect oil line, high quality steel and many times heating treament make it stronger enough.
3. Part name: Wroking table
New designed table to put the filter pad, make the pressing more convenience.
4. Part name: Pressure release valve
Control the suitble working pressure, over pressure will release automaticlly.
Oil rate comparison table:
Our hydraulic oil press machine have perfect oil line, and the oil is better.
Our Warehouse
We have our own factory and production team
Packing & Delivery
Packing:
1. we use Standard export wooden case package.
2. If the customer has other needs, we can customize the box according to the customer's needs.
